Brand：Factory
Model：RVC-1000/D

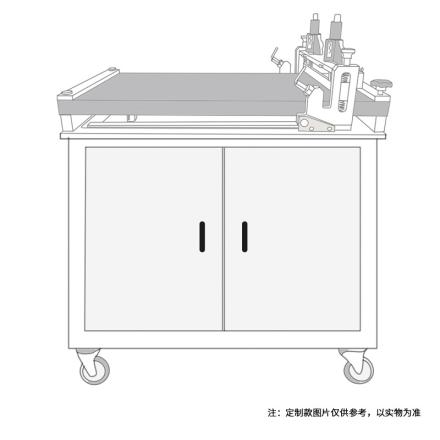

Name：Drawdown Bar & blade Vacuum chuck coater (floor type)
Specifications
| Coating Method | Bar + Drawdown blade |
| Coating Speed | 1~ 300Mm/s stepless speed regulation (can be customized) |
| Substrate clamping method | Vacuum chuck + fixture |
| Coating table material | SUS630, abrasive steel |
| Coating table size | 1440*1030mm |
| Effective coating Area | 1200 * 1000Mm (can be customized) |
| Meyer rod coating thickness Range | Different bar numbers have different thicknesses, with high-precision imported bars |
| Meyer rod coating Accuracy | ±0.005mm |
| Drawdown blade Coating thickness range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Drawdown blade material | Die steel |
| Drawdown blade application width | 1000mm |
| Drawdown blade Spreader Accuracy | ±0.005mm |
| Vacuum chuck size | 1280 * 960Mm (can be customized) |
| Vacuum Aperture | Φ0.8-1.2mm |
| Vacuum hole pitch | 20*20mm |
| Pumping Speed | 5.4m3/h |
| Ultimate Vacuum | 50KPa |
| Vacuum Pump Power | 180W |
| Vacuum pump Weight | 7.1kg |
| Power | 600w |
| Operating language | Chinese (can be customized in English) |
| Display | Color LCD touch screen |
| Host Power Supply | 100V~220V/50~60HZ |
| Dimension | 1460 * 1140 * 940Mm (subject to the actual product) |
| structural composition | It is welded by square tube + iron plate, and SUS304 is used for the outer shield. |
| rack Countertop | Material: 45 #surface chrome plating |
Packing list
After-sales instructions
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/49355/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
