Specifications

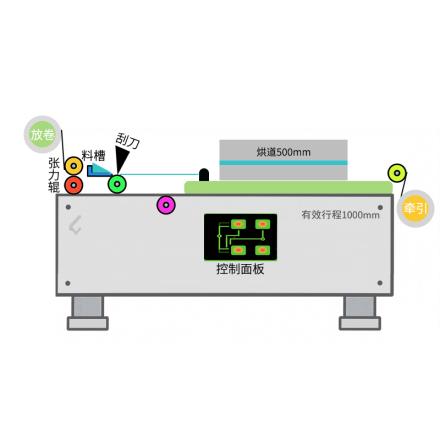

| process | Roll → Scratch → Drying → Traction |
| Coating method | scraping |
| Effective application width | 100~300Mm (width adjustable) |
| Coating thickness | 0-5000A (thickness adjustable) |
| Spreader area | Width 300 * Length 1000mm |
| wide range of materials | 100-300mm |
| Drawdown blade Accuracy | ±0.003mm |
| Thousand head resolution | 0.001mm |
| Tension control range | 1-50N |
| Motor type | Servo motor |
| unwinding method | Roll up or down, maximum roll diameter 200mm |
| tension control | Tension can be set, PLC program control, forming a closed-loop tension control |
| unwind drive | Magnetic particle control |
| guide roller | Hard anodic oxidation treatment on roller surface |
| roll over | φ 40mm × 300mm, aluminum roller surface anode treatment, mirror polishing treatment |
| Mechanical speed | Max.5m/min; production speed depends on actual Spreader process, material and degree of drying |
| Oven structure style | Electric heating tube |
| Oven length | A total of 1 oven; oven length 500mm/section, a total of 500mm |
| Oven temperature | Temperature range: 40 ℃~ 150 ℃ inside the box (Environmental temperature 20 ℃), temperature Accuracy: Temperature control Accuracy +/- 2 ℃ |
| Box material | The insulation layer is rock wool board/silicic acid board |
| Electric heating part | Electric heating, 5kw/section, total 5kw, infrared heating |
| temperature control | Independent PID control, set on the operation screen. |
| Hot air circulation system | Single layer of circulating air duct, frequency conversion control, air Volume adjustment, frequency conversion control and pipeline air valve adjustment air Volume equilibrating |
| Control mode | Equipment reference speed |
| operation button | Touch screen button switch control and emergency stop, start, stop, deviation correction manual/automatic press |
| operation | Oven clamshell type, by opening the oven door, manually piercing the foil. |
| foil | Copper foil, aluminum foil and PET film (material thickness 6-30um) |
| slurry | Battery slurry, electrolysis fluid (viscosity range < 80000cps) |
| Substrate Weight | Max.300Kg |
| Device size | About 2000mm × width 600mm × height 800mm (subject to actual customization) |
Packing list
machine x1, manual x1, certificate x1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/49357/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
