HuiNuo TM 2200/03 drawdown blade vacuum adsorption small coater effective Spreader area 400 * 400mm
SEDrawdown blade + vacuum adsorption function, clamshell type drawdown blade design, easy and fast cleaning, corrosion resistance and wear resistance High Hardness alloy steel drawdown blade material, effective Spreader area 400 * 400mm, suitable for high viscosity sample scraping.
$4579.00/set
PromotionLoading...
Coupon
Model：
TM2200/03
Similar products
-
HuiNuo TM 2200/02 drawdown blade Vacuum adsorption Film Applicator Adjustable bracket height, effective Spreader area 400 * 400mm$ 7066.00SE -
TM2200pro High-precision experimental coater with Drawdown Blade and Vacuum bed$ 3957.00SE -
HUINUO TM2200Pro/1 Vacuum adsorption scraper Automatic Film Applicator Experiment High speed coater$ 5667.00SE -
HuiNuo TM2200 Drawdown blade Vacuum chuck Lab Film Applicator Flat coater$ 3802.00SE -
China TBJ-X1-DJ4 Removable Drawdown blade Vacuum chuck Film Applicator Laboratory Draw-Down Applicator$ 3024.00SE
HuiNuo TM2200/03 Automatic Film ApplicatorSPEC
HuiNuo TM2200/03 Automatic Film ApplicatorDetails
HuiNuo TM2200/03 Automatic Film ApplicatorPacking list
- SKU
- NB004938
- Coating method
- Drawdown blade

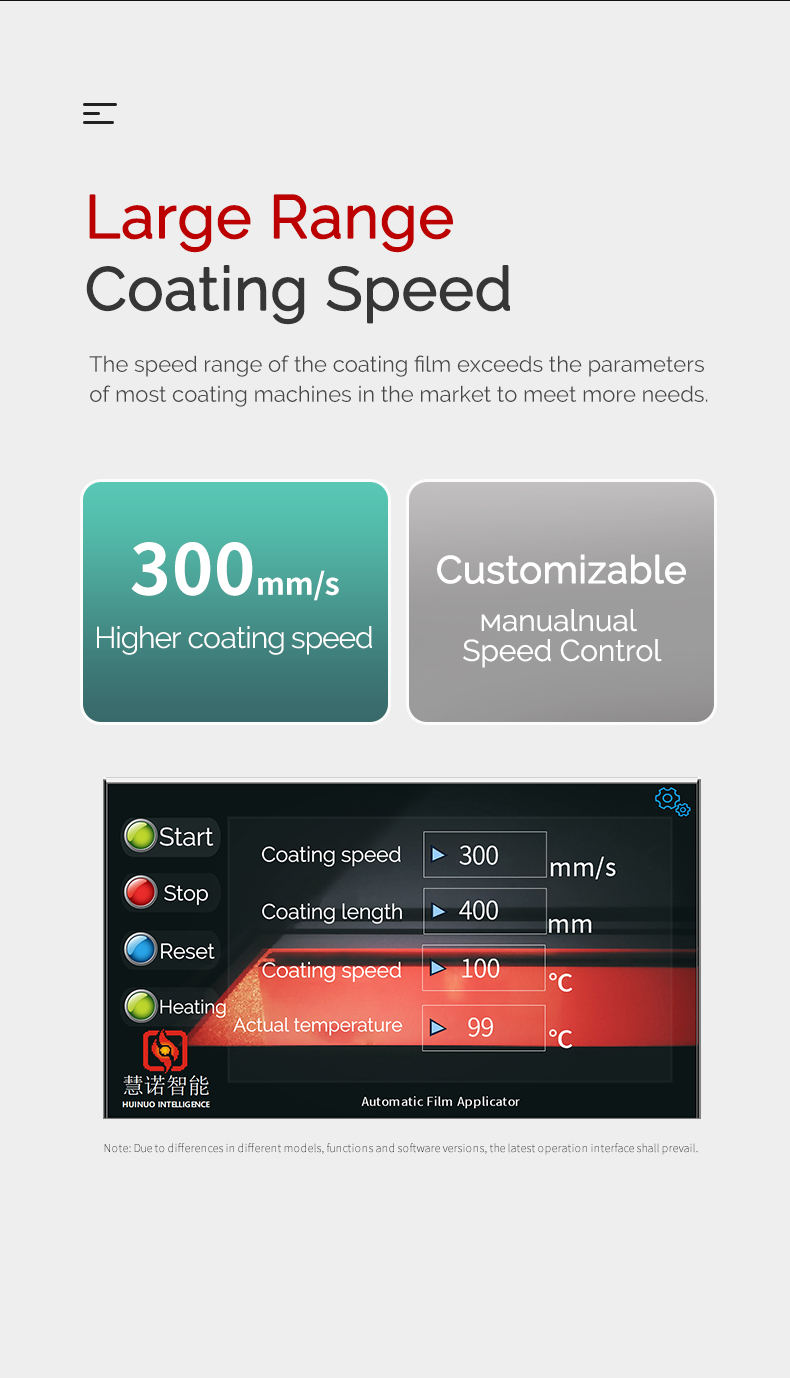

- Coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)

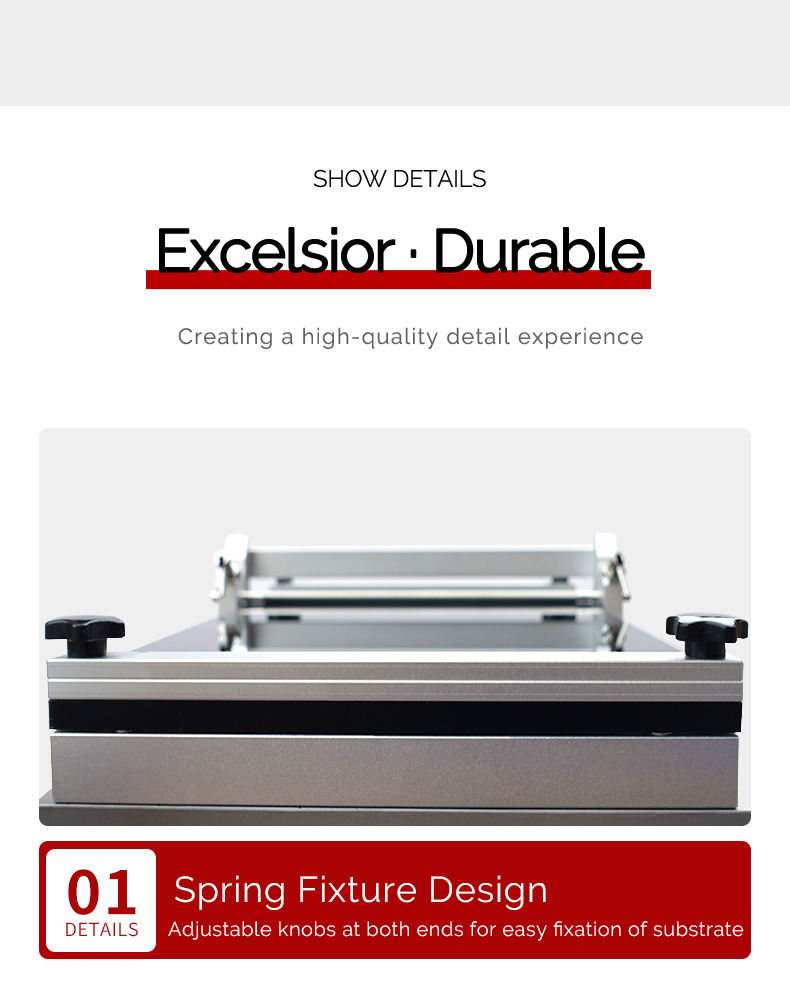

- Substrate clamping method
- Vacuum adsorption + fixture

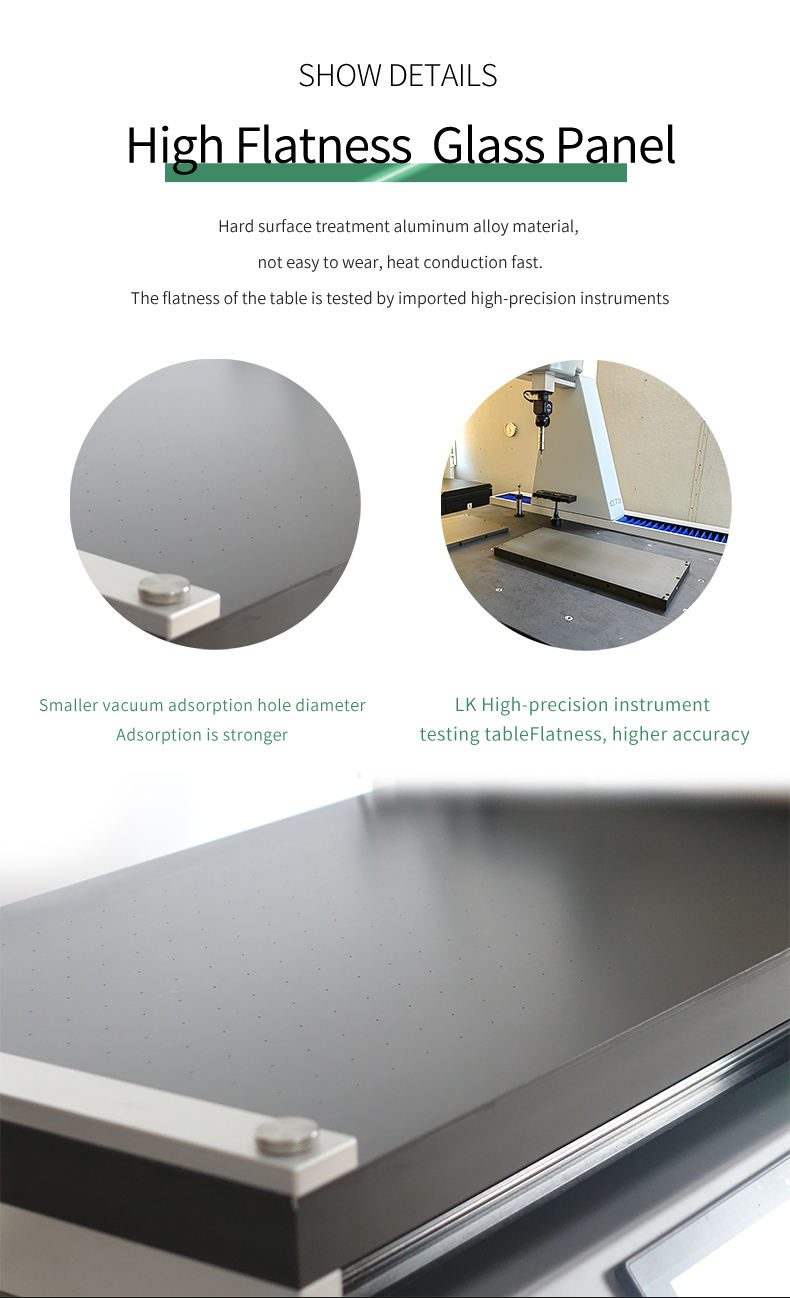

- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 640*430mm
- Effective coating Area
- 400 * 400Mm (can be customized)

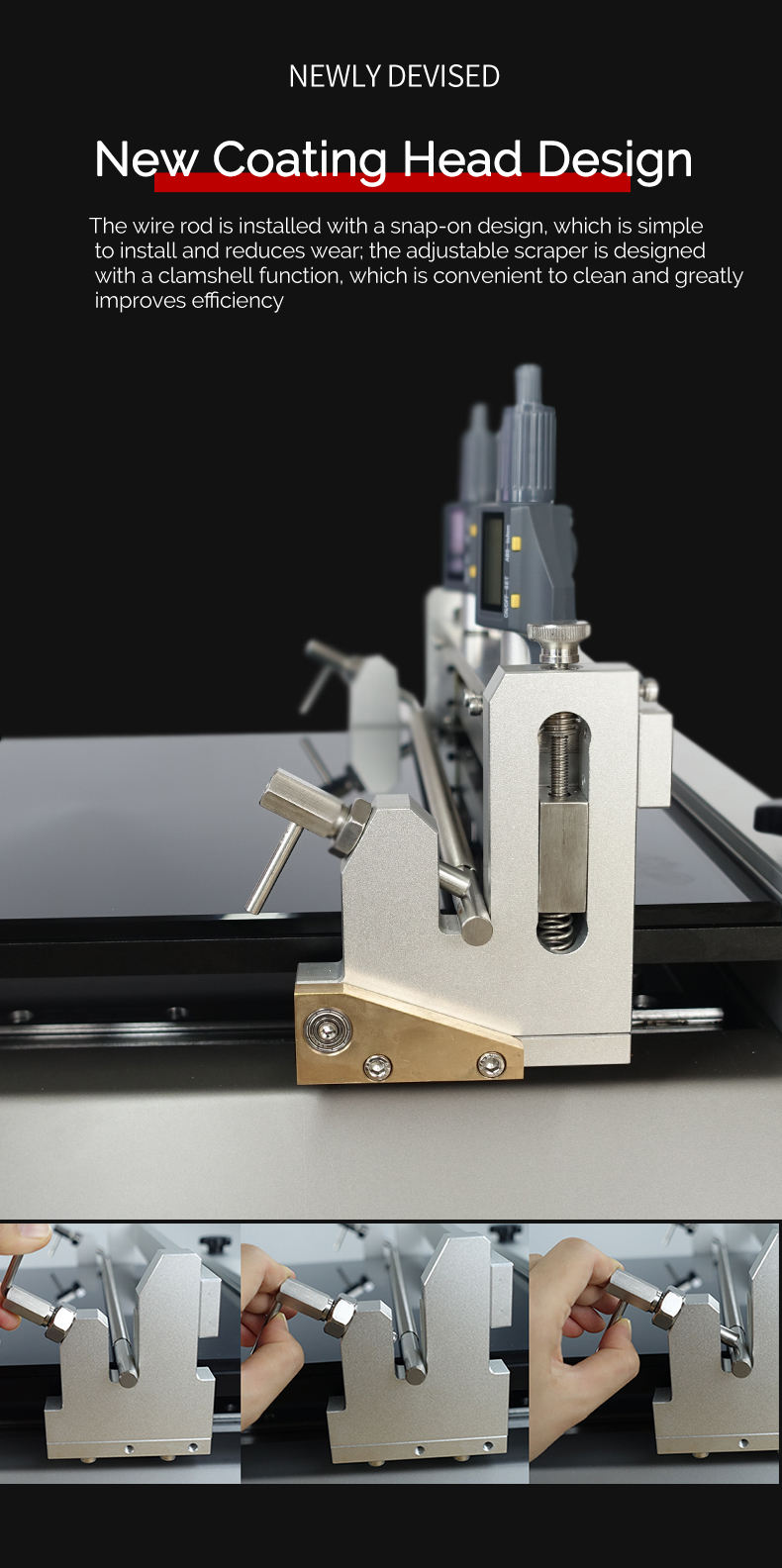

- Drawdown blade thickness range
- 0~10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 400mm
- Drawdown blade Accuracy
- ±0.003mm
- Vacuum Area
- 480 * 360Mm (can be customized)
- vacuum aperture
- Φ0.8mm
- Vacuum hole spacing
- 20*20mm
- Pumping Speed
- 5.4m3/h
- Ultimate Vacuum
- 50KPa
- Vacuum Pump Power
- 180W
- Vacuum pump Weight
- 7.1kg
- Operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 100V~220V/50~60HZ
- Power
- 400w
- Dimension
- 660*540*430mm

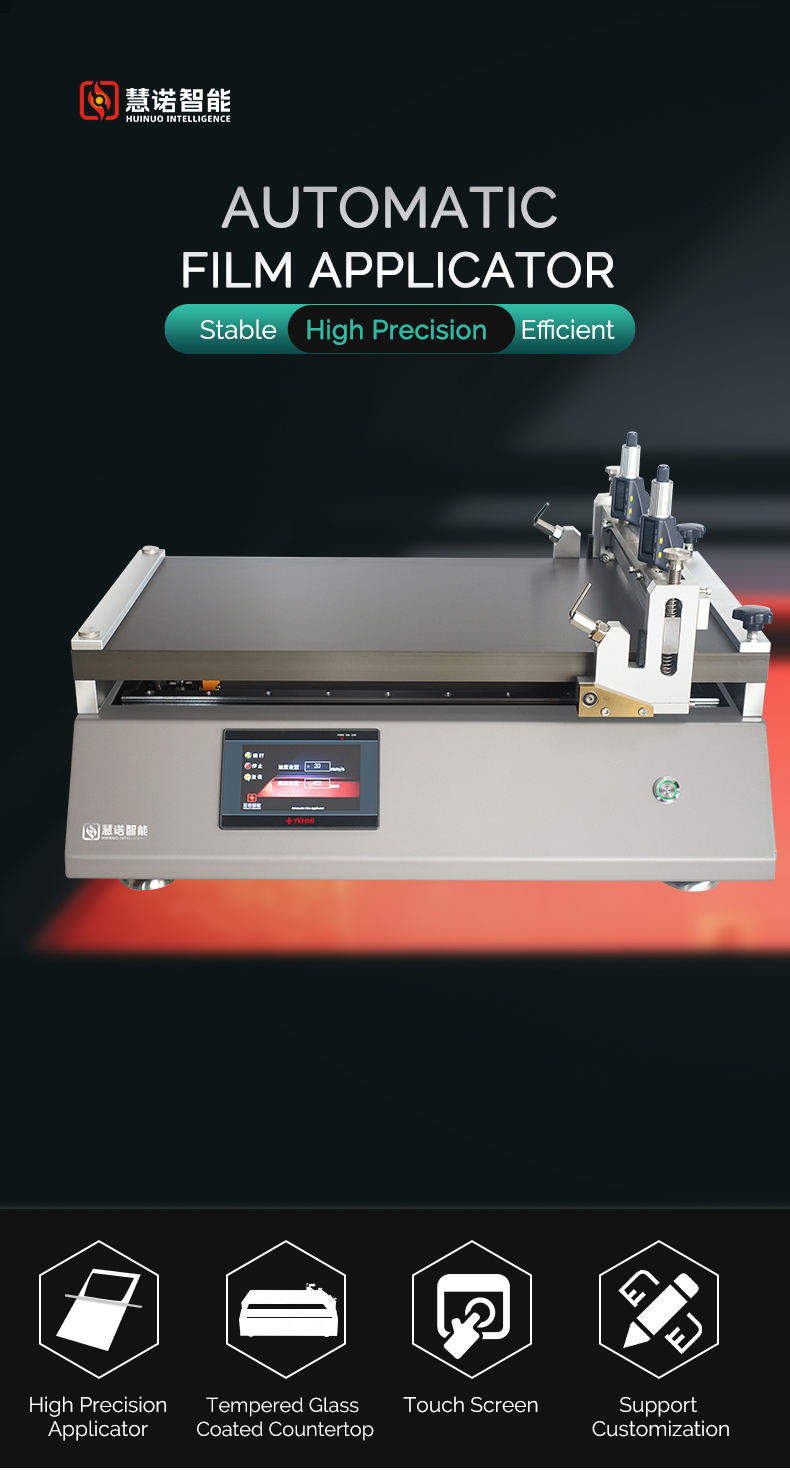

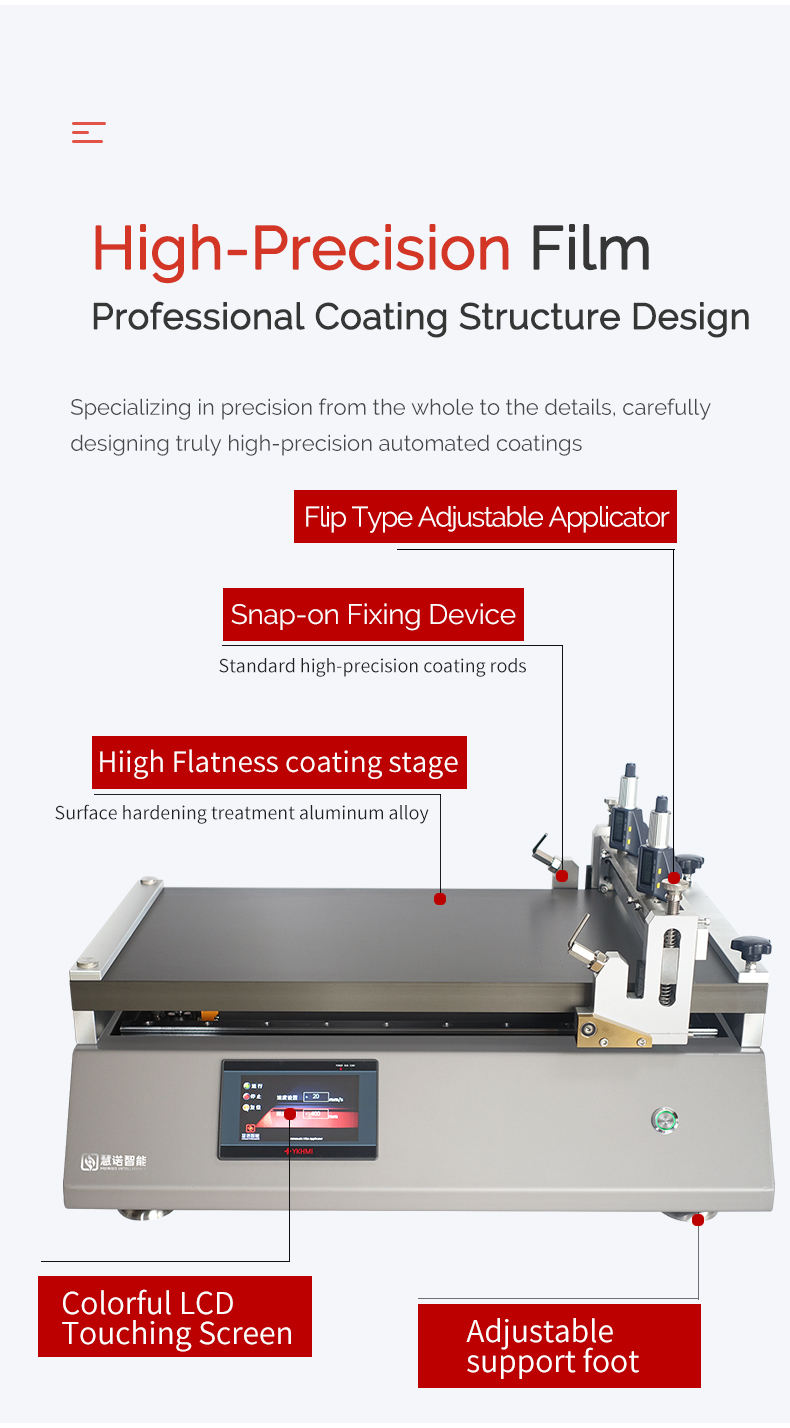

TM2200/03
Automatic Film Applicator
Drawdown blade + vacuum adsorption function, clamshell type drawdown blade design, easy and fast cleaning, corrosion resistance and wear resistance High Hardness alloy steel drawdown blade material, effective Spreader area 400 * 400mm, suitable for high viscosity sample scraping.
