KONYO COLOR NBC-UV30002 UV solidification machine, irradiation area 300 * 300mm

300Mm mesh belt with 300 * 300mm irradiation area can meet multi-specification curing needs; 2kw mercury lamp with 365nm Optical inspection band to achieve instant curing, irradiation distance 100-300mm, feed height 0-90mm.
$1314.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con

KONYO COLOR NBC-UV30002 UV light curing machineSPEC

KONYO COLOR NBC-UV30002 UV light curing machineDetails

KONYO COLOR NBC-UV30002 UV light curing machinePacking list

SKU
NB049381
Lamp type
mercury lamp
Number of lamps
2Kw lamp x1
Machine power
2kw
transfer speed
1~ 5M/min adjustable
irradiation distance
100~300mm
Network bandwidth
300mm
Irradiated area
300*300mm
Feed height
0~90Mm adjustable
curing speed
Instant curing
Optical inspection band
365nm
Power Supply
220V
Dimensions
1000*510*910mm
NBC-UV30002
UV light curing machine
300Mm mesh belt with 300 * 300mm irradiation area can meet multi-specification curing needs; 2kw mercury lamp with 365nm Optical inspection band to achieve instant curing, irradiation distance 100-300mm, feed height 0-90mm.

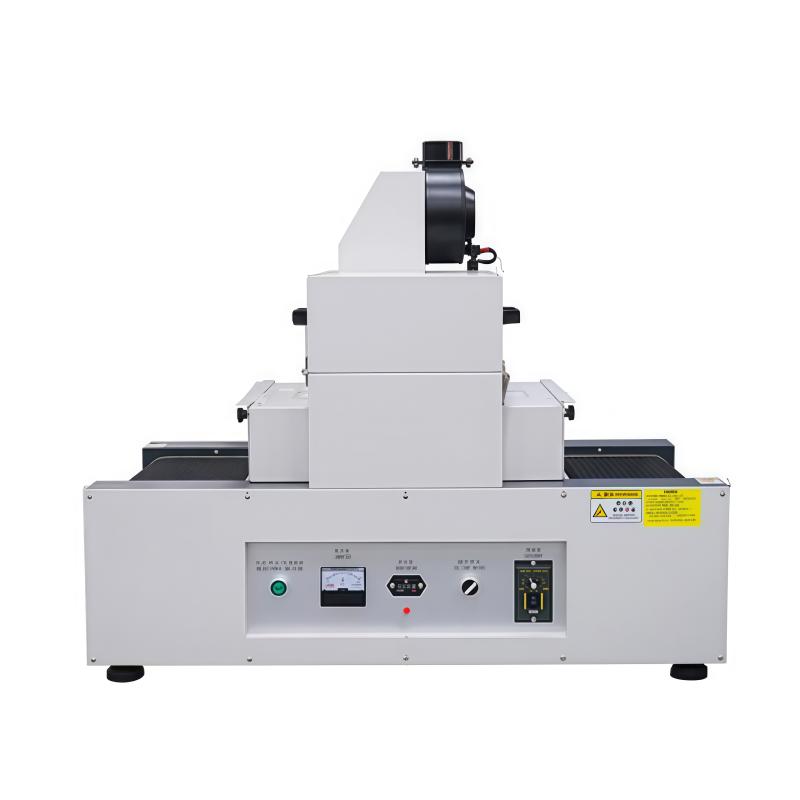

KONYO COLOR NBC-UV30002 UV solidification machine, irradiation area 300 * 300mm Picture

Introduction

KONYO COLOR NBC - UV30002 UV light curing machine is a professional equipment designed for efficient curing needs. It is powered by a 220V power supply, with an overall size of 1000*510*910mm, a compact overall structure, and a reasonable footprint. The light-curing machine uses a mercury lamp as the light source and is equipped with a 2 kW lamp with a Total power of 2 kW to provide sufficient energy for the curing process. Its network width is 300mm, and the irradiation area is 300*300mm, which can meet the curing operation of various specifications of items.

Features

Efficient curing: 2kw mercury lamp + 365nm wavelength band, instant curing, improve production efficiency.

Adjustable parameters: conveying speed 1-5m/min, irradiation distance 100-300mm, feeding height 0-90mm can be adjusted, suitable for different workpieces.

Stable output: 2kw power is continuously stable to ensure the consistency of curing quality.

Compact structure: 300mm mesh belt + 300*300mm irradiation area, suitable for assembly line installation.

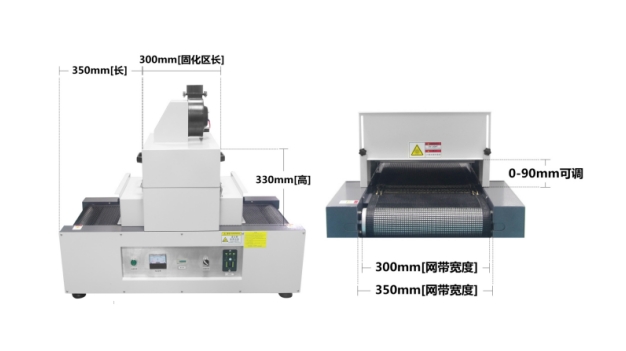

Product Dimension Drawing

KONYO COLOR NBC-UV30002 UV light curing machine details Figure 1
