DDKSIC PCD10 Portable multiparameter analyzer (color screen)

SE
PCD10, conductivity module: 1 point calibrate, automatically identify calibrated solution, support electrode calibration, standard solution calibration, can be switched to TDS/salinity/resistivity, reference temperature can be set according to the sample solution.
$915.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI

DDKSIC PCD10 Portable multiparameter analyzer (color screen)SPEC

DDKSIC PCD10 Portable multiparameter analyzer (color screen)Details

DDKSIC PCD10 Portable multiparameter analyzer (color screen)Packing list

SKU
NB049394
pH level
Level 0.001
Measurement range of pH
(-2.000~20.000)pH
pH resolution
0.1/0.01/0.001
pH Accuracy
Instrument: +/- 0.002pH +/- 1 word
pH calibrating point
1~ 3 point Automatic calibration
pH temperature automatic compensation
(-10.0~135.0)°C/(14.0~275.0)°F
ORP Measurement range
(-1999.9~+1999.9]mV
ORP resolution
0.1
ORP Accuracy
+/- 0.03% FS +/- 1 word
Conductivity level
Level 0.5
Measurement range of conductivity
0~2000.0mS/cm Automatic segmentation: 0~19.999us/cm; 20.0~199.9uS/cm; 200~1999us/cm2.00~19.99mS/m; 20.00~199.9ms/cm; 200.0~2000mscm (K = 10) Supporting test range: 0~200mS/cmTDS: 0~1000.0g/L (adjustable coefficient) Resistivity: 5.000Ω · cm~ 100.0MΩ · cm salinity: (0.00~100.00) ppt
Conductivity calibrating point
1 point
EC resolution
0.001
Conductivity automatic temperature compensation range
(0.0~50.0)°C/(32.0~122.0)°F
Conductivity Accuracy
+/- 0.5% FS +/- 1 word
Dissolved oxygen DO Measurement range
(0.00~20.00)mg/L
Dissolved oxygen DO Accuracy
±0.30 mg/L
Dissolved oxygen saturation
(0.0~200.0)%
Dissolved oxygen DO pressure compensation: automatic
(0~200.0）kPa
Dissolved oxygen DO automatic temperature compensation range
(0.0~50.0)°C/(32.0~122.0)°F
Measurement range
(-10.0~135.0)°C/(14.0~275.0)°F
Measurement Accuracy
±0.2°C
datacom port
Tyрe-C
Power Supply
Replaceable rechargeable lithium battery
Dustproof and Protection Rating
IP57
Measurement parameter
pH, mV (ORP electrode optional), conductivity, resistivity, TDS, salinity, dissolved oxygen concentration, dissolved oxygen saturation, ℃
PCD10
Portable multiparameter analyzer (color screen)
PCD10, conductivity module: 1 point calibrate, automatically identify calibrated solution, support electrode calibration, standard solution calibration, can be switched to TDS/salinity/resistivity, reference temperature can be set according to the sample solution.

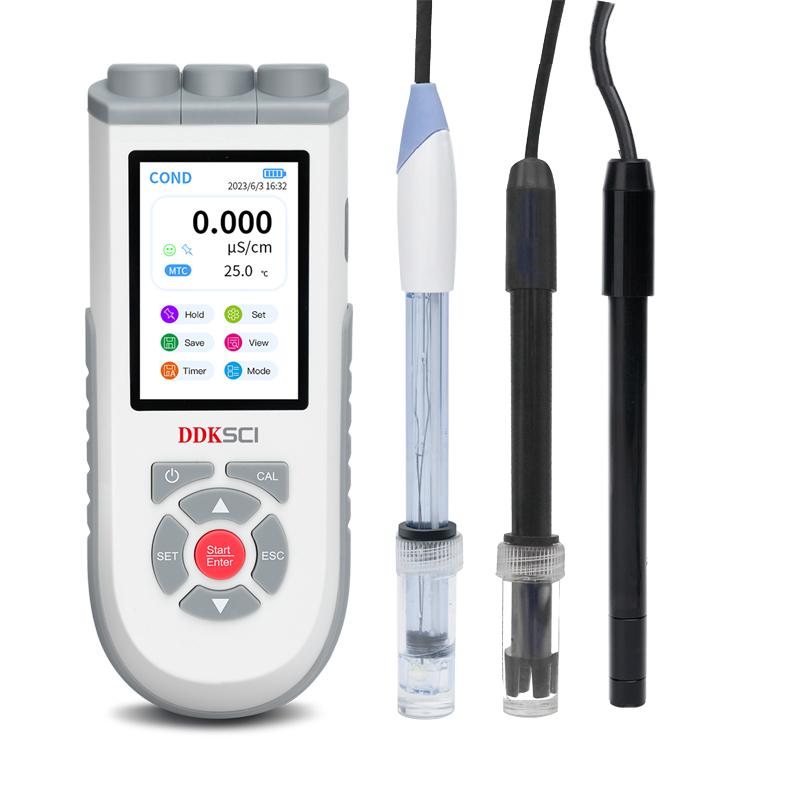

DDKSIC PCD10 Portable multiparameter analyzer (color screen) Picture

Features

  • Measurement parameters: pH, mV (ORP electrode optional), conductivity, resistivity, TDS, salinity, dissolved oxygen concentration, dissolved oxygen saturation, °C

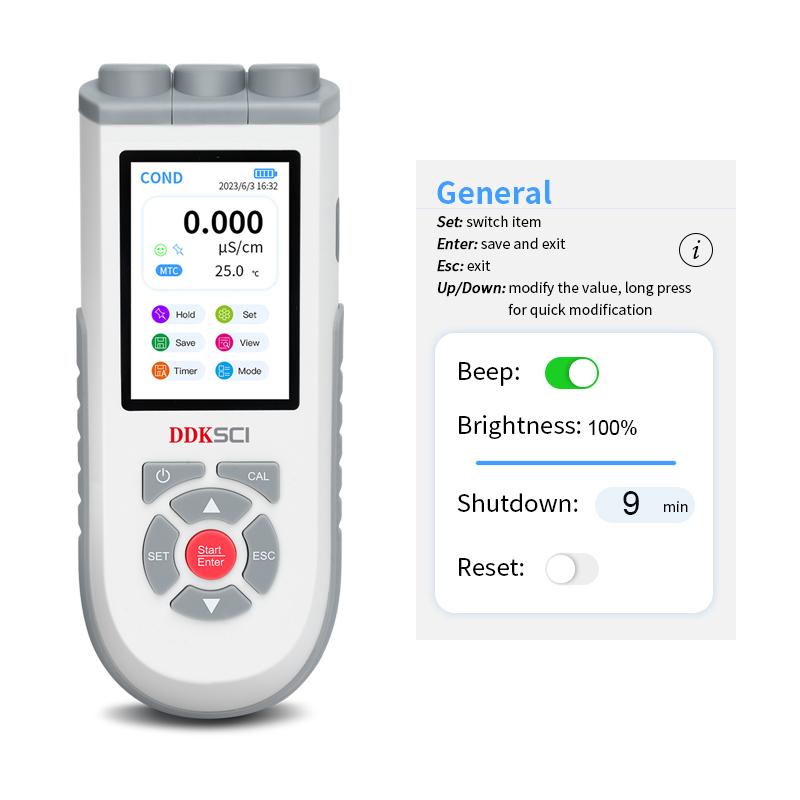

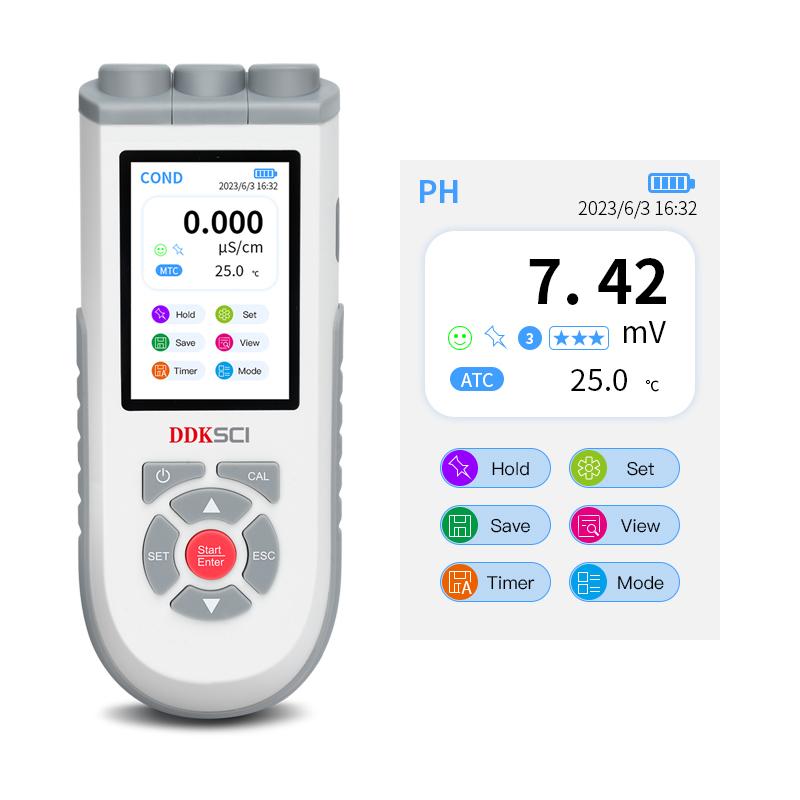

  • 3.5-inch TFT LCD color screen, beautiful, clear and easy to operate

  • Brand new UI interface design, navigational operation experience

  • Support the measurement of pH, ORP, conductivity, resistivity, TDS, salinity, dissolved oxygen concentration, dissolved oxygen saturation, temperature and other parameters

  • Intelligent operating system, with electrode management, data management, parameter setting and other functions

  • Conductivity calibration supports electrode constant calibration and solution calibration

  • Powerful data management function, maximum data storage: 3000 groups

  • The interval timer measurement mode can be set

  • Low battery display, data lock function

  • Charging port: Type C, easy to use, in line with EU standards

  • Powered by lithium battery, it supports low-power management function and power-off protection function

  • Dustproof and waterproof rating: IP57

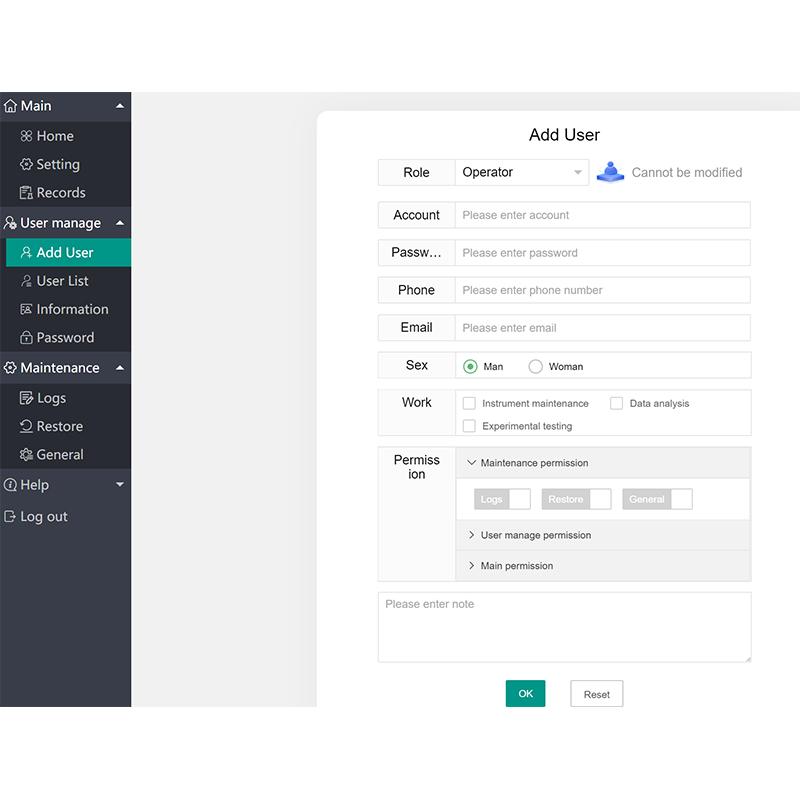

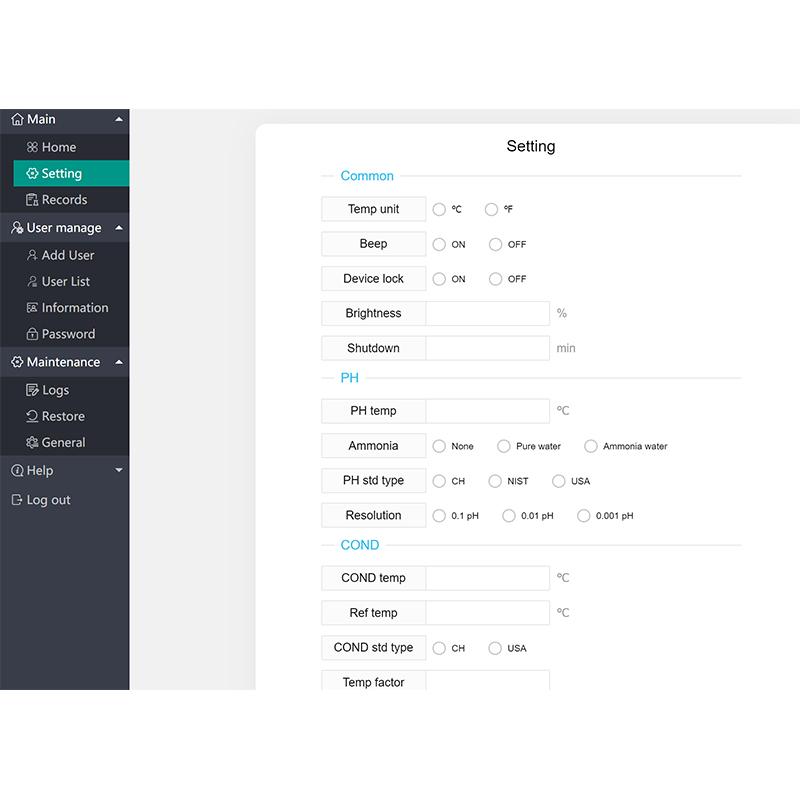

  • The PC software of the instrument can realize the functions: operation behavior record, sample ID information, user hierarchical management, equipment use management, data analysis, etc.

FAQ
QI want to buy a portable STIP-scan, which is mainly used to measure the pH, dissolved oxygen and salinity of fish ponds.
A This PCD10 portable multiparameter analyzer can simultaneously measure pH, dissolved oxygen and salinity, making it ideal for aquaculture monitoring. The instrument is IP57 waterproof design, can be used directly to the fish pond, the color screen display data is clear and intuitive, and 3000 sets of data can be stored for long-term tracking of water quality changes.
QThe laboratory needs an instrument that can measure conductivity, TDS and ORP. What is suitable?
A The PCD10 fully meets your needs. It supports conductivity, TDS and ORP (optional electrode required) measurement with an accuracy of 0.5. The instrument supports two calibration methods of electrode constant and solution to ensure measurement accuracy. The supporting PC software can also perform Data analysis and user grading management, making it ideal for use in laboratory environments.
QWe need to often go out to do environment water quality monitoring, requiring the instrument to be portable and fully functional, how to choose?
A PCD10 is designed for field monitoring. It integrates 9 parameter measurement functions such as pH, conductivity and dissolved oxygen. Lithium battery power supply and Type-C charging interface have strong battery life. IP57 Protection level ensures normal use in harsh environments. Timed Measurement mode can also automatically record data, making it an ideal choice for environment monitoring.
