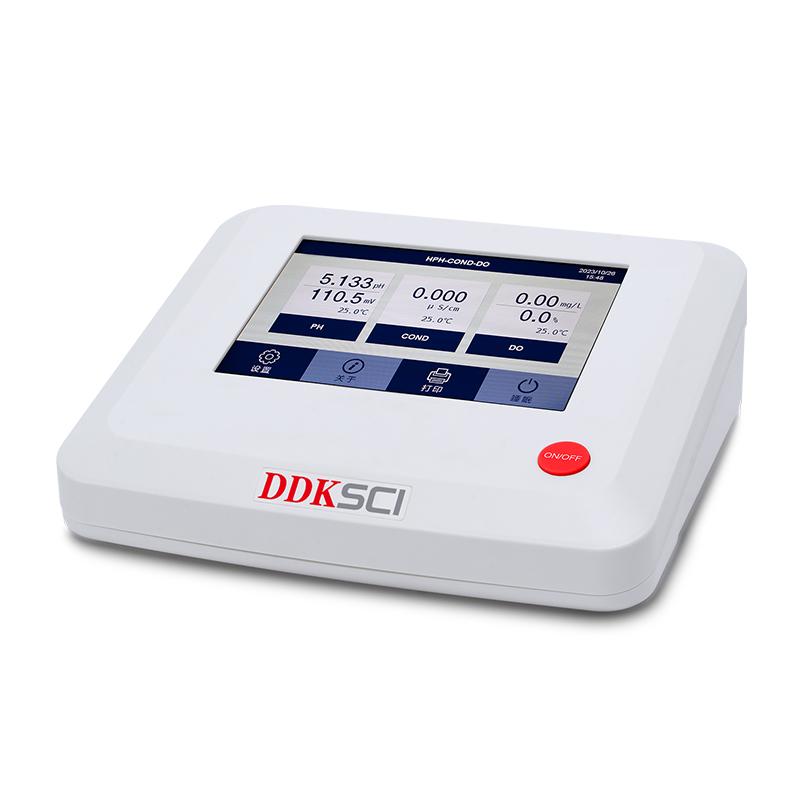

DDKSIC PCD100T touch screen desktop pH/conductivity/Dissolved Oxygen Meter
SE
PCD100T
DDKSIC PCD100T Desktop multiparameter analyzer (touch screen)SPEC
DDKSIC PCD100T Desktop multiparameter analyzer (touch screen)Details
DDKSIC PCD100T Desktop multiparameter analyzer (touch screen)Packing list
- SKU
- NB049408
- Measurement parameter
- pH, mV (ORP electrode optional), conductivity, resistivity, TDS, salinity, dissolved oxygen concentration, dissolved oxygen saturation, ℃
- pH range
- （-2.000~20.000）pH
- pH resolution
- 0.1/0.01/0.001pH
- pH Accuracy
- +/- 0.002pH +/- 1 word
- pH calibrating point
- 1~ 5 point Automatic calibration
- pH temperature automatic compensation
- -10.0~135.0°C（14.0~275.0℉）
- ORP range
- -1999.9mV~+1999.9mV
- ORP resolution
- 0.1mV
- ORP Accuracy
- +/- 0.03% F. S +/- 1 word
- Conductivity range
- 0~2000.0mS/cm
- Conductivity calibrating point
- 1 point Automatic calibration
- EC resolution
- 0.001
- Conductivity automatic temperature compensation range
- 0.0~50.0℃
- Conductivity Accuracy
- +/- 0.5% F. S +/- 1 word
- Dissolved oxygen saturation
- 0.0~200.0%
- DO air pressure compensation
- 0~200.0kPa automatic compensation
- DO salinity compensation
- 0~45ppt automatic compensation
- Temperature range
- -10.0~135.0°C（14.0~275.0℉）
- Temperature Accuracy/resolution
- ±0.2℃
- Operating system
- Chinese/English
- Prompt Volume/screen luminance
- Adjustable
- Data output
- U disk/PC/printer (printer optional)
- Data storage (storage content)
- 1500 groups (number, value, unit, temperature, time)
- Power Supply
- DC12V
Features
pH/Cond/DO can be displayed in split screen at the same time

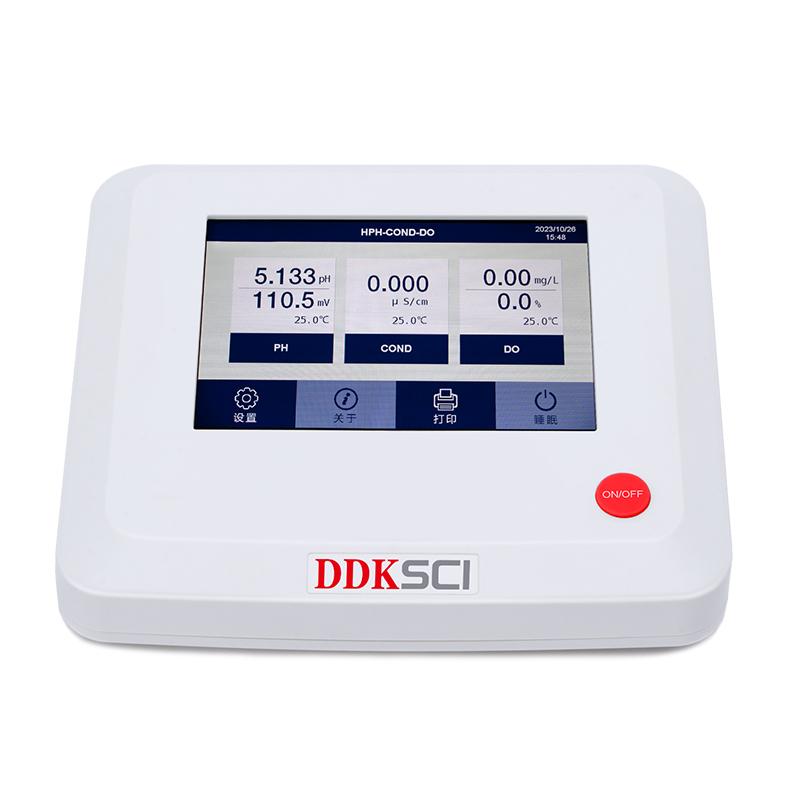

High-resolution 7-inch super-large touch color screen, beautiful, clear and easy to operate
The brightness of the screen can be adjusted, which is convenient for users to use in different environments
Temperature unit selectable: °C/°F
Intelligent operating system, with electrode management, data management, parameter setting, data locking, automatic calibration and other functions
It supports automatic temperature compensation and electrode diagnosis
PH module: calibration point: 1~5 points automatic calibration, CH, USA, NIST calibration solution optional, support pure water compensation and ammonia compensation mode
Conductivity module: 1 point calibration, reference temperature: 18°C, 20°C, 25°C optional, support electrode calibration, standard solution calibration, standard series: CH, Europe and the United States optional, measurement can be switched to TDS/salinity/resistivity
DO dissolved oxygen function: support automatic compensation of temperature, automatic compensation of air pressure, manual compensation of salinity, full oxygen calibration and zero oxygen calibration
It has the function of power-off protection and factory reset reset
Data storage: 1500 groups
Continuous measurement mode and interval timed measurement mode can be set
data locking function; Support Chinese and English operation interface
Data printing: support wireless Bluetooth connection to the printer, direct printing of measurement data (printer optional)
Data output: U disk/PC/printer

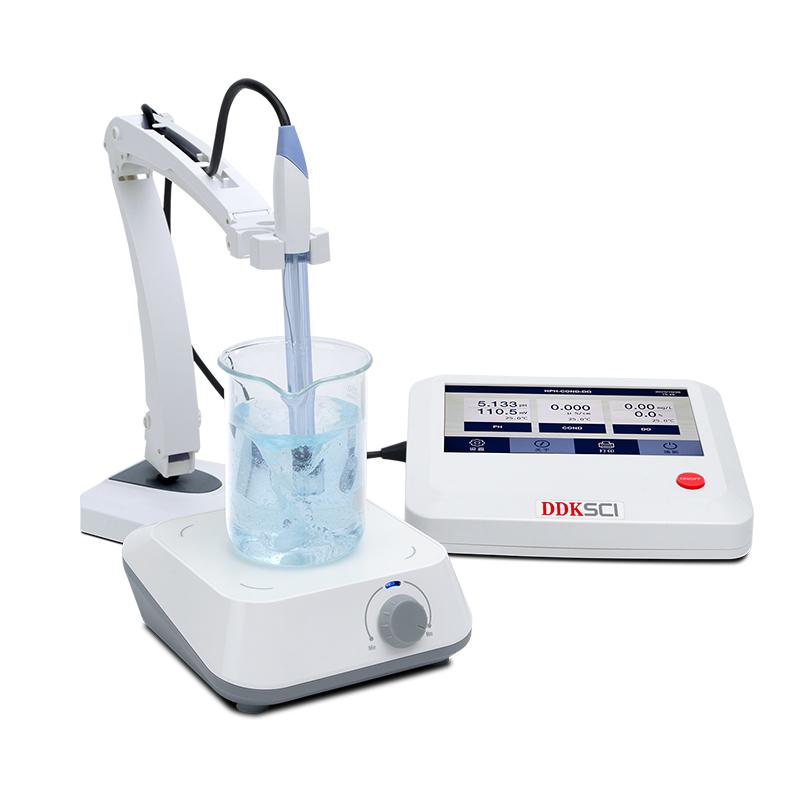

Matching: electrode holder, magnetic stirrer, standard solution
Dustproof and waterproof rating: IP54
