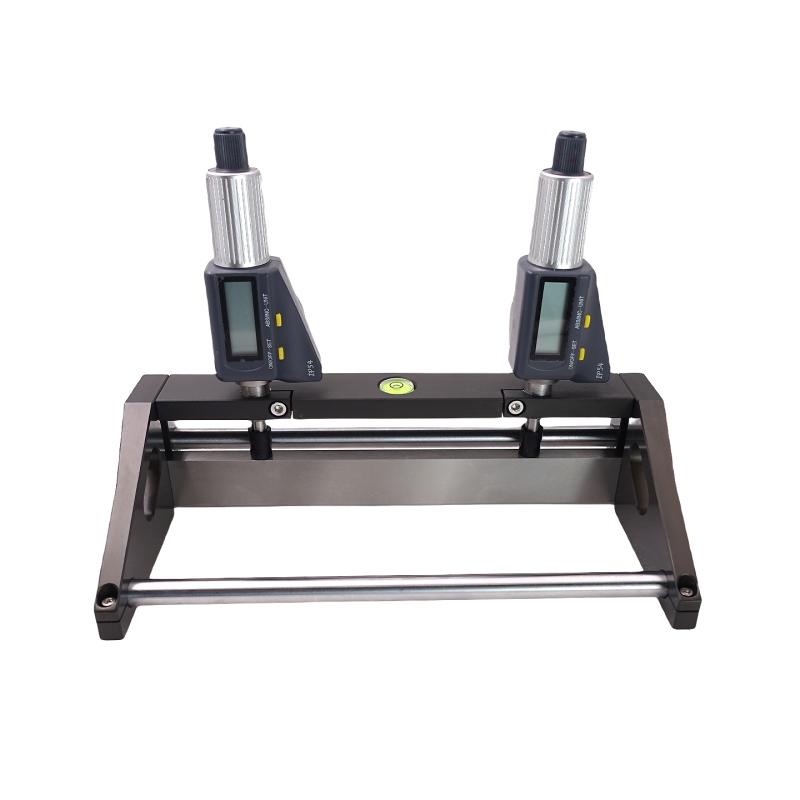

HuiNuo KTQ-600S Adjustable drawdown blade coating Applicator (digital display) 600mm/±5μm

KTQ-600S

Adjustable generator (digital display)

Type adjustable, wet film thickness 0~5000μm, Spreader width 600mm, drawdown blade accuracy +/- 5μm, drawdown blade material process die steel, size 310 * 100 * 50mm (excluding differential head), differential head green amount, drawdown blade straightness +/- 2μm, differential head Graduation 10μm.

Introduction

Huinuo adjustable preparator is a wet film preparer with adjustable coating film thickness, there are two differentiators above the adjustable preparator, which can adjust the lower scraper in the upper and lower directions to control the gap by adjusting the two differential heads of the preparator, and the size of the gap is the thickness of the final coating. The adjustable wet film preparer is a scale differential head, which is displayed by the scale, and the index value of the differential head is 10μm; KTQ-S series adjustable wet film preparer is a green micrometer head,The differential head adjusts the indexing value1μm。

The coating range of the adjustable preparer is adjustable from 0~5000 microns, and the scraper accuracy is ± 5μm；The frame material isThe aluminum is hard oxidized, and the scraper is made of die steel。 Different adjustable Film Applicators have different dimensions and different weights.

Features

1. Non-digital scale differential head, 10μm;

2. The mold steel scraper material has the advantages of high hardness, wear resistance and corrosion resistance;

3. Large range range, 0~5000 microns adjustable;

4. 50mm, 100mm, 150mm, 200mm, 250mm coating width can be selected;

5. The straightness of the blade blade ± 2 μm




Packing list：Adjustable Applicator × 1, Certificate X1, Manual X1, Warranty Card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
