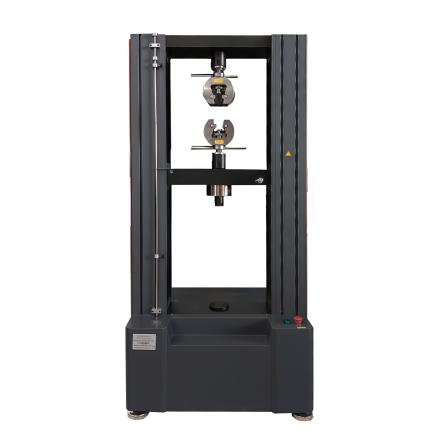

zy NBC-50kN Microcomputer-controlled electronic universal testing machine Specifications
Search
Brand：zy
Model：NBC-50kN
Name：Microcomputer-controlled electronic universal testing machine
Specifications
| maximum test force | 50kN |
| Measurement range | 0.4%--100% |
| Test force indication Accuracy | Better than indication +/- 0.5% |
| Test force resolution | 1/300000 (full undivided or equivalent to 6 gears) |
| Measurement Accuracy of beam displacement | Resolution higher than 0.0025mm |
| Measurement Accuracy | +/- 0.5% (in the range of 0.2-10mm) |
| Test speed range | 0.01 - 500mm/min, stepless speed regulation |
| Speed control Accuracy | ±1%(0.01~10mm/min); ±0.5%(10~500mm/min) |
| Constant force, constant deformation, constant displacement control range | 0.2%-100%FS |
| Constant force, constant deformation, constant displacement control Accuracy | When the set value is < 10% FS, within +/- 1.0% of the set value, and when the set value is ≥ 10% FS, within +/- 0.1% of the set value |
| Deformation rate control Accuracy | Within the +/- 2.0% setting value when the rate is < 0.05% FS, within the +/- 0.5% setting value when the rate is ≥ 0.05% FS |
| Test space | A. Stretching space: 600mm B. Compression space: 700mm |
| Fixture form | Wedge clamp body, flat jaw 0-7mm, round jaw Ø 4-Ø 9mm |
| Pressure plate size | φ100mm |
| Power supply for the whole machine | Single Phase, 220V +/- 10%, 50Hz, Power 1.5 kW |
| Operating Environment | Room temperature - 35 ℃, Relative Humidity does not exceed 80% |
| Host size | 760×500×1750mm |
| Weight | 500kg |
Packing list
host X1, manual X1, certificate X1, warranty card X1
After-sales instructions
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/49423/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
