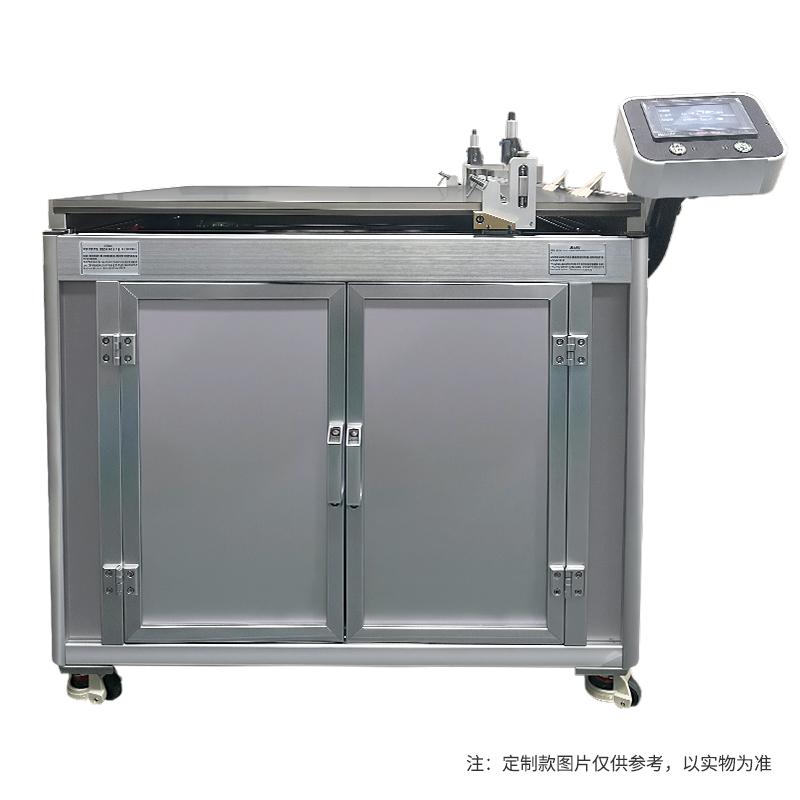

HuiNuo TM3200Pro/04D drawdown Bar & blade Vacuum chuck coater (floor type) Effective area 70cm * 60cm

TM3200pro/04D

Automatic Film Applicator

Coating method bar + Drawdown blade, effective coating area 700 * 600mm (can be customized), meyer rod coating accuracy +/- 0.003mm, Drawdown blade application width 600mm, drive motor servo motor, Vacuum Aperture φ 0.8mm, Drawdown blade Spreader thickness range 0.1~ 10mm.

Overview

The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.

This coating machine is a wire rod doctor blade coating machine, using two coating methods of wire rod and scraper, with vacuum adsorption function, the new type of wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, support speed control and coating length adjustment, suitable for high-precision automatic coating film in the laboratory, in the university research institute, new materials, lithium battery, glue, hot melt adhesive and other laboratories for film proofing.

Product Use:

The film coating machine is suitable for coating samples of coatings, inks, paints, pastes, hot melt adhesives, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, etc., and can be scraped on films, cardboards, aluminum foils and copper foils.

Features

1) The surface is hard treated aluminum alloy table, with high hardness and wear-resistant, and the flatness of the table is tested by imported high-precision instruments

2) Big brand differential regulator, high film thickness control accuracy

3) Clamshell doctor blade coating head, easy to clean

4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and has high precision

5) Touch screen control panel, easy to operate

6) The coating length and coating speed can be adjusted freely

7) With vacuum adsorption function, it is suitable for coating soft substrates such as films

Packing list：Film Applicator x1, bar x1, Drawdown blade x1, vacuum pump x1, manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
