HuiNuo NDJ-8S + 0 #Laboratory Rotational Viscometer Viscosity Detector 10~2 million CP

SE
Measurement range 10~2000000mPa.s, rotor specification standard 0/1/2/3/4, reproducibility +/- 1%, Measurement accuracy +/- 2%.
$467.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

HuiNuo NDJ-8S+0# Rotational ViscometerSPEC

HuiNuo NDJ-8S+0# Rotational ViscometerDetails

HuiNuo NDJ-8S+0# Rotational ViscometerPacking list

SKU
NB004944
Viscosity range
10~2000000mPa.s
Rotor specification
Standard 0/1/2/3/4 (low viscosity samples can be measured)
Rotor speed
0.3/0.6/1.2/3/6/12/30/60rpm
reproducibility
±1%F.S
Measurement Accuracy
±2%F.S
Display resolution
0.01mPa.s
System function
General measurement, Linear dispersion measurement, recording, viscosity conversion, printing
Interface
USB、RS232
Measurement record
50 articles
Operating language
Switch between Chinese and English (optional English)
Environment Operating temperature
0℃~40℃
Environment Relative Humidity
20% to 80% in an air environment without condensation
Power supply Voltage
100~240v，50~60HZ
Lifting range
250mm
Dimension
280×260×395mm
Net Weight
About 5kg
NDJ-8S+0#
Rotational Viscometer
Measurement range 10~2000000mPa.s, rotor specification standard 0/1/2/3/4, reproducibility +/- 1%, Measurement accuracy +/- 2%.

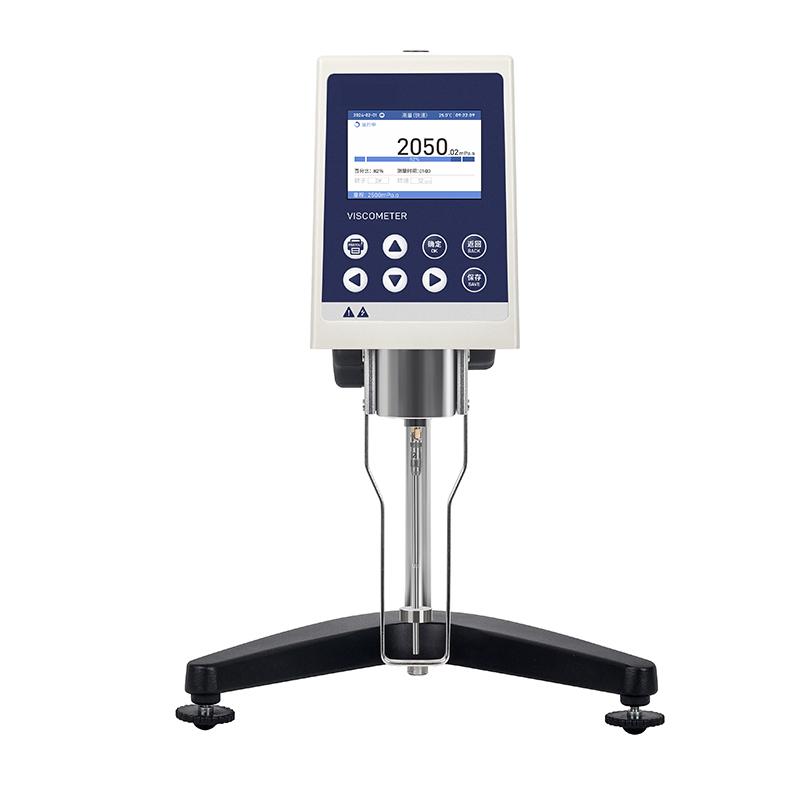

HuiNuo NDJ-8S + 0 #Laboratory Rotational Viscometer Viscosity Detector 10~2 million CP Picture

Product features

  • NDJ-5A/5S/8S/9S digital rotary viscometer is an upgraded product of digital rotary viscometer.

  • The instrument adopts reliable mechanical design technology, manufacturing process and microcomputer control technology, and the data collection is stable.

  • The display features a high-resolution 3.5-inch IPS display, providing intuitive data display. The color screen can directly display viscosity, rotational speed, temperature, percentage torque, rotor number, and the maximum viscosity that can be measured at the current rotational speed of the selected rotor number.

  • The instrument has high measurement sensitivity and reliable test results. It is a precision instrument used to measure the absolute viscosity of Newtonian liquids and the apparent relative viscosity of non-Newtonian liquids.

application field

Widely used in grease, paint, plastic, medicine, food, paint, glue, adhesive, resin, chemical raw materials and other fluid viscosity measurement.

Series model

ModelMeasuring rangerotorrotational speedTemperature probeMeasurement mode
NDJ-5S1-100000mPa.s1.2.3.46/12/30/60rpm/1 kind
NDJ-8S1-2000000mPa.s1.2.3.40.3/0.6/1.5/3/6/12/30/60rpm/1 kind
NDJ-9S1-100000mPa.s1.2.3.46/12/30/60rpmContaining PT1000A with probe holder1 kind

HuiNuo NDJ-8S + 0 #Laboratory Rotational Viscometer Viscosity Detector 10~2 million CP Figure 1

Range Meter

Speed/Range/Rotor0号1号2号3号4号
60r/min10100500200010000
30r/min202001000400020000
12r/min5050025001000050000
6r/min1001000500020000100000
3r/min/20001000040000200000
1.5r/min/40002000080000400000
0.6r/min/10000500002000001000000
0.3r/min/200001000004000002000000

单位：mPa·s

FAQ
QI want to measure the viscosity of paints, which rotational viscometer is suitable?
A NDJ-8S + 0 #is recommended. Because its measurement range is 1-2 million mPa.s, it fully covers the viscosity range of paints, and there are 8 speed options, which can more accurately test the viscosity change of paints at different shear rates.
QAdhesive viscosity needs to be measured in our laboratory. Which model is better?
A It is recommended to choose the NDJ-8S + 0 #model. Adhesive viscosity is usually high, this instrument can measure up to 2 million mPa.s. Standard No. 0 rotor can also measure low viscosity samples, suitable for materials with large viscosity changes such as Adhesive.
