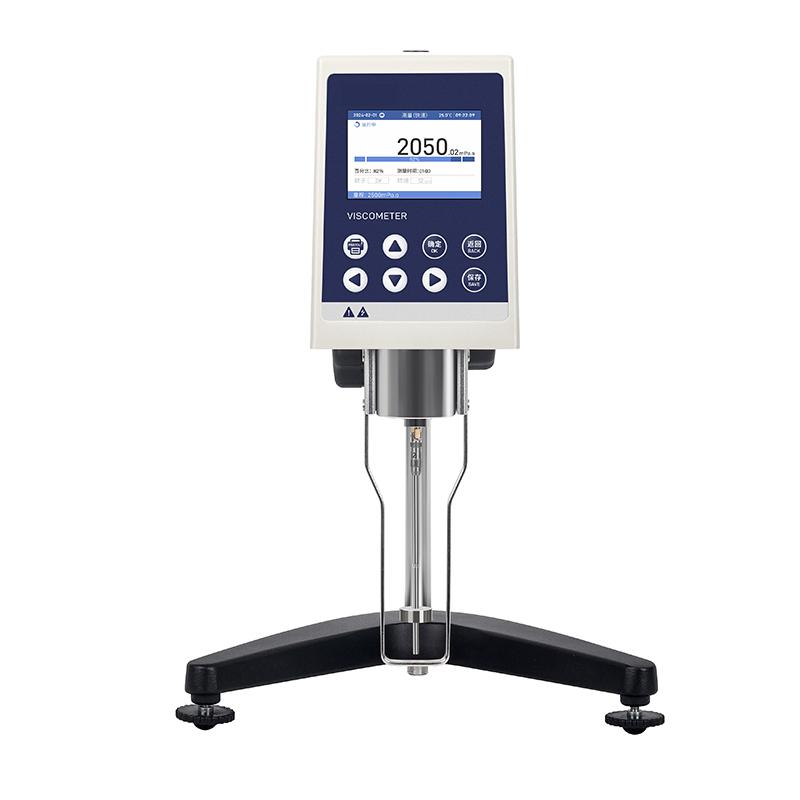

HuiNuo NDJ-5S + 0 #Digital Rotational Viscometer experimental Viscosity-Meter 10~100,000 CP
SE
NDJ-5S+0#
-
HUINUO NDJ-5S digital display Rotational Viscometer 100,000 CP$ 448.00SE -
HUINUO NDJ-5S Digital Rotational Viscometer Viscosimeter with L0 rotor$ 556.00SE -
HUINUO NDJ-5ST Rotational Viscometer 3 mode measurement with temperature probe 100,000 cP$ 405.00SE -
HUINUO NDJ-5S Digital Rotational Viscometer with RTD temperature sensor$ 466.00SE -
HUINUO NDJ-5S Laboratory Rotational Viscometer with a small number of sample adapters$ 801.00SE
HuiNuo NDJ-5S+0# Rotational ViscometerSPEC

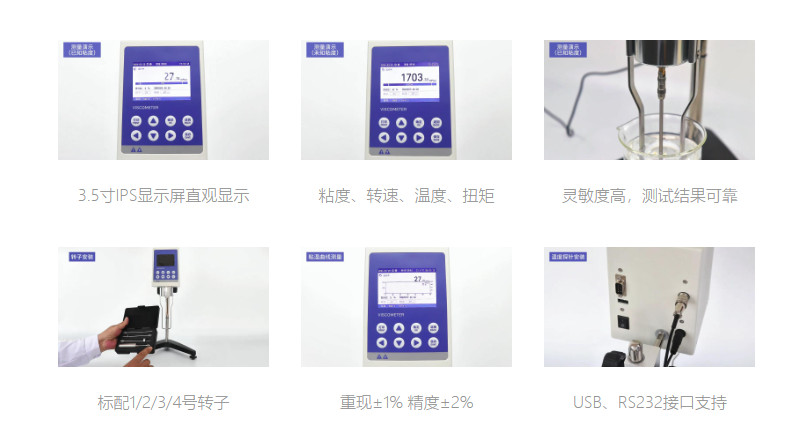

HuiNuo NDJ-5S+0# Rotational ViscometerDetails
HuiNuo NDJ-5S+0# Rotational ViscometerPacking list
- SKU
- NB004945
- Display mode
- digital display
- Viscosity range
- 10~100000mPa.s
- Rotor specification
- Standard 0/1/2/3/4 (low viscosity samples can be measured)
- Rotor speed
- 6/12/30/60rpm
- reproducibility
- ±1%F.S
- Measurement Accuracy
- ±2%F.S
- Display resolution
- 0.01mPa.s
- System function
- General measurement, Linear dispersion measurement, recording, viscosity conversion, printing
- Interface
- USB、RS232
- Measurement record
- 50 articles
- Operating language
- Switch between Chinese and English (optional English)
- Environment Operating temperature
- 0℃~40℃
- Environment Relative Humidity
- 20% to 80% in an air environment without condensation
- Power supply Voltage
- 100~240v，50~60HZ
- Lifting range
- 250mm
- Dimension
- 280×260×395mm
- Net Weight
- About 5kg
Features
NDJ-5A/5S/8S/9S Digital Rotational Viscometer is an upgraded product of Digital Rotational Viscometer.
The instrument adopts reliable mechanical design technology, manufacturing process and microcomputer control technology, and the data acquisition is stable.
The display adopts a high-resolution 3.5-inch IPS display, the data display is intuitive, and the color screen can be directly displayed and stickydegrees, speed, temperature, percentage torque, rotor number, and the maximum number of the selected rotor number that can be measured at the current speedHigh viscosity.
The instrument has high measurement sensitivity and reliable test results, and is used to measure the absolute viscosity of Newtonian liquidsPrecision instruments for the apparent relative viscosity of non-Newtonian liquids.
Application
It is widely used in grease, paint, plastic, medicine, food, coating, glue, adhesive, resin, chemical raw materialsViscosity measurement of various fluids such as materials.
Serial models
| Model | Measuring range | rotor | rotate speed | Temperature probes | Measurement mode |
| NDJ-5S | 1-100000mPa.s | No. 1.2.3.4 | 6/12/30/60rpm | / | 1 kind |
| NDJ-8S | 1-2000000mPa.s | No. 1.2.3.4 | 0.3/0.6/1.5/3/6/12/30/60rpm | / | 1 kind |
| NDJ-9S | 1-100000mPa.s | No. 1.2.3.4 | 6/12/30/60rpm | Includes PT1000A with probe holder | 1 kind |
Measuring range
| Speed/Range/Rotor | Number 0 | Number 1 | No. 2 | Number 3 | Number 4 |
| 60r/min | 10 | 100 | 500 | 2000 | 10000 |
| 30r/min | 20 | 200 | 1000 | 4000 | 20000 |
| 12r/min | 50 | 500 | 2500 | 10000 | 50000 |
| 6r/min | 100 | 1000 | 5000 | 20000 | 100000 |
| 3r/min | / | 2000 | 10000 | 40000 | 200000 |
| 1.5r/min | / | 4000 | 20000 | 80000 | 400000 |
| 0.6r/min | / | 10000 | 50000 | 200000 | 1000000 |
| 0.3r/min | / | 20000 | 100000 | 400000 | 2000000 |
Unit: mPa·s
