Spreader TBJ-B4-DJ13 drawdown Bar & Blade heating Film Applicator (floor type) Effective area 900 * 1000mm
Bar + drawdown blade + heating, Spreader area 900 * 1000mm, Spreader accuracy +/- 0.003mm, heating Temperature range RT +~ 180 ℃, temperature accuracy +/- 3 ℃
$15616.00/set
PromotionLoading...
Coupon
Model：
TBJ-B4-DJ13
zy
Manufacturer authorization
zy TBJ-B4-DJ13 Automatic Film ApplicatorSPEC
zy TBJ-B4-DJ13 Automatic Film ApplicatorDetails
zy TBJ-B4-DJ13 Automatic Film ApplicatorPacking list
- SKU
- NB049489
- Spreader Accuracy
- ±0.003mm
- Spreader thickness range
- 0~10Mm drawdown blade removable
- Coating speed
- 5~ 180Mm/s (< 5mm/s can be customized)
- Effective coating Area
- 900*1000mm
- Spreader speed
- Digital display, different speeds
- Coating rod specification
- Accuracy 0.001mm (Spreader thickness determined according to bar model)
- Host Power Supply
- 220V 50Hz
- Dimension
- 1000 * 850 * 1000mm (non-standard customization, subject to actual order)
- speed control
- Infinitely variable speed
- Coating table material
- aluminum alloy
- Spreader Accuracy
- 0.001mm
- Optional Accessories
- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
- Heating Temperature range
- RT+~180℃
- Temperature Accuracy
- ±3℃
TBJ-B4-DJ13
Automatic Film Applicator
Bar + drawdown blade + heating, Spreader area 900 * 1000mm, Spreader accuracy +/- 0.003mm, heating Temperature range RT +~ 180 ℃, temperature accuracy +/- 3 ℃

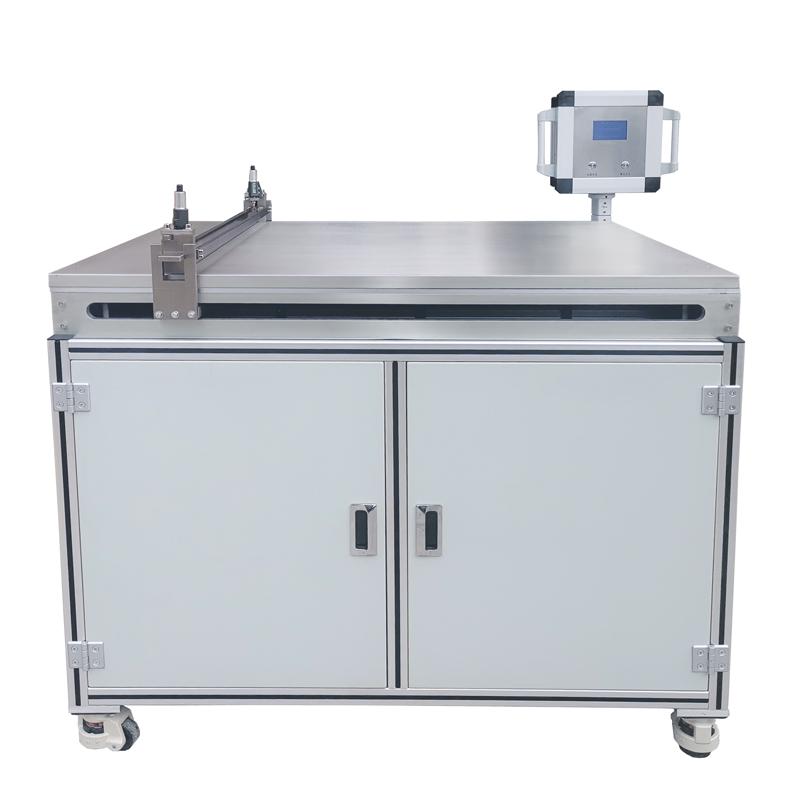

TBJ-B4-DJ13 Floor Type Automatic Coating Machine is a wire rod scraper heating film coating machine (floor type), with an effective coating area of 900*1000mm, standard 3L volume bin, heating temperature up to 180°C. It is often used in laboratories for film coatings, and is suitable for film making in coatings, inks, polymer materials, films, glues, pressure-sensitive adhesives and other industries.
Optional accessories
|
|
|
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
