HuiNuo TM1200/02 bar vacuum adsorption coater effective area 600 * 1300mm

SE
Bar + vacuum adsorption function, custom large Coating size 600 * 1300mm, bar film accuracy +/- 0.003mm, suitable for paper, film, fabric, aluminum foil copper foil and other substrate films.
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

HuiNuo TM1200/02 Automatic Film ApplicatorSPEC

HuiNuo TM1200/02 Automatic Film ApplicatorDetails

HuiNuo TM1200/02 Automatic Film ApplicatorPacking list

SKU
NB004952
Coating method
Rod
Coating speed
1~ 300Mm/s stepless speed regulation (can be customized)
Substrate clamping method
Vacuum adsorption + fixture
Coating table material
Surface hard treatment aluminum alloy
Coating table size
1540*630mm
Effective coating Area
1300 * 600Mm (can be customized)
Mayer Rod Thickness Range
Different bar numbers have different thicknesses, with high-precision imported bars
Mayer Rod Accuracy
±0.003mm
Vacuum Area
1380 * 560Mm (can be customized)
vacuum aperture
Φ0.8mm
Vacuum hole spacing
20*20mm
Pumping Speed
5.4m3/h
Ultimate Vacuum
50KPa
Vacuum Pump Power
180W
Vacuum pump Weight
7.1kg
Operating language
Chinese (can be customized in English)
Display
Color LCD touch screen
Host Power Supply
100V~220V/50~60HZ
Power
400w
TM1200/02
Automatic Film Applicator
Bar + vacuum adsorption function, custom large Coating size 600 * 1300mm, bar film accuracy +/- 0.003mm, suitable for paper, film, fabric, aluminum foil copper foil and other substrate films.

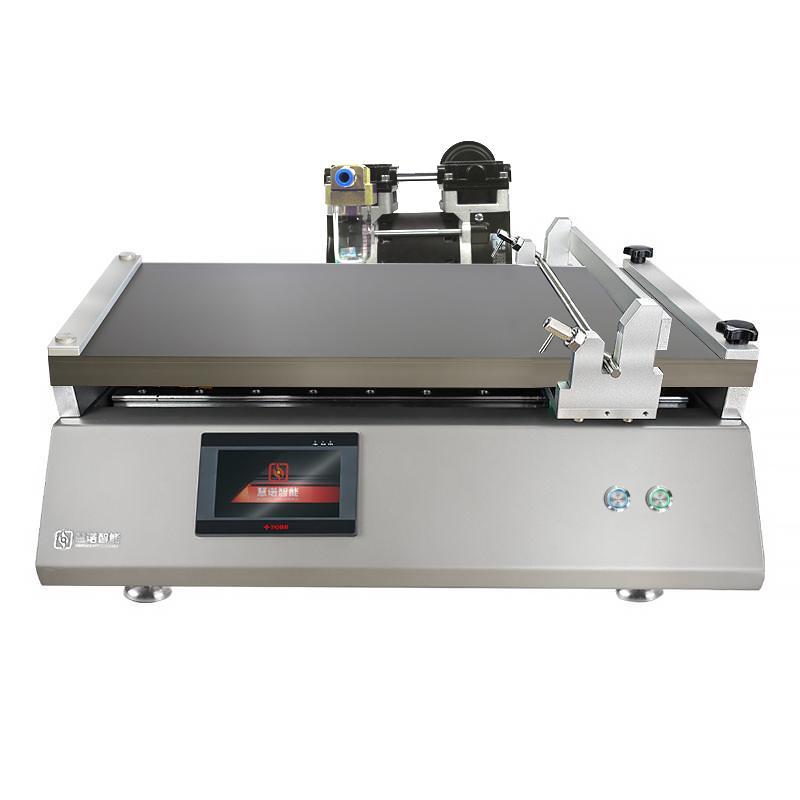

HuiNuo TM1200/02 bar vacuum adsorption coater effective area 600 * 1300mm Picture

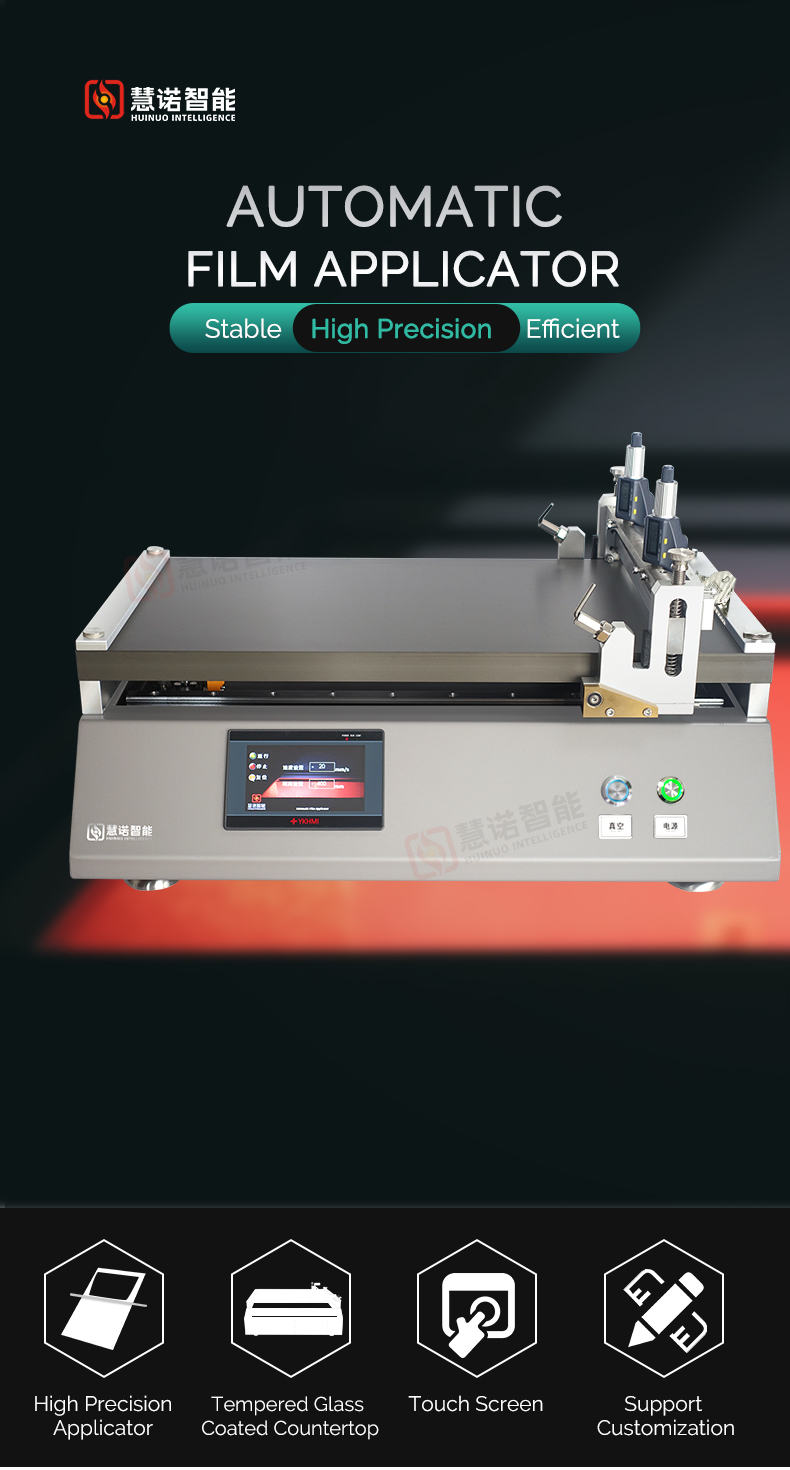

HuiNuo TM1200/02 bar vacuum adsorption coater effective area 600 * 1300mm Figure 1

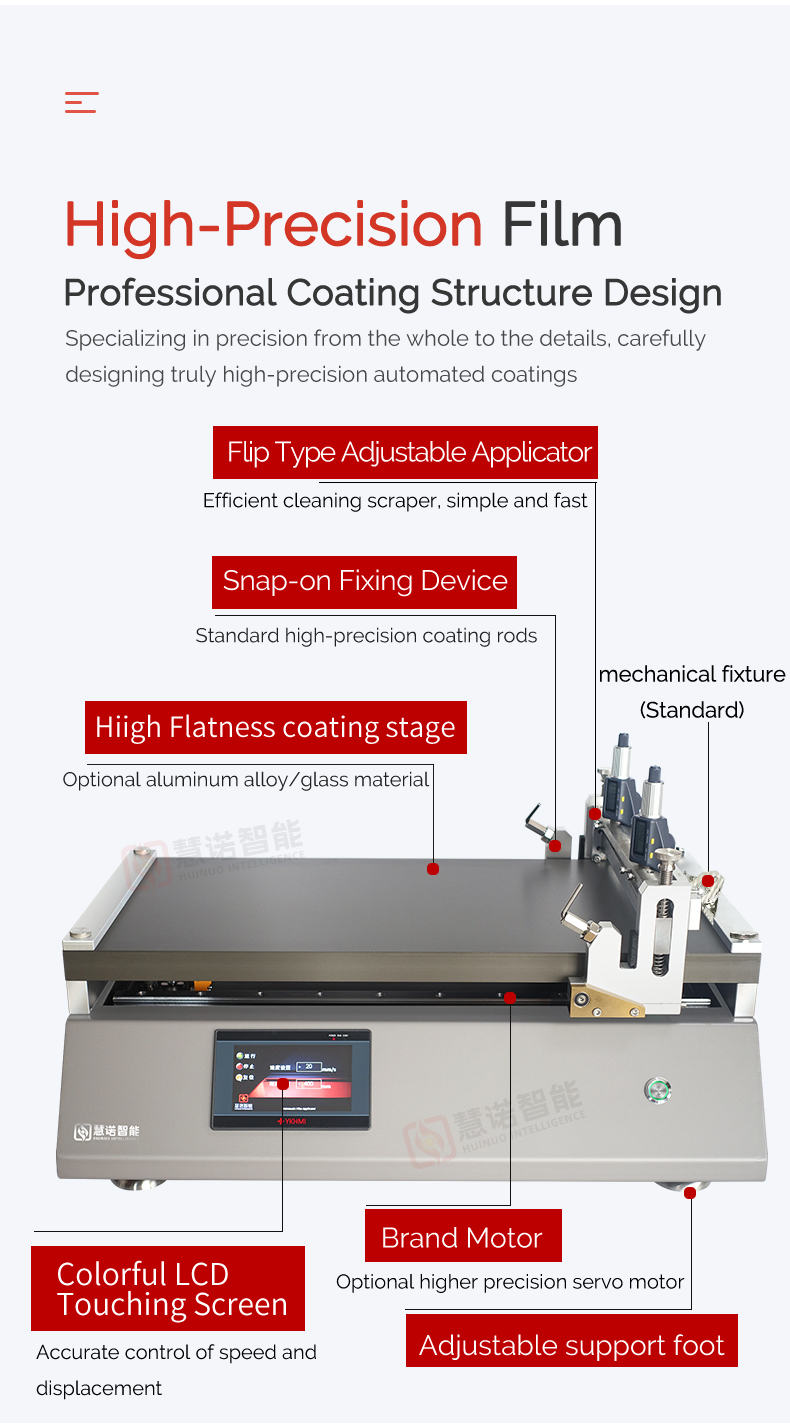

HuiNuo TM1200/02 bar vacuum adsorption coater effective area 600 * 1300mm Figure 2

HuiNuo TM1200/02 bar vacuum adsorption coater effective area 600 * 1300mm Figure 3

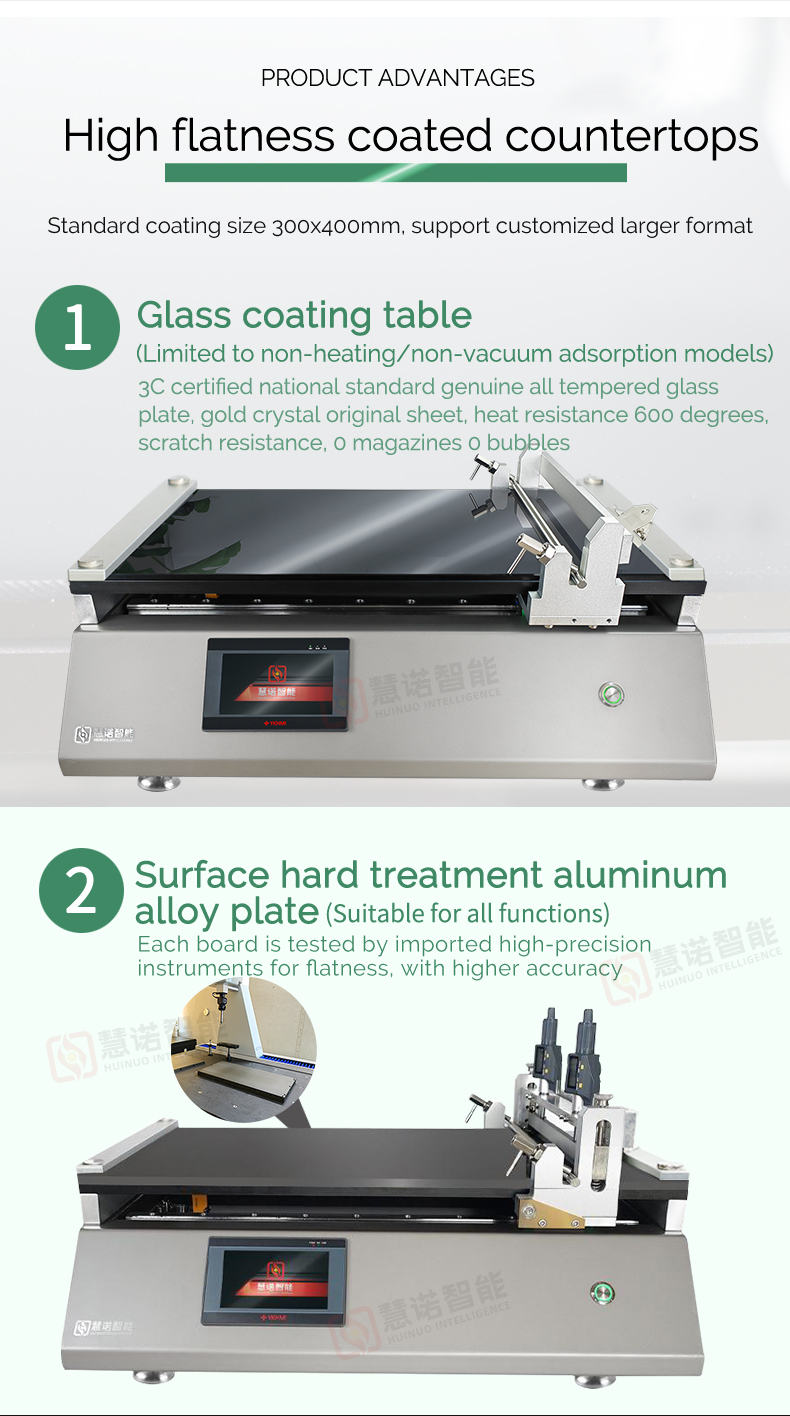

HuiNuo TM1200/02 bar vacuum adsorption coater effective area 600 * 1300mm Figure 4

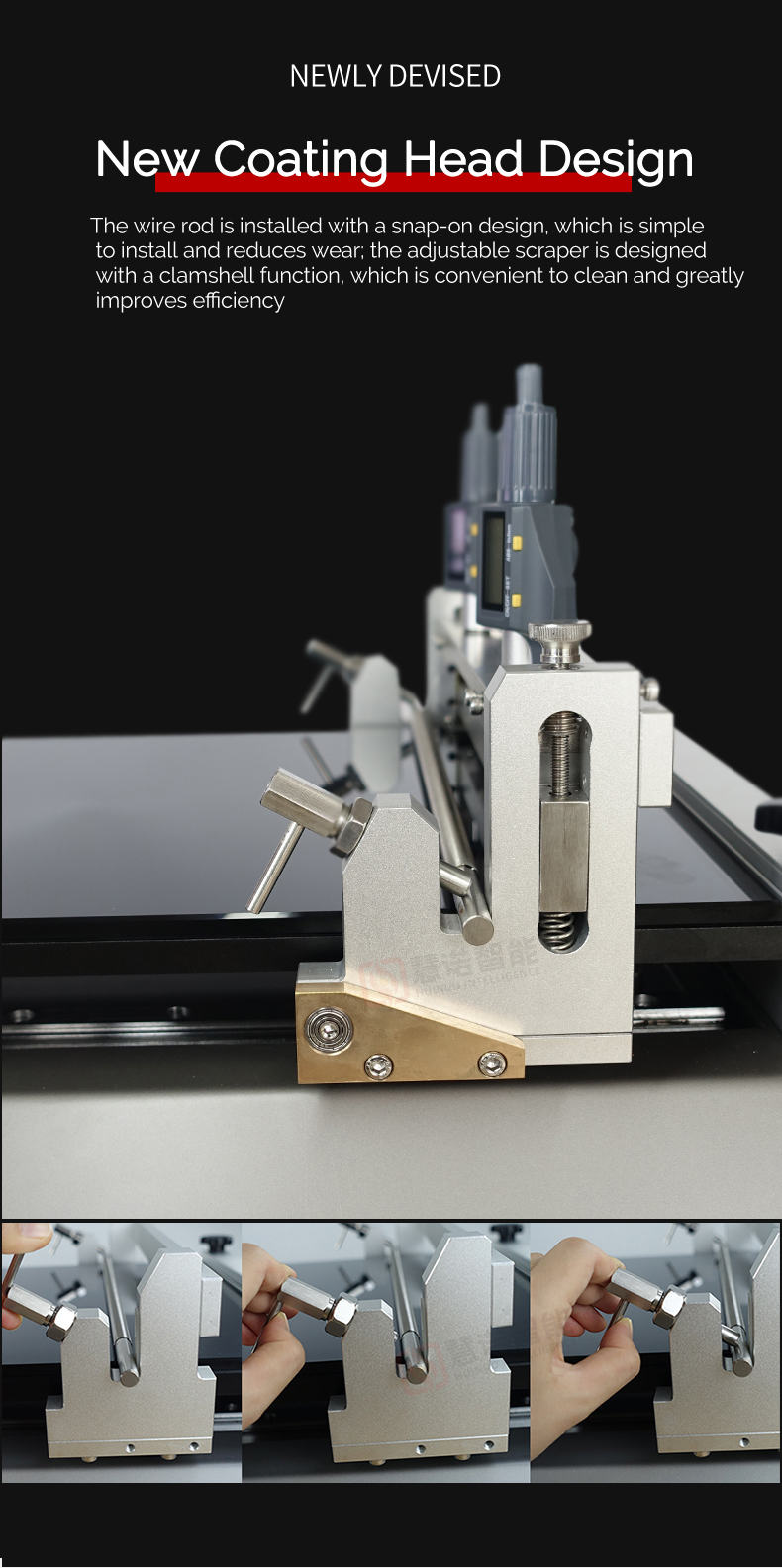

HuiNuo TM1200/02 bar vacuum adsorption coater effective area 600 * 1300mm Figure 5

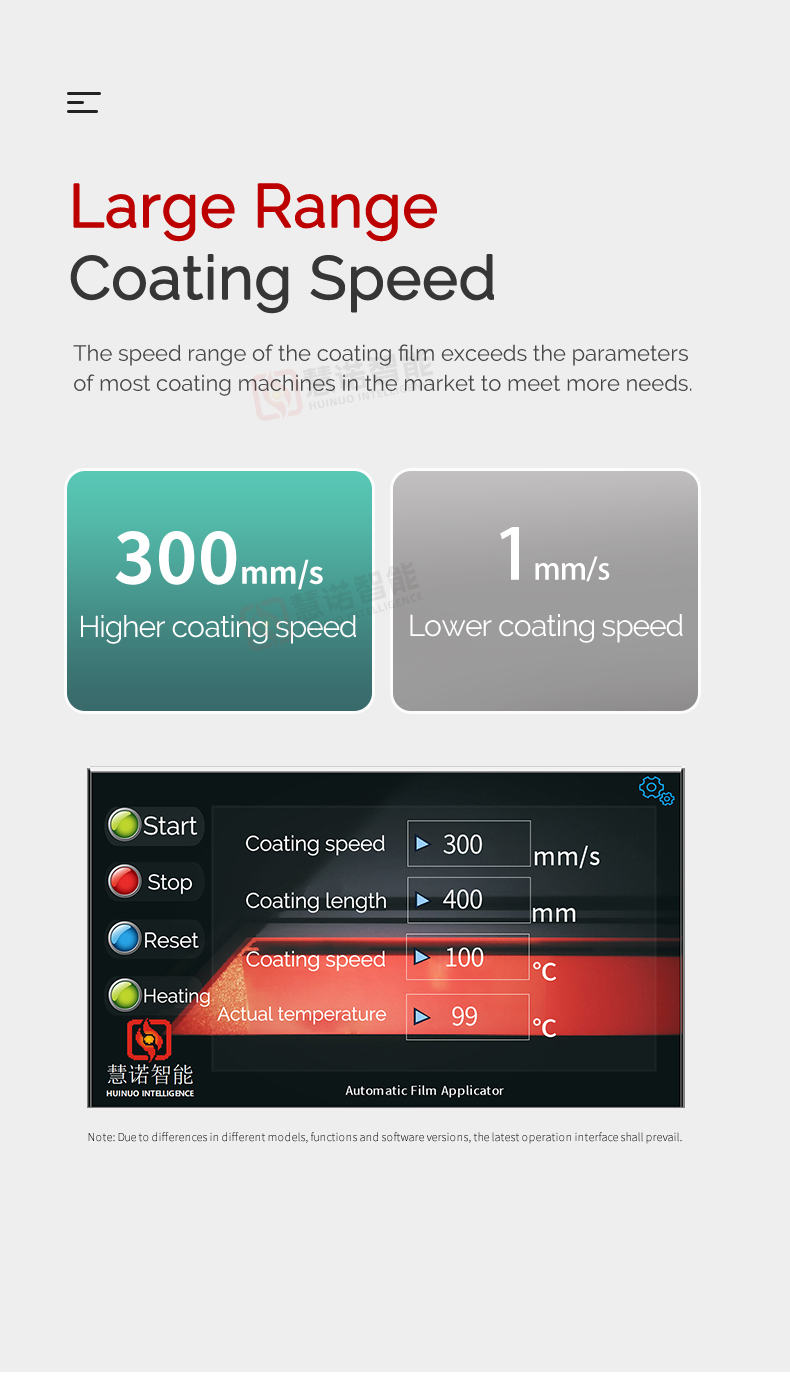

HuiNuo TM1200/02 bar vacuum adsorption coater effective area 600 * 1300mm Figure 6

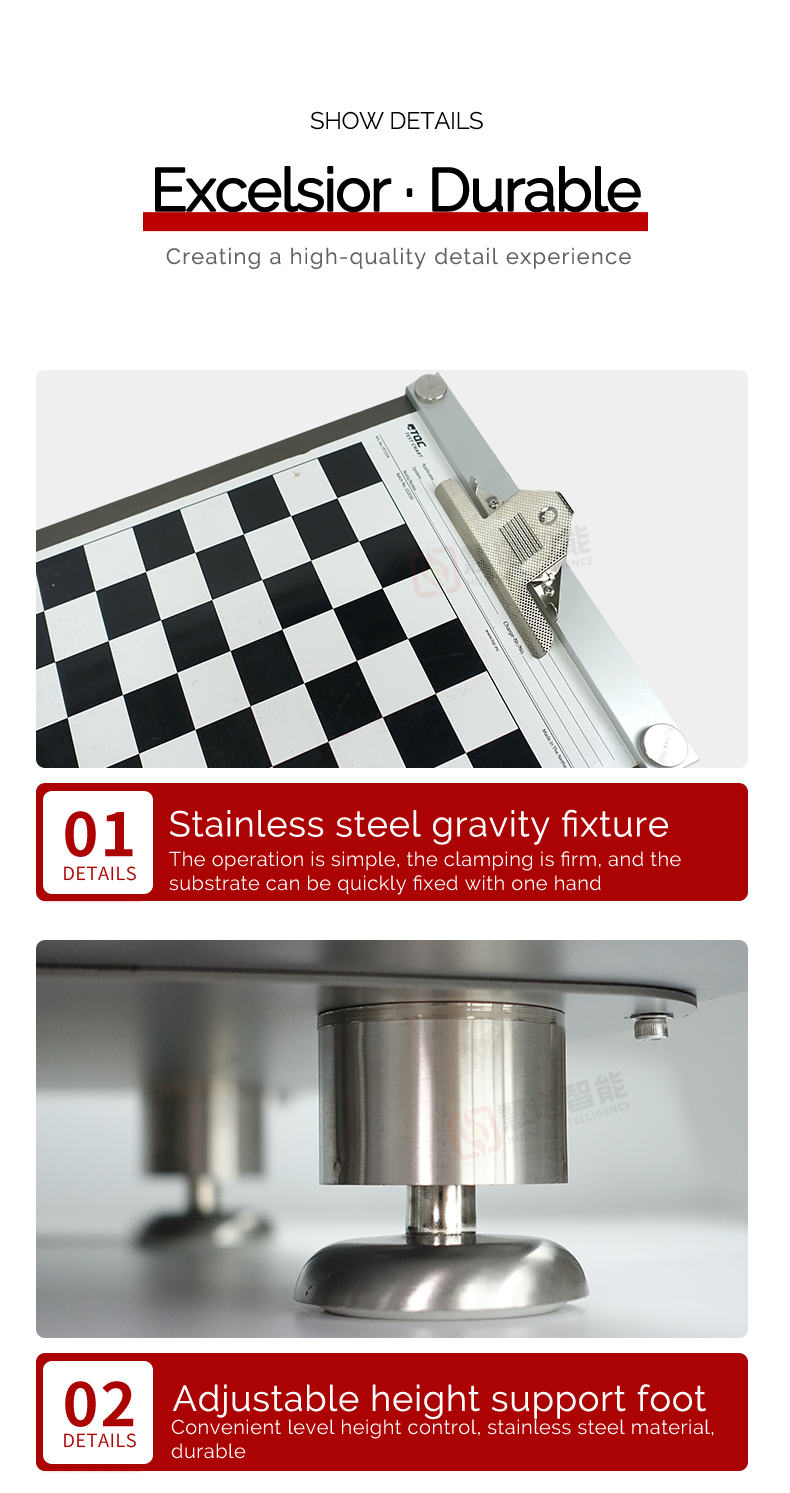

HuiNuo TM1200/02 bar vacuum adsorption coater effective area 600 * 1300mm Figure 7

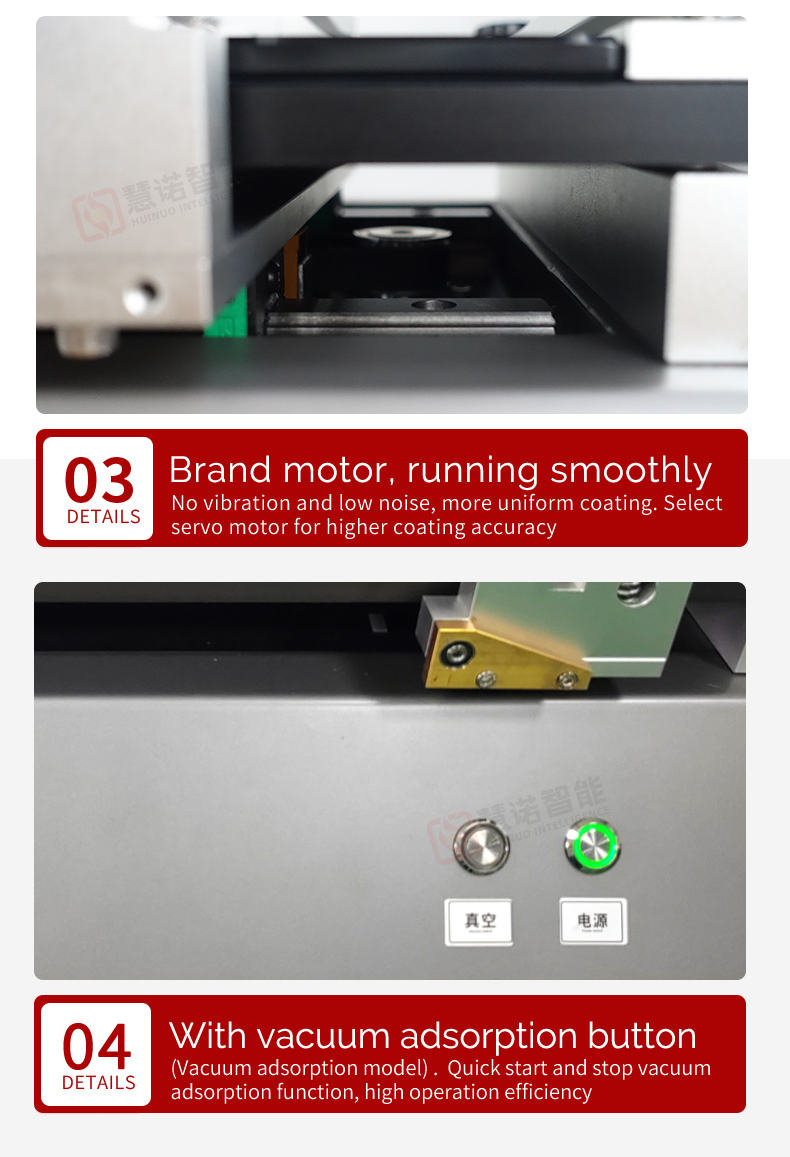

HuiNuo TM1200/02 bar vacuum adsorption coater effective area 600 * 1300mm Figure 8

HuiNuo TM1200/02 bar vacuum adsorption coater effective area 600 * 1300mm Figure 9

HuiNuo TM1200/02 bar vacuum adsorption coater effective area 600 * 1300mm Figure 10

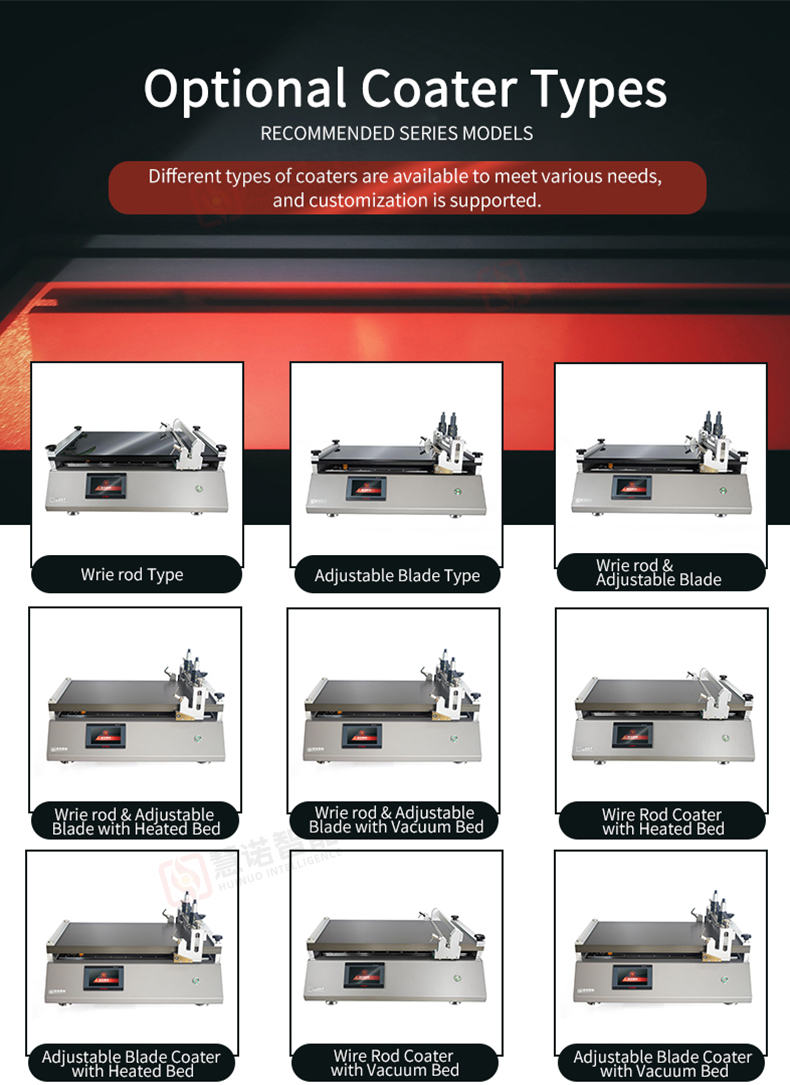

HuiNuo TM1200/02 bar vacuum adsorption coater effective area 600 * 1300mm Figure 11

HuiNuo TM1200/02 bar vacuum adsorption coater effective area 600 * 1300mm Figure 12

HuiNuo TM1200/02 bar vacuum adsorption coater effective area 600 * 1300mm Figure 13


FAQ
QWhat is the range of Spreader Film thickness?
A Hello, Spreader Film thickness is a film appliance with a film Film thickness range of 1μm~ 10mm according to the matching bar or drawdown blade.
