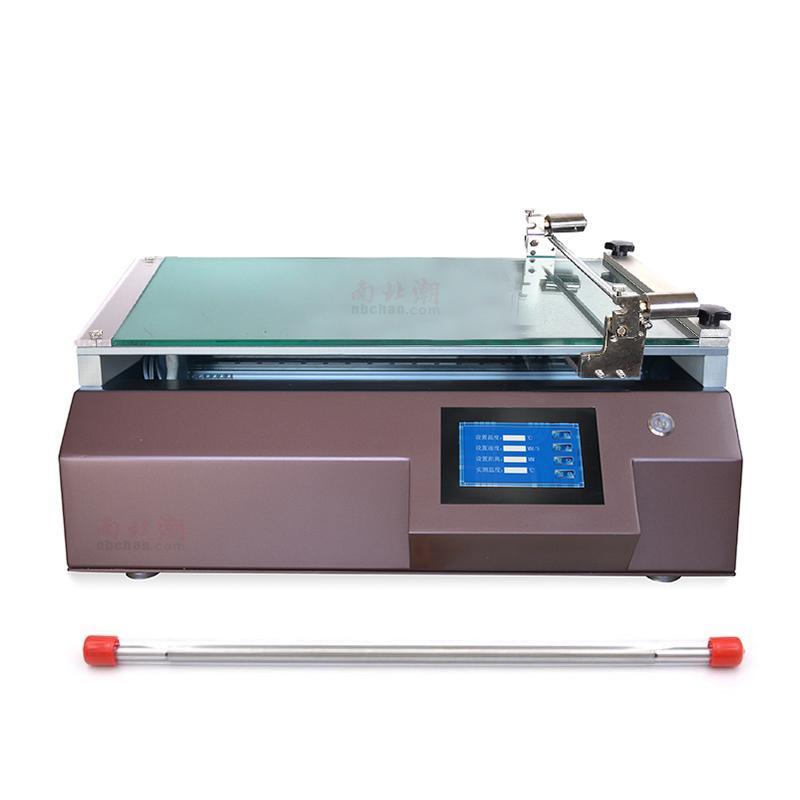

China TBJ-A1-DJ14 Bar Coater effective area 500 * 1000mm

High-precision bar Spreader, Glass baseplate, Spreader area 500 * 1000mm, touch screen operation, coating speed 5-200mm/s, suitable for low viscosity samples or ultra-thin film high-precision Spreader.
$6133.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con CAT OI
Similar products

zy TBJ-A1-DJ14 Automatic Film ApplicatorSPEC

zy TBJ-A1-DJ14 Automatic Film ApplicatorDetails

zy TBJ-A1-DJ14 Automatic Film ApplicatorPacking list

SKU
NB004953
Coating method
Rod
Mayer Rod Thickness Range
1-571.5 μm (Spreader thickness according to bar model)
Mayer Rod Accuracy
±0.003mm
Coating speed
5-200Mm/s (< 5mm/s can be customized)
Coating size
500 * 1000Mm (can be customized)
Spreader Itinerary
The number can be set arbitrarily within the range of 1~ 1000mm
Substrate clamping method
Mechanical fixture
Control mode
Touch screen control
Power supply Voltage
220V 50HZ
Dimension
Subject to the actual product
Net Weight
Subject to the actual product
speed control
Infinitely variable speed
Bottom plate material
Glass
Optional Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
customizable function
Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader
TBJ-A1-DJ14
Automatic Film Applicator
High-precision bar Spreader, Glass baseplate, Spreader area 500 * 1000mm, touch screen operation, coating speed 5-200mm/s, suitable for low viscosity samples or ultra-thin film high-precision Spreader.
China TBJ-A1-DJ14 Bar Coater effective area 500 * 1000mm Picture

CHINA TBJ-A1-DJ14 Bar Coater effective area 500 * 1000mm Figure 1

CHINA TBJ-A1-DJ14 Bar Coater effective area 500 * 1000mm Figure 2

CHINA TBJ-A1-DJ14 Bar Coater effective area 500 * 1000mm Figure 3

CHINA TBJ-A1-DJ14 Bar Coater effective area 500 * 1000mm Figure 4

CHINA TBJ-A1-DJ14 Bar Coater effective area 500 * 1000mm Figure 5

CHINA TBJ-A1-DJ14 Bar Coater effective area 500 * 1000mm Figure 6

CHINA TBJ-A1-DJ14 Bar Coater effective area 500 * 1000mm Figure 7

CHINA TBJ-A1-DJ14 Bar Coater effective area 500 * 1000mm Figure 8

CHINA TBJ-A1-DJ14 Bar Coater effective area 500 * 1000mm Figure 9


Optional

CHINA TBJ-A1-DJ14 Bar Coater effective area 500 * 1000mm Figure 10

CHINA TBJ-A1-DJ14 Bar Coater effective area 500 * 1000mm Figure 11

CHINA TBJ-A1-DJ14 Bar Coater effective area 500 * 1000mm Figure 12

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
