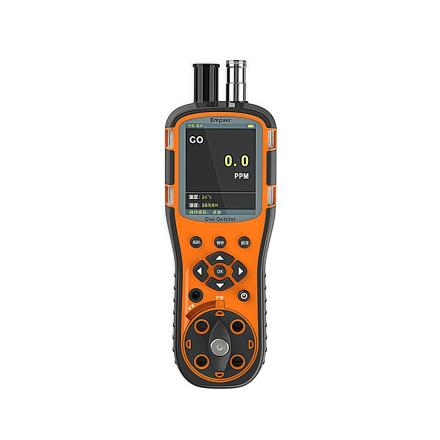

Empaer AAZZ（EX、H2S、CO、CO2） Supreme Series Handheld Quad Composite Gas Detector Specifications
Search
Brand：Empaer
Model：AAZZ（EX、H2S、CO、CO2）
Name：Supreme Series Handheld Quad Composite Gas Detector
Specifications
| Detect gas | EX, H2S, CO, CO2 (any combination of less than 4 kinds of 600 kinds of gases) |
| number of detection parameters | 1-4 kinds |
| Detection principle | Semiconductor, catalytic combustion, infrared, electrochemistry, PID photoion, thermal conductivity, etc.; |
| Range | See the list of detectable gases or call us! |
| resolution | ≤ full scale * one thousandth (consult the customer service of the mall); |
| testing unit | ppm, ppb, pphm, mg/m3, LEL%, VOL% (partially switchable); |
| Response time | T90 ≤ national standard |
| error of indication | 3%FS |
| Repeatability | 1% |
| Display | High definition 2.8 inch color screen, 320 * 240 resolution, support no backlight display; |
| system language | Chinese/English, can be switched. |
| Adoption method | Compatible with diffusion type and built-in air pump suction type, the two modes are easy to switch; |
| Temperature detection | without |
| temperature compensation | without |
| Communication interface | MICRO USB |
| Wireless signal output | Optional 4G, NB-IOT, WIFI, LORA, Bluetooth (optional); |
| Alarm function | Buzzer, LED light alarm, screen flash alarm, vibration alarm; |
| Fall alarm | Yes (optional) |
| Remote visual alarm | Remote visibility of each detection parameter separate light alarm function; |
| Operation mode | Key operation (3), remote IoT operation; |
| IoT manipulation | Remote parameter configuration and program upgrade can be carried out through NB-IoT, 4G or WIFI networking. |
| How to use | Handheld, neck-mounted; |
| automatic calibration | Zero automatic correction function; |
| calibration period | 1 year (recommended) |
| Data storage | Detection data > 100000; Alarm record data: 1000 |
| Explosion-proof level | Intrinsically safe explosion protection: Ex ia IIC T4 Ga |
| Protection level | IP65 |
| anti-electromagnetic interference | national standard |
| anti-cross gas interference | weak |
| Battery | 3500MAh lithium battery; Charging time: < 5 hours; Operating Voltage: 7-4.2 V; |
| battery life | 12 hours < working battery life < 50 hours (determined by Sampling method and Sensors principle); |
| Environmental temperature | -40~55℃ |
| Storage temperature | -10~30℃ |
| Working pressure | 80-120KPA |
| service life | Sensors: determined by the detection principle; Miscellaneous components ≥ 5 years |
| Attenuation performance | standard |
| reference certification | Intrinsically safe explosion-proof, Measurement equipment CPA, CCCF, IP65 protection, mine safety, coal safety, ROSH, SIL2, CE, ATEX, IEC |
| Weight | About 760g |
| Shell Color | Amber + off-white |
| Product size | About 200 * 75 * 47mm |
| Production process | Standard process |
| shell material | Shell material: PC plus TPU soft glue, anti-skid, anti-drop, anti-off hand; |
| Environmental humidity | 0% -95% RH (no condensation) |
Packing list
Host X1, Encasement Box X1, Charger X1, Data Cable X1, Manual X1, Warranty Card X1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/49534/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
