MITECH MUT100S digital ultrasonic flaw detection (UFD) instrument

Equipped with 400MHz ARM M4 processor, with intelligent analysis and B-scan function, detection range of 0-10000mm, frequency band 0.2-20 MHz, super long standby more than 8.5 hours, support 10 hours of continuous video recording and 20,000 data storage.
Model：
Certificate
Contact
Details SPEC

mitech MUT100S Digital ultrasonic flaw detection (UFD) instrumentSPEC

mitech MUT100S Digital ultrasonic flaw detection (UFD) instrumentDetails

mitech MUT100S Digital ultrasonic flaw detection (UFD) instrumentPacking list

SKU
NB049537
Operating system
Efficient and Intelligent GUI Embedded Software System
core CPU
400MHz ARM M4
B-scan function
Color coded B-scan
continuous video recording
10 hours
detection range
0-10000mm
frequency band range
0.2-20MHz
Plug socket
Dual LEMO 00 (C5 interface)
screen definition
640x480
Store flaw detection echo information
20000
Speed of sound
100~20000
AWS Standard
1.1/1.5
Weight
920g
Volume
218*132*55mm
MUT100S
Digital ultrasonic flaw detection (UFD) instrument
Equipped with 400MHz ARM M4 processor, with intelligent analysis and B-scan function, detection range of 0-10000mm, frequency band 0.2-20 MHz, super long standby more than 8.5 hours, support 10 hours of continuous video recording and 20,000 data storage.

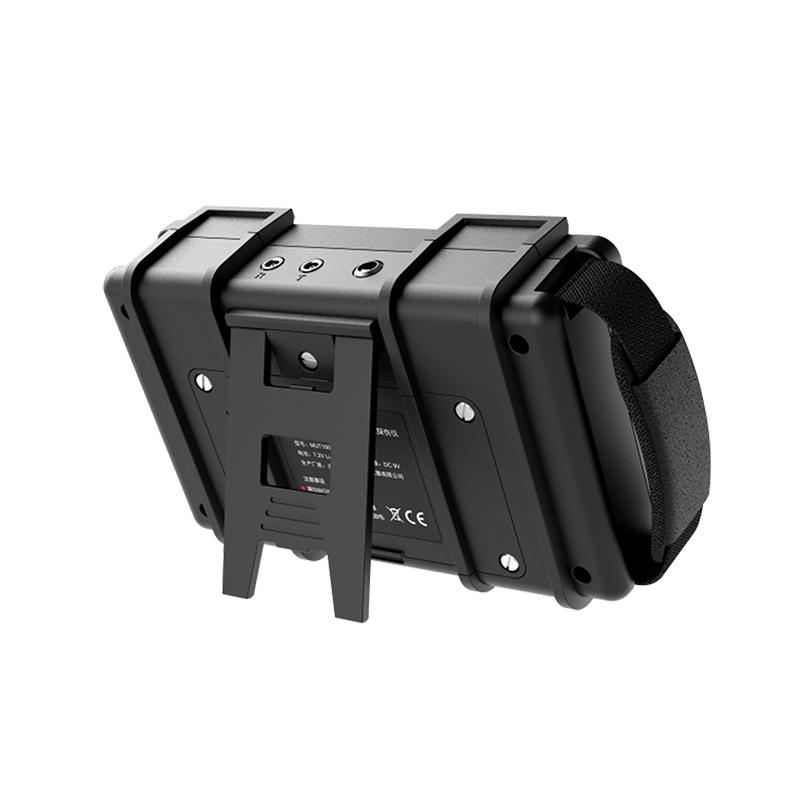

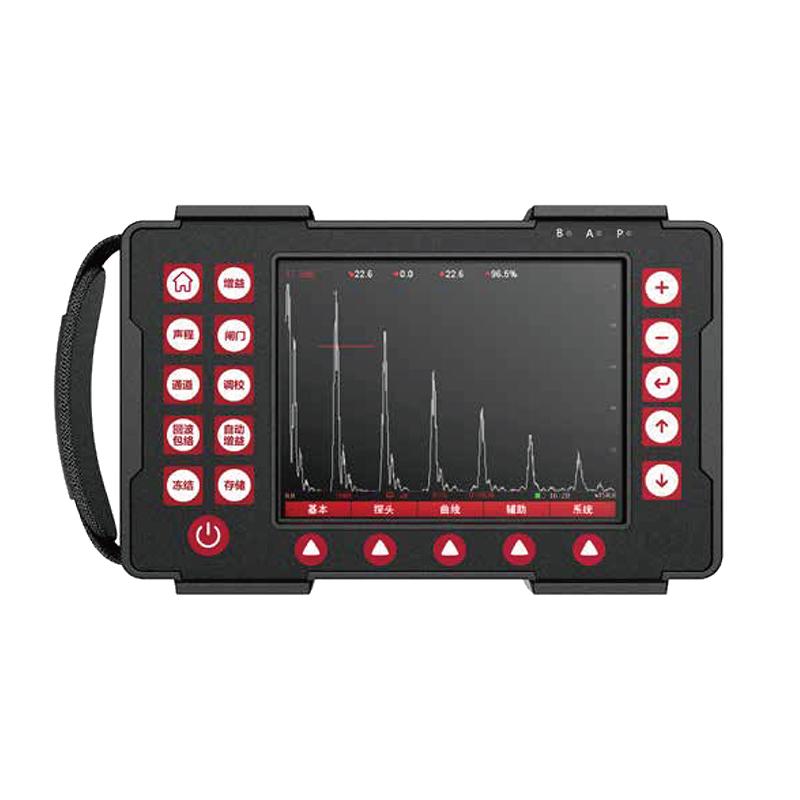

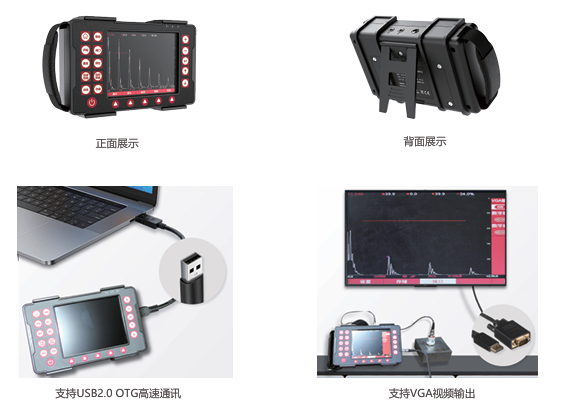

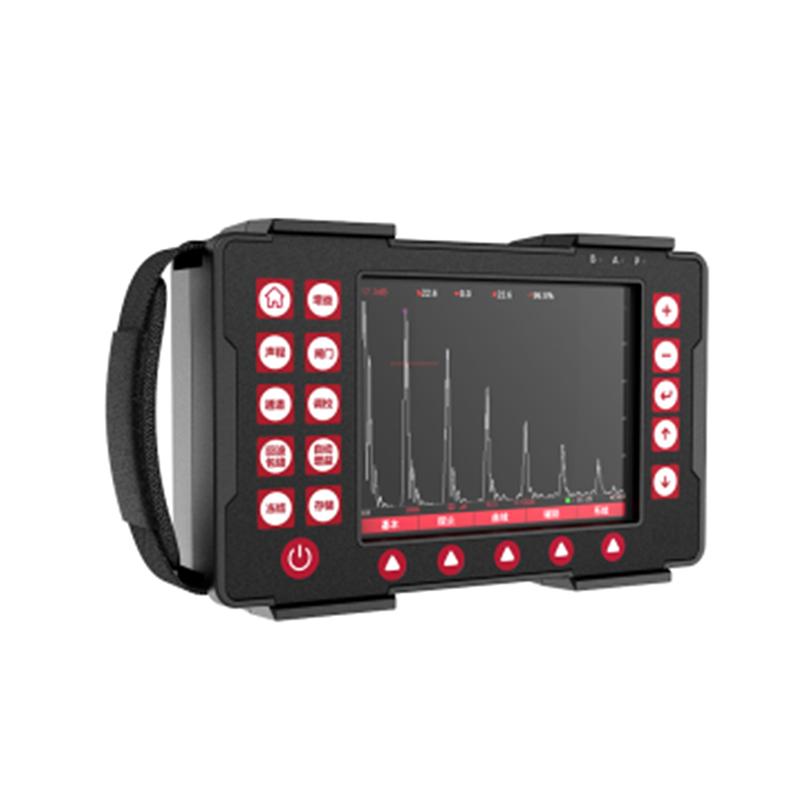

MITECH MUT100S digital ultrasonic flaw detection (UFD) instrument Picture

MUT100S all-digital ultrasonic flaw Detector, lightweight body, easy to carry, 640×480 digital true color LCD display, support brightness adjustment, full-screen display with a variety of color schemes, in different light environments can present defect waveforms in high definition, built-in high-frequency processor can achieve complex calculations and intelligent analysis, low-power design equipped with large-capacity lithium battery module, can be long standby for more than 8.5 hours. It also has a variety of communication modes such as mini-USB communication, Bluetooth communication, VGA interface, and digital input and output interface; Master-slave menu design, support multi-language version. Full waterproof, oil and dust up to IP65 protection level. It is a professional precision instrument required for defect detection, quality control, in-service safety monitoring and life assessment in the fields of petroleum, chemical industry, metallurgy, shipbuilding, aviation, railway, etc.

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
