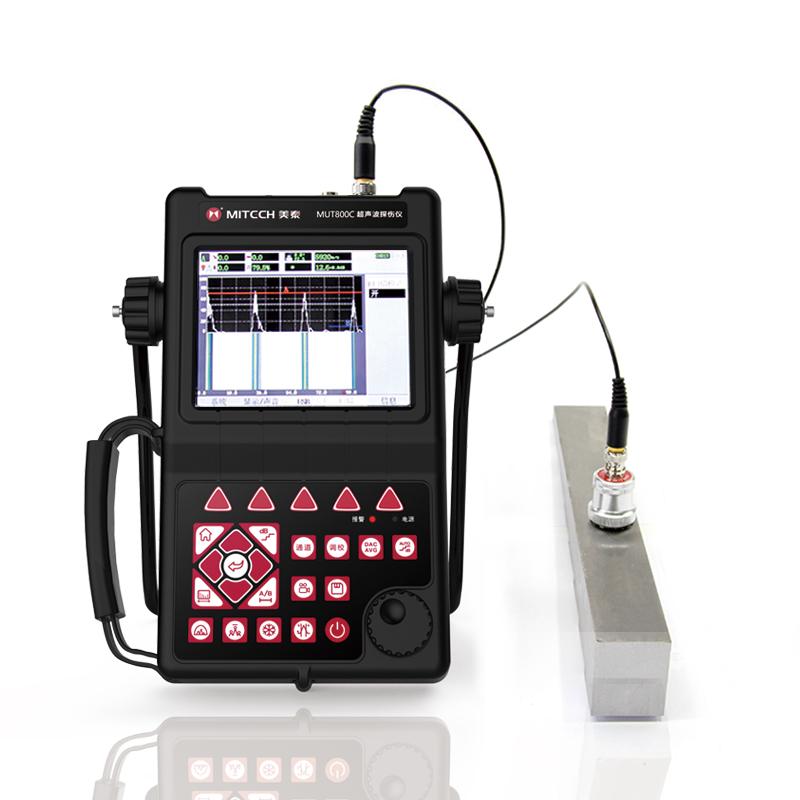

MITECH MUT800C digital ultrasonic flaw detection (UFD) instrument

MUT800C

Digital ultrasonic flaw detection (UFD) instrument

Equipped with 400MHz ARM M4 processor, supports intelligent defect analysis, Automatic calibration and DAC/AVG Linear dispersion generation, detection range 0-9999mm, fine waveform display, clear defect identification.

MUT800C intelligent digital ultrasonic flaw Detector is the main advantage product that Mattel has been focusing on for many years and carefully developed, which is designedWell-manufactured, easy to operate, and powerful, it combines the advantages of Nagisa, and has been favored by users since its inception, and it can be fast and convenientDetect, locate, evaluate and diagnose a wide range of defects (cracks, inclusions, porosity, etc.) inside the workpiece without damage and accuracy. Adopt allDigital TFT640x480 true color LCD screen, the operation interface style can be selected according to the environment, the LCD brightness can be adjusted, and the interface design is humanizedDelicate waveform display; Defects can be clearly found in full screen; It can be controlled with one hand, and routine operations such as curve making and probe calibration can be completed automaticallyYes; The CPU frequency of the core processor is 400M, which can quickly complete complex operations and realize intelligent defect analysis. The low-power design is equipped with high capacity and high performanceThe lithium-ion battery module can work continuously for more than 10 hours; All Chinese master-slave menu, focusing on user experience, integrating shortcut buttons, digital shuttle brigadeThe three operation modes of wheel and cross menu are integrated, and different usage habits can be operated freely; Multi-language versions are supported. Waterproof, oil-proof and dust-proofIP65 protection level. It is defect detection, quality control, and in-service safety monitoring in the fields of petroleum, chemical industry, metallurgy, shipbuilding, aviation, and railwayProfessional precision instruments necessary for life assessment.

Features

Gate alarm function

• The position, width and height of the gate can be adjusted freely

• Gate B supports incoming wave alarm or lost wave alarm mode

• Dual alarm mode with beep and LED light (LED light is especially suitable for noisy environments)

• The alarm function can be turned off at any time

Data storage capabilities

• Built-in large-capacity memory, no data loss when power is off

• Storage: channel parameters, waveform pictures, and video files

• Support 1000 sets of preset flaw detection parameter channels

• It can store 10,000 flaw detection echo signals and parameters

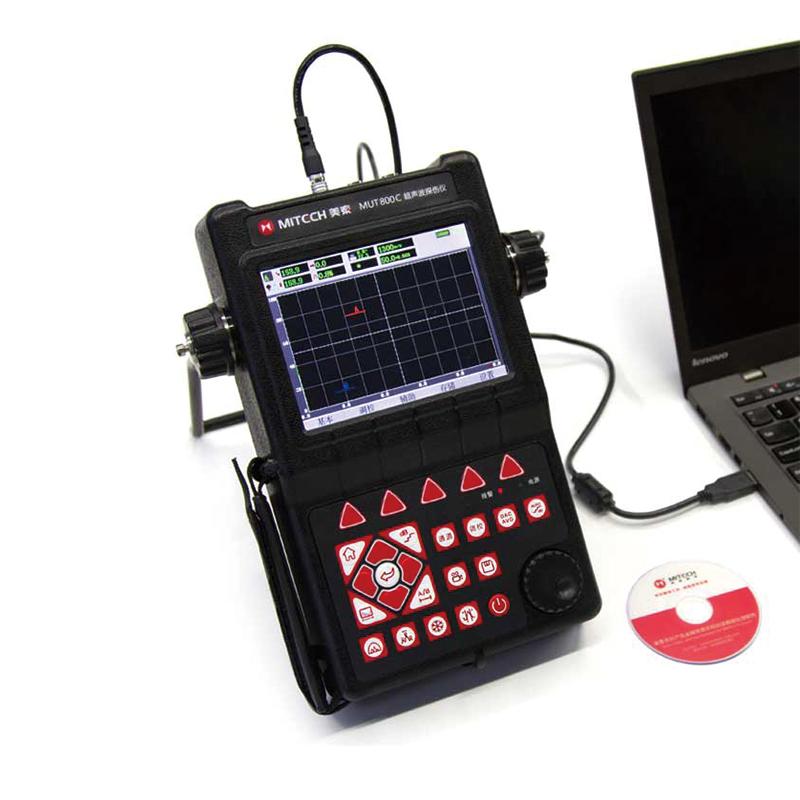

• Data transfer via USB interface is supported

Video recording function

• The flaw detection process can be recorded and saved as a video file

• Support local playback of the instrument and playback on the computer

• Maximum storage capacity: 100 video files, with a total duration of about 15 hours

• It is easy to learn flaw detection techniques and post-analysis

Other useful features

• A real-time clock records the date and time of the flaw detection

• USB2.0 high-speed transmission interface, support U disk mode and data connection mode

• Removable high-capacity lithium battery, support more than 10 hours of continuous work

Professional flaw detection

• Standard Support:Built-in flaw detection standards commonly used in various industries

• Weld Analysis:Graphical display of weld morphology and defect locations

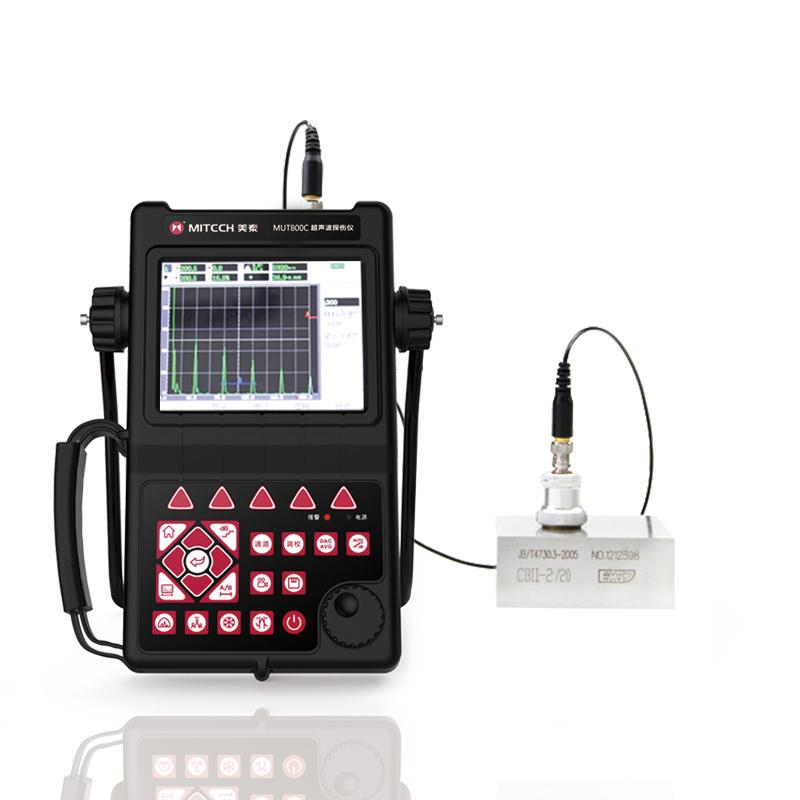

• Auto-Calibration:Probe parameters and sound velocity are automatically measured

• Defect Analysis:

        Real-time positioning (horizontal/depth/sound path)

        Quantitatively (equivalent dB value)

        Qualitative (Echo Envelope Waveform Analysis)

Advanced features:

• Surface workpiece correction

• Digital-analog dual-use mode

• The Φ value is automatically calculated

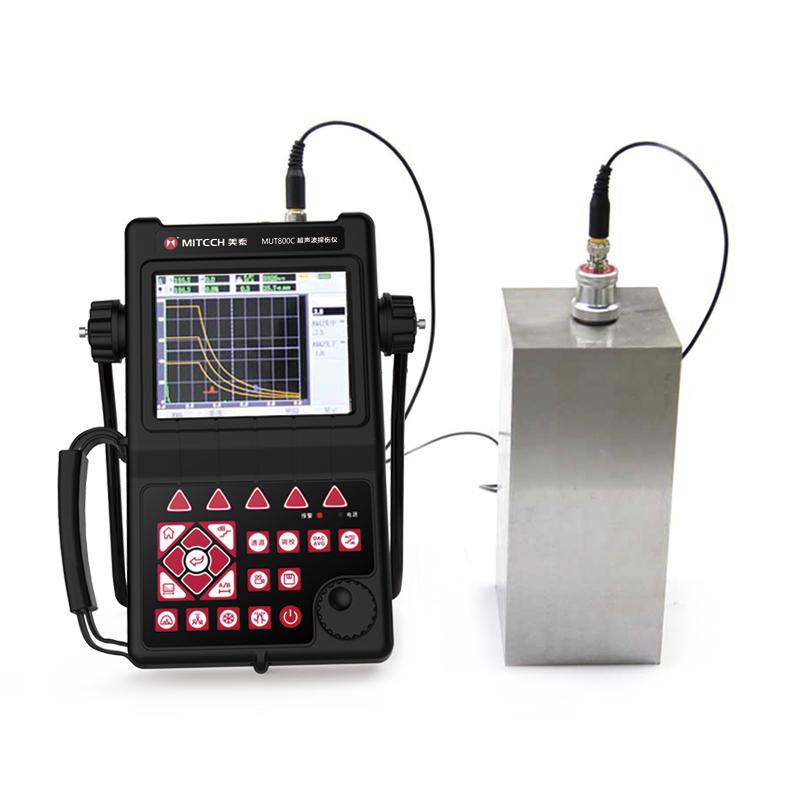

• DAC/AVG curves are automatically generated

• Crack depth measurement

• Analysis of the spread of the inside of the door

Display Optimization:

• Echo color coding

• Waveform freezing

• Color B-scan

• Crest memory function

Gain Control:

• The total gain is 110dB

• A variety of step values are available

• Fully automatic gain adjustment

Special Standard Support:

• AWS D1.1 standard

• Provides dynamic reflector defect grading

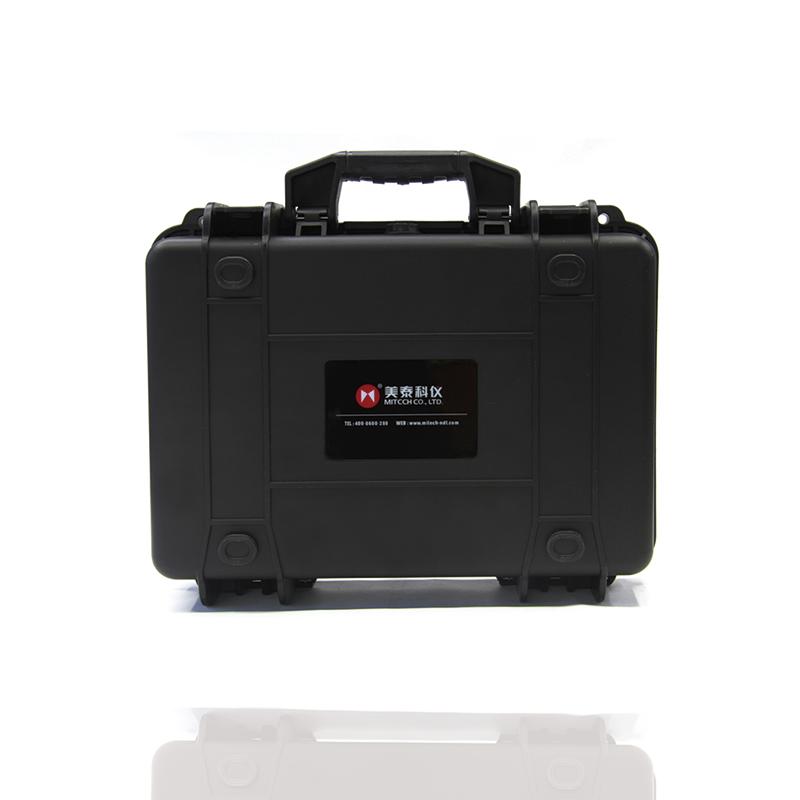

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
