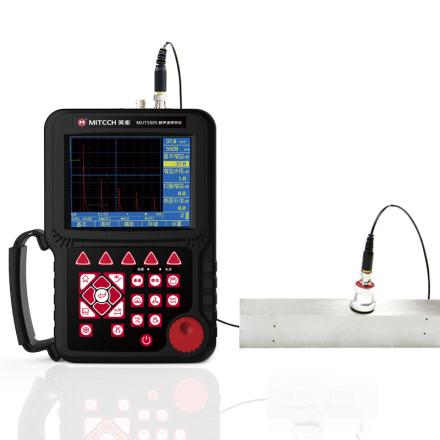

mitech MUT500S Vehicle inspection special ultrasonic flaw detection (UFD) instrument Specifications
Search
Brand：mitech
Model：MUT500S
Name：Vehicle inspection special ultrasonic flaw detection (UFD) instrument
Specifications
| Plug socket | BNC/LEMO optional |
| Total gain | 110 dB (with 0.1dB, 1dB, 2dB, 6dB step values) |
| Gate reading | Single and double gate readings are optional; peak readings in the gate |
| Filter band | (0.5~ 10) MHz can be automatically matched according to the probe Frequency, no need to manually set |
| Detection method | Positive half-wave, negative half-wave, full-wave, RF detection |
| Hardware real-time sampling | High resolution 10-bit AD converter, sampling speed 160MHz, high waveform fidelity |
| probe damping | 100Ω, 200Ω, 400Ω optional, to meet the different working requirements of Sensitivity and resolution |
| pulse width | Continuous adjustment in the range of (0.1 to 0.512) µs to match probes of different Frequencies |
| pulse amplitude | 300V, 500V, 700V grading selection, suitable for a wide range of probes |
| Relative Humidity | (20～95)%RH |
| Environmental temperature | (-10～50)℃ |
| exterior size | 263×170×61(mm) |
| standby time | > 6 hours |
| Power Supply | Direct Current (DC) 9V |
| alarm | Beep alarm, LED light alarm |
| gate | Inlet gate, loss gate; single gate reading, double gate reading |
| Probe type | Straight probe, oblique probe, dual crystal probe, penetration probe |
| electrical noise level | ≤10% |
| digital suppression | (0~80) %, does not affect linearity and gain |
| Sensitivity margin | > 55dB (200mm deep with 2 flat bottom holes) |
| resolution | >40dB(5P14) |
| Horizontal Linearity | ≤0.4% |
| Vertical Linearity | ≤3.0% |
| Dynamic range | ≥36dB |
| Speed of sound | (1000～15000)m/s |
| detection range | (0~9999) mm (steel medium and longitudinal waves) |
