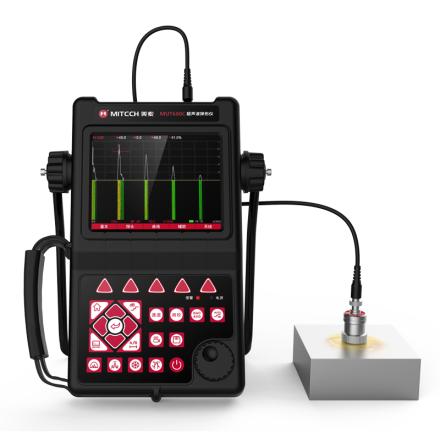

Specifications
| Operating System | Customized intelligent GUI embedded operating system, user-friendly design, a set of shortcut buttons, digital shuttle wheel, cross menu, a variety of operation modes in one, with detailed step prompts. |
| Attenuator error | Every 12dB +/- 1dB |
| vertical linearity error | ≤2.0% |
| horizontal linearity error | ≤0.1% |
| dynamic range | ≥36dB |
| Flaw detection sensitivity margin | > 65dB (200mm deep with 2 flat bottom holes) |
| electrical noise level | ≤8% |
| Operating frequency range | 0.5~ 20, 11 gears adjustable |
| pulse Voltage | 50~500 adjustable |
| detection range | 0~13000 (steel longitudinal wave) |
| pulse shift | -10~1000 (steel longitudinal wave) |
| Probe zero | 0 ~ 200 |
| material speed of sound | 300 ~ 15000 |
| damping | 25, 75, 200, 1000 four-speed adjustable |
| inhibit | 0 ~ 80 |
| Detection method | Negative detection/Forward detection/Bidirectional detection/Filtering/RF |
| Gain adjustment | 0~110: 0.1/1/2/6 step adjustment |
| network communication | USB2.0 OTG interface supports direct reading and writing U disk; supports customized WIFI wireless transmission, which can be |
| Flaw detection channel | 2000 datasets, including instrument settings, inspection status, and echo patterns |
| continuous video recording time | 100 hours, support importing video files to the computer |
| AWS D1.1/D1.5 | Calculate steel structure and bridge weld grades according to American Welding Society AWS D1. 1/1.5 |
| surface correction | Correction of Depth and Horizontal Distance of Oblique Probe Pipe |
| Crazing altimeter function | Calculation of welding crazing height based on oblique probe end reflection method |
| Gate expansion function | Amplify the echo in the gate to the entire echo area |
| DAC function | For making, setting, and applying DAC Linear dispersions |
| AVG function | For fabricating, setting up, and applying AVG Linear dispersions |
| screenshot function | Save the instrument screen as a picture and output it to the USB stick. |
| dynamic playback | Internal/U disk, internal echo recording function for about 3 minutes, U disk can record unlimited |
| dump function | Transfer the internal data set of the instrument to the U disk through the USB interface |
| gate | Gate mode: off/incoming/loss/measurement |
| Automatic gain function | Make the echo amplitude in the gate automatically adjust to the specified amplitude |
| Peak memory function | Display waveform envelope |
| Peak echo function | Record the echo waveform containing the highest echo |
| φ value calculation | After the peak echo of the defect is found during the flaw detection of the straight probe forging, the equivalent size of the defect can be automatically calculated and displayed |
| freeze function | Freeze screen waveform |
| Automatic correction function | Used to correct the sound speed of the material and the zero point of the probe, the correction mode: sound speed + zero point/sound speed/zero point |
| Angle measurement function | For measurement of probe angle |
| auto freeze | The signal in the A/B gate automatically freezes when it exceeds the gate level |
| Color coded B-scan | Real-time scanning and cross-sectional display can display the shape of workpiece defects, making the detection results more intuitive |
| Weld diagram | Generates a schematic diagram of the weld, visually displaying the location of the weld defect and the echo path |
| Display | High luminance 5.7 Color TFT LCD, 640 × 480 pixels |
| Operating Time | ≥ 15 hours of continuous work without charging |
| Remote cloud management | Cloud management functions such as remote software upgrade |
| Instrument performance self test | It can automatically test the combined performance indicators of the instrument and probe (including: horizontal linear error, vertical linear error, resolution, dynamic range, sensitivity margin), and generate test reports. |
| Swirling/spinning bracket | The instrument has a swirl/spin bracket, which can be adjusted to obtain any Viewing Angle by adjusting the swirl/spin angle of the swirl/spin bracket for more convenient and comfortable control of the instrument |
| Animation demonstration operation video | A complete set of animation demonstration operation training videos is included, which is convenient for mastering the operation and use steps. |
| Language version | Chinese and English version |
Packing list
machine X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/49542/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
