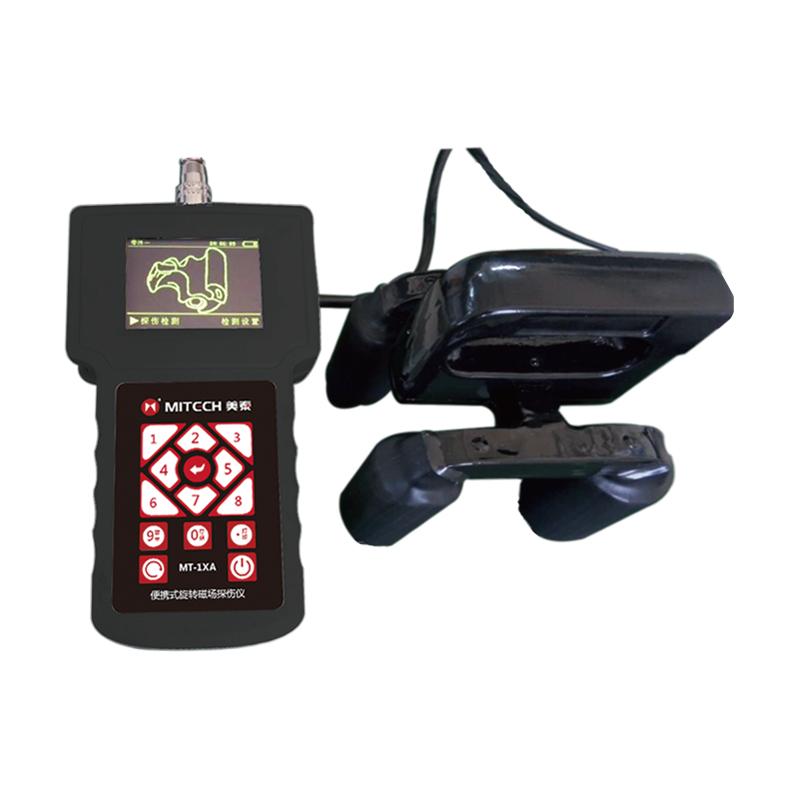

MITECH MT-1XA Digital portable swirl/spin magnetic field Flaw Detector

MT-1XA

Digital portable swirl/spin magnetic field Flaw Detector

Black light irradiance > 4000 µw/cm ², white light intensity > 2000lux and the white light fluorescence of the lighting device can be switched, continuous working time ≥ 5h, charging time 3-4h, lifting force ≥ 118N (not less than 12 kg) and high comprehensive sensitivity (A-type 15/100 standard test piece manual engraving shows clearly)

Product Overview

MT-1XA digital portable rotating magnetic field flaw Detector is based on the principle of magnetic particle adsorption by leakage magnetic field, and the flaw detection is realized by observing the density of adsorbed magnetic particles. It comes standard with a cross-type yoke probe and a four-legged roller design for easy continuous multi-directional flaw detection, making flaw detection more labor-intensive. The large-capacity lithium battery pack is used to provide magnetized power for the instrument, which solves the disadvantages of the traditional magnetic particle flaw Detector relying on 220V power supply, low power consumption, high flaw detection efficiency, easy to use, and the battery can be charged online or offline. The built-in industrial high-definition camera can shoot and record the inspection results in real time, and output the actual defect schematic diagram through the PC to analyze the flaw detection results, which can make the quality control of the enterprise more traceable. It is widely used in non-destructive testing of welds, pipes, boilers and other workpieces, and is an innovative product of magnetic particle flaw detection.

Functional use

• It is equipped with a cross-type yoke probe as standard, and the four-legged roller design can easily realize continuous multi-directional flaw detection, which makes flaw detection more labor-saving and greatly improves the flaw detection efficiency.

• The electromagnetic yoke has built-in LED illuminators, white light and fluorescent light sources, and the brightness of the illumination is adjustable, which can meet the needs of flaw detection in different environments;

• Built-in industrial high-definition micro camera, which can take photos and record detection results in real time, and effectively monitor the parts that cannot be detected by the naked eye;

• Intelligent high-definition 3.5-inch color LCD screen, clear visualization of the surface status of the workpiece and defect magnetic marks under sunlight, simpler operation, more powerful functions, more stable performance;

• The electromagnetic yoke adopts pulsating power supply technology, which can work continuously and uninterruptedly, and is not limited by the gap time required by the traditional electromagnetic yoke;

• The new large-capacity lithium battery is used for power supply, which solves the disadvantages of the traditional magnetic particle flaw Detector relying on 220V power supply, with low power consumption, small size, larger flaw detection depth, higher sensitivity, and the battery can be charged online and offline;

• It has computer maintenance monitoring and flaw detection management software, which automatically identifies images, quantifies damage analysis, monitors the flaw detection process, and traces the flaw detection results, which meets the requirements of standardized operation and management;

• With large-capacity memory, the flaw detection results can be output to the computer through the USB interface, and the flaw detection report can be exported in Excel format.

• This product is portable and compact, equipped with an instrument bag, and the operator can straddle the instrument diagonally around the waist, which greatly reduces the labor intensity of flaw Detectors and improves work efficiency.

Operating Principle

MT-1XA digital portable rotating magnetic field flaw Detector is based on the principle of magnetic particle adsorption by leakage magnetic field, and the flaw detection is realized by observing the density of adsorbed magnetic particles. It comes standard with a cross-type yoke probe and a four-legged roller design for easy continuous multi-directional flaw detection, making flaw detection more labor-intensive. The large-capacity lithium battery pack is used to provide magnetized power for the instrument, which solves the disadvantages of the traditional magnetic particle flaw Detector relying on 220V power supply, low power consumption, high flaw detection efficiency, easy to use, and the battery can be charged online or offline. The built-in industrial high-definition camera can shoot and record the inspection results in real time, and output the actual defect schematic diagram through the PC to analyze the flaw detection results, which can make the quality control of the enterprise more traceable. It is widely used in non-destructive testing of welds, pipes, boilers and other workpieces, and is an innovative product of magnetic particle flaw detection.

Instrument features:

• It is equipped with a cross-type yoke probe as standard, and the four-legged roller design can easily realize continuous multi-directional flaw detection, which makes flaw detection more labor-saving and greatly improves the flaw detection efficiency.

• The electromagnetic yoke has built-in LED illuminators, white light and fluorescent light sources, and the brightness of the illumination is adjustable, which can meet the needs of flaw detection in different environments;

• Built-in industrial high-definition micro camera, which can take photos and record detection results in real time, and effectively monitor the parts that cannot be detected by the naked eye;

• Intelligent high-definition 3.5-inch color LCD screen, clear visualization of the surface status of the workpiece and defect magnetic marks under sunlight, simpler operation, more powerful functions, more stable performance;

• The electromagnetic yoke adopts pulsating power supply technology, which can work continuously and uninterruptedly, and is not limited by the gap time required by the traditional electromagnetic yoke;

• The new large-capacity lithium battery is used for power supply, which solves the disadvantages of the traditional magnetic particle flaw Detector relying on 220V power supply, with low power consumption, small size, larger flaw detection depth, higher sensitivity, and the battery can be charged online and offline;

• It has computer maintenance monitoring and flaw detection management software, which automatically identifies images, quantifies damage analysis, monitors the flaw detection process, and traces the flaw detection results, which meets the requirements of standardized operation and management;

• Using large-capacity memory, the flaw detection results can be output to the computer through the USB interface, and the flaw detection report can be exported in Excel format;

• This product is portable and compact, equipped with an instrument bag, and the operator can straddle the instrument diagonally around the waist, which greatly reduces the labor intensity of flaw Detectors and improves work efficiency.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
