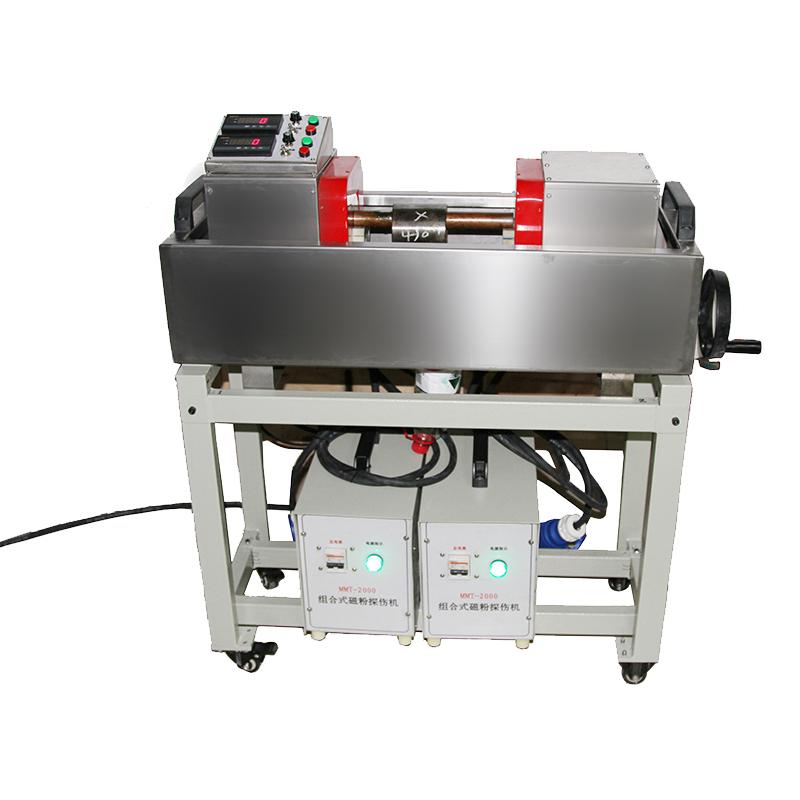

MITECH Combined Portable Magnetic Particle Flaw Detector MMT-2000

MMT-2000

Combined Portable Magnetic Particle Flaw Detector

Load cycle: ≤ 30%, control mode: manual, sensitivity: A1 type test piece (15/50) shows clearly, electrode spacing: 0~270mm, coil inner diameter: 250 * 250mm, longitudinal magnetization: 0~8000AT, circumferential magnetization: 0~500A.

Product Overview

MMT-2000 Magnetic Particle Flaw Detector Demonstrator is a special product designed and developed for the demonstration needs of teaching and training institutions. Its innovative combined modular structure highly integrates the functions of each part, with small size, light weight and easy installation. It is suitable for teaching and demonstration of magnetic particle flaw detection in classrooms and laboratories. It solves many drawbacks such as large size and difficult to move of the traditional large-scale magnetic particle flaw Detector. Compatible with 220V conventional and 380V industrial Voltages, circumferential and longitudinal magnetization, and can also be used for contact method (strut probe). It is widely used in the detection of cracks and slag inclusions caused by forging, quenching, grinding, fatigue and other small ferromagnetic workpieces such as bolts, pins, bushings, gears, ring gears, etc. It is a wise choice for education, teaching and training institutions.

Functional use

• Compared with the traditional bed magnetic particle Detector, it is small in size, light in weight and easy to transport. The combined structure can be detached, without the help of forklifts and other large machinery and equipment, manpower can be handled, suitable for all kinds of training and teaching.

• Modular design, easy to maintain, especially suitable for all kinds of temporary training places;

• It can be equipped with a portable ultraviolet lamp for fluorescence observation, which can clearly display the flaw detection results;

• The yoke spacing is adjustable, which can be used to detect workpieces of different sizes and shapes, and has a wide range of applications;

• It can be equipped with a strut probe to realize the strut method flaw detection, which is suitable for flaw detection of irregular parts and is mostly used for flaw detection of castings;

• Circumferential, longitudinal, composite magnetization (Voltage 380V)

• The current is continuously adjustable, and the true RMS value is displayed;

• The power supply can meet 220V, 50Hz/380V, 50Hz, which is flexible and convenient to meet the different power supply modes on the customer's site;

• It can be equipped with aluminum alloy profile shading chamber, which is convenient for the observation of flaw detection results

• It can be equipped with a flexible coil to realize the longitudinal magnetization of complex workpieces (local);

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
