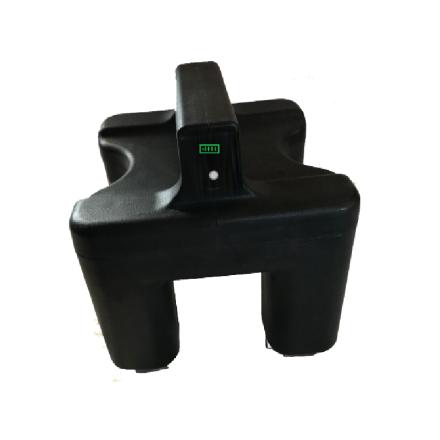

mitech MT-1XYC Portable integrated swirling/spinning Magnetic Particle Flaw Detector Specifications
Search
Brand：mitech
Model：MT-1XYC
Name：Portable integrated swirling/spinning Magnetic Particle Flaw Detector
Specifications
| white light intensity | More than 2000lux |
| Black light irradiance | ＞4000µW/cm² |
| Charging time | 3-4h |
| Charging Power Supply | 21V/2A |
| Lithium battery pack Weight | 0.6kg |
| Lithium battery pack Volume | 95*40*98 |
| Battery installation method | Replaceable |
| work load factor | 100% (continuous and uninterrupted operation) |
| Continuous Operating Time | Work at full power for more than 5 hours (replace the battery) |
| Comprehensive sensitivity | A-type 15/100 standard test piece manually grooved display is clear (at any power) |
| lift | ≥ 118N (at any power level) |
| Electromagnetic yoke Weight | 2.5kg |
| Pole center spacing | 100*100mm |
| Electromagnetic yoke size | 185mm*150mm*130mm |
Packing list
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/49551/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
