Brand：mitech
Model：MT-1XC

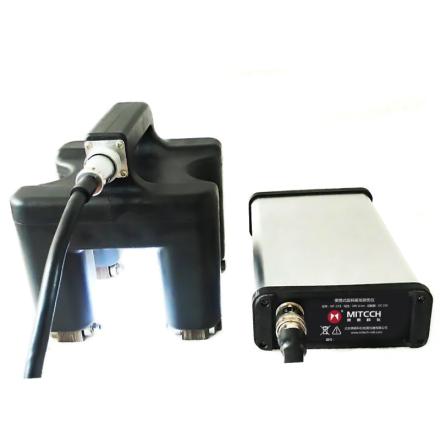

Name：Digital portable swirl/spin magnetic field Flaw Detector
Specifications
| Black light irradiance | ＞4000µw/cm² |
| white light intensity | ＞2000lux |
| Continuous Operating Time | ≥4h |
| Charging time | 4-5h |
| lift | ≥ 118N (lifting force not less than 12kg) |
| Comprehensive sensitivity | A-type 15/100 standard test piece manually grooved display is clear |
| lighting device | White light fluorescence can be switched (MT-1XB only has white light) |
| Working Voltage | DC 14V-21V |
| The output waveform of the instrument | communicate |
| Magnetic power Dimensions | 195mm×123mm×50mm |
| Power Weight | 1.6kg |
| Electromagnetic yoke Weight | 2.8kg |
| Yoke Volume | 170*140*140mm |
| Pole center spacing | 100*100mm |
| lithium battery nominal Voltage | 18V |
| Rated Capacity of lithium battery | 12.8Ah |
| Lithium battery charging limit Voltage | 21V |
| Charging Power Supply | 220V，50Hz |
Packing list
After-sales instructions
Warranty days: 365 days
