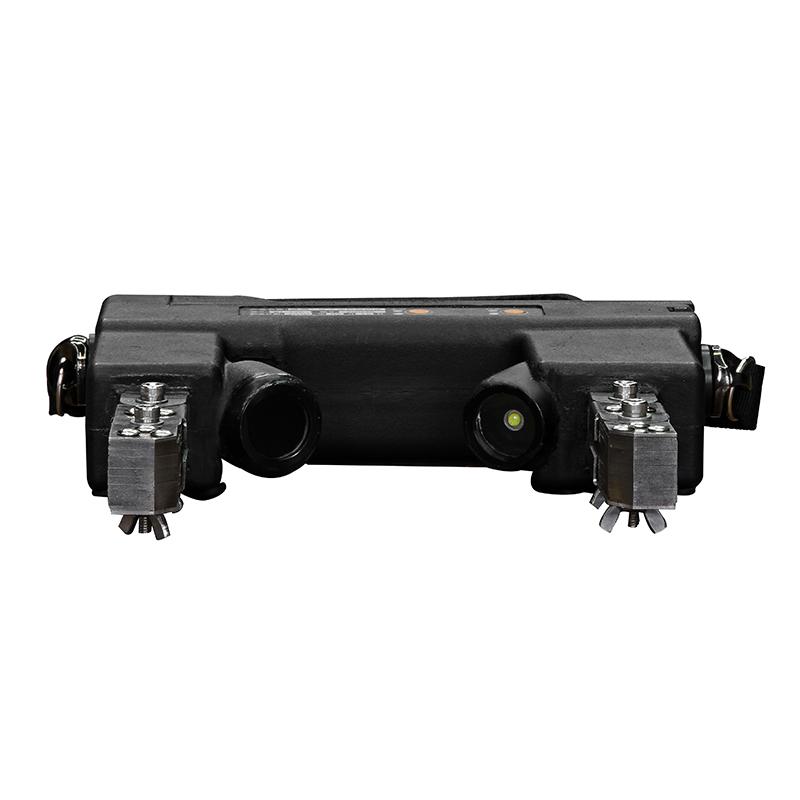

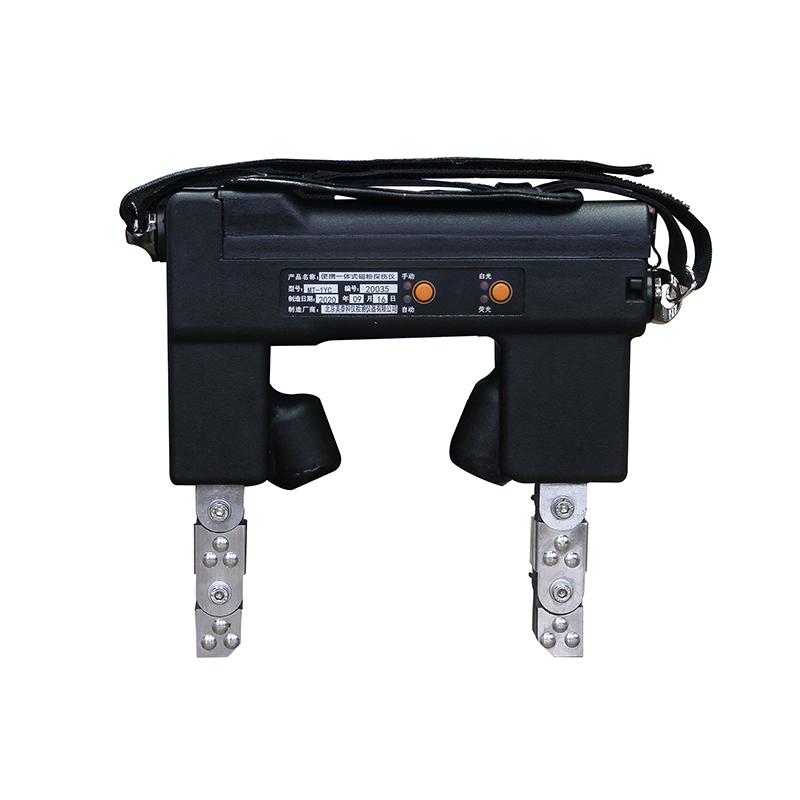

MITECH Magnetic Particle Flaw Detector MT-1YB White light, no video recording

MT-1YB

Magnetic Particle Flaw Detector

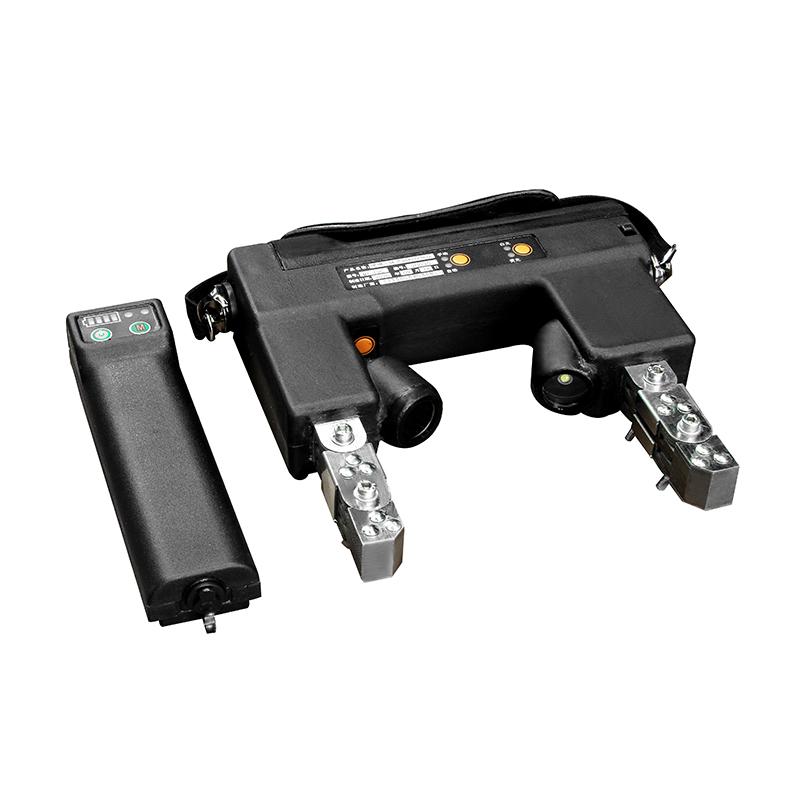

Portable integrated design (AC magnetization power supply has a built-in magnetic yoke, integrating magnetic detection/power supply/lighting functions), large-capacity lithium batteries can be disassembled and assembled independently, and 5 hours of long standby (support no power supply in the field and high-altitude work)

Product Overview

MT-1Y series portable integrated magnetic particle flaw Detector, with MT-1YA, MT-1YB, MT-1YC three models, they are based on the traditional magnetic particle flaw Detector improved design products, the AC magnetized power supply is integrated inside the yoke, set magnetic detection, power supply, lighting and other functions in one, compact structure, small size, light weight, good sealing effect, strong insulation performance, safe and reliable, on-site flaw detection is more efficient and convenient. The large-capacity lithium battery pack can be disassembled and assembled independently, flexibly replaced on site, no connection wires are required, cost-saving, and the ultra-long standby can work continuously for more than 5 hours, especially suitable for on-site flaw detection and high-altitude work without power supply in the field, and it realizes the innovation of magnetic particle flaw detection integration.

Functional use

MT-1Y series portable integrated magnetic particle flaw Detector, with MT-1YA, MT-1YB, MT-1YC three models, they are based on the traditional magnetic particle flaw Detector improved design products, the AC magnetized power supply is integrated inside the yoke, set magnetic detection, power supply, lighting and other functions in one, compact structure, small size, light weight, good sealing effect, strong insulation performance, safe and reliable, on-site flaw detection is more efficient and convenient. The large-capacity lithium battery pack can be disassembled and assembled independently, flexibly replaced on site, no connection wires are required, cost-saving, and the ultra-long standby can work continuously for more than 5 hours, especially suitable for on-site flaw detection and high-altitude work without power supply in the field, and it realizes the innovation of magnetic particle flaw detection integration.

Instrument features:

• The battery is integrated with the yoke, no need to connect the wire, no need to carry the battery, small size, light weight, good sealing effect, strong insulation performance, non-seepage of wet flaw detection, and easy to use. It solves the defects such as broken wire and unsealed plug;

• Intelligent identification of magnetization, touch the workpiece, automatic magnetization, leave the workpiece magnetization stop, no need to push the button, no need to press the button switch during the flaw detection operation, you can operate the magnetization offline by hand, and the operation is simpler;

• Manual magnetization and automatic magnetization can convert work at will;

• Instrument double switch design, with a backup switch on the battery;

• The lifting force and sensitivity are not affected by the battery level, and can also be accurately detected in low power mode;

• The automatic identification and control function of the instrument ensures the stability at no load;

• The instrument has intelligent start and stop functions, and it will automatically shut down if it does not work for 4 minutes in the boot state, and the lithium battery can be replaced at will;

• It is equipped with a power indicator to display the battery level in real time;

• The yoke spacing is adjustable, equipped with a foot adjustment tool, and the probe foot adjustment is convenient and fast;

• One machine for two purposes, fluorescent white light can be switched, and the illumination is strong and the range is large, (MT-1YB only has white light source);

• Two independent light source design, with independent white light illuminator and fluorescent illuminator, individually controlled; (MT-1YB Two Independent White Light Overall Control)

• The instrument has the whole process of recording, the instrument comes with WIFI transmission function, no need for external network, can be connected to a mobile phone or tablet, can realize the functions of video recording, photography, etc., and has traceability of flaw detection results (MT-1YA has this function);

• Using high-brightness LED illumination light source, it is suitable for dry powder, magnetic suspension, ordinary light and fluorescence flaw detection;

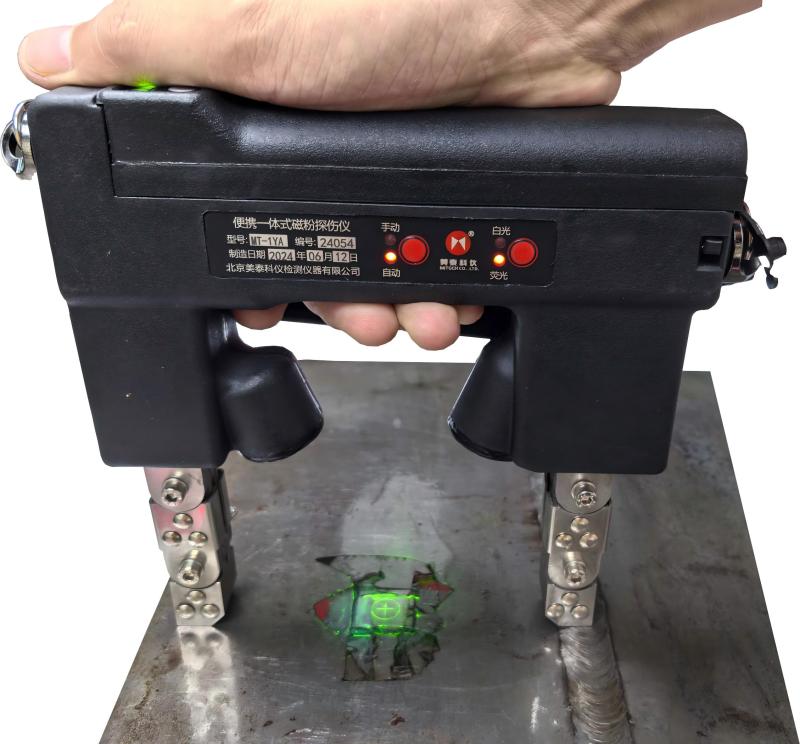

• The instrument is equipped with a special instrument package, and the operator can realize the flaw detection operation with one person and one hand, which greatly reduces the labor intensity of the flaw Detector personnel and improves the detection efficiency;

• The electromagnetic yoke adopts pulsating power supply technology, which can realize continuous and uninterrupted work, and is not limited by the gap time required by the traditional electromagnetic yoke;

• Combining all the advantages of traditional magnetic particle flaw Detectors, it detects near-surface defects quickly, clearly and accurately.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
