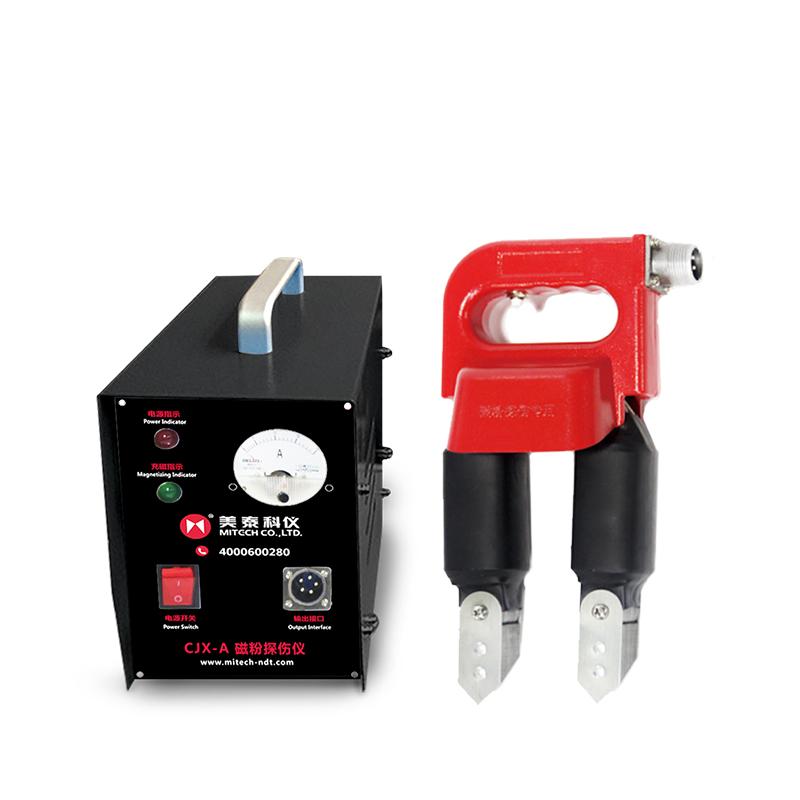

MITECH Multifunctional Magnetic Particle Flaw Detector CJX-A

CJX-A

Magnetic Particle Flaw Detector

Small size, light weight, easy to operate, set a variety of product functions in one, equipped with three probes to achieve three flaw detection functions, suitable for multi-industry complex workpiece defect detection, intuitive detection and can determine the nature of defects

Product Overview

CJX-A multi-functional magnetic particle flaw Detector is a new type of magnetic particle flaw Detector designed and produced by our company by absorbing the advantages of similar products at home and abroad. It is small in size, light in weight, easy to operate, and integrates multiple functions of many similar products. The instrument can be equipped with A, D, O three kinds of probes, can realize magnetic clamp flaw detection, electromagnetic yoke flaw detection, ring flaw detection three kinds of flaw detection functions, is petroleum, chemical, metallurgy, shipbuilding, aviation, railway and other fields defect detection, quality control, in-service safety monitoring and life assessment necessary professional precision instruments.

Functional use

Aircraft manufacturing, boilers and pressure vessels, electric power, oil fields, shipbuilding, steam turbine and internal combustion engine parts, coal mines, machinery, standard parts, oil pump nozzles, auto parts, bridge building, chemical industry, railways, large machinery parts, steel structure equipment and other industry products; Surface and near-surface defects caused by forging, quenching, welding, fatigue, etc., such as chain rods, crankshafts, bearings, high-strength bolts, springs, forgings, petrochemical pipe fittings, valves, blades, gears, anchor chains, welds and other workpieces with complex geometric shapes.

Operating Principle

If there are defects (cracks, folds, inclusions, etc.) on the surface of the object or near the surface, the magnetic field lines will produce magnetic flux leakage near these defects, and when the magnetic particle with good permeability (usually magnetic iron oxide powder) is applied to the object, the leakage magnetic field near the defect will attract the magnetic particle, pile up to form visible magnetic particle traces, and form visible magnetic traces under suitable lighting, thus showing the position, size, shape and severity of continuity, Defects are displayed.

Operating Conditions

Ambient temperature: operating temperature -10°C~+40°C

Storage temperature: -20°C~+70°C

Relative Humidity: ≤80%

There is no strong vibration, no strong magnetic field, no corrosive medium and no serious dust in the surrounding environment

Instrument features:

• According to the magnetic interaction between the leakage magnetic field and the magnetic particle, the shape, location, size and severity of the defect can be intuitively displayed, and the nature of the defect can be determined.

• The application of the new power mode has improved the sensitivity performance of the product in both the depth of defect detection and the surface detection.

• Adjustable yoke spacing to expand the practicability of the instrument;

• It has the function of powering on and lighting, which is convenient for use in poor light conditions;

• Equipped with four different optional magnetic probe devices, it enhances the adaptability and accuracy of the measurement of different shapes of workpieces;

• Using a variety of magnetization methods, it is almost not limited by the size and geometry of the part, and can pick up and measure all parts of the workpiece;

• The thyristor is used as the magnetizing switch, and the ergonomic design is adopted, which is convenient for the Detector to control the magnetization switch at any time when holding the probe;

• The inspection and flaw detection speed is fast, the process is simple, and the cost is low;

• It can detect defects under the surface of the workpiece from 0.5 to 3 mm, and for larger pores, the detection depth of DC magnetization can reach 5 mm;

• With extremely high detection sensitivity, the magnetic marks formed by the accumulation of magnetic particles on the defect have a magnifying effect, and the minimum width of the detection can be up to 0.1 microns.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
