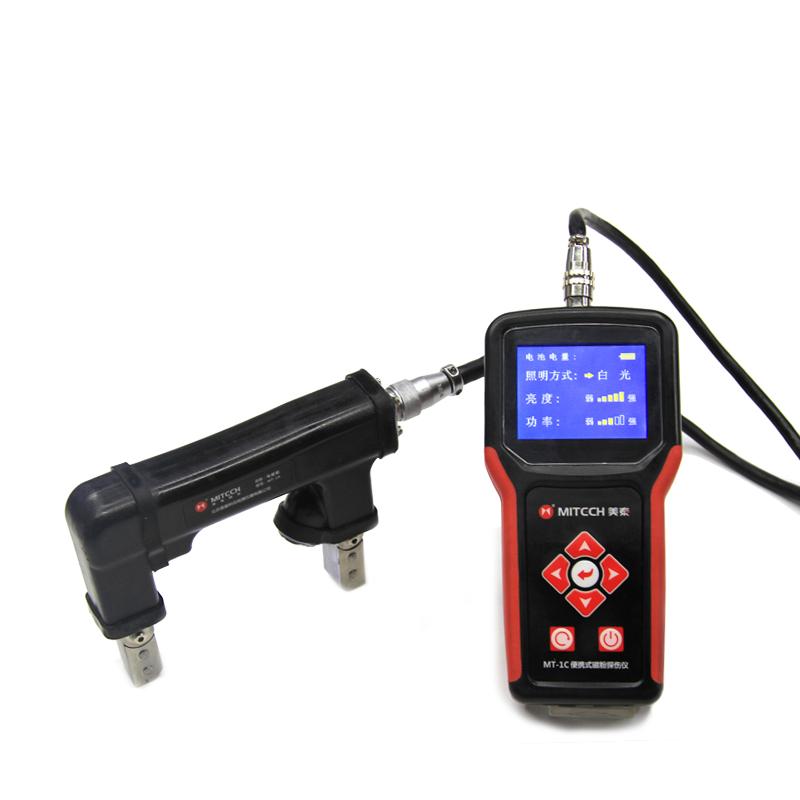

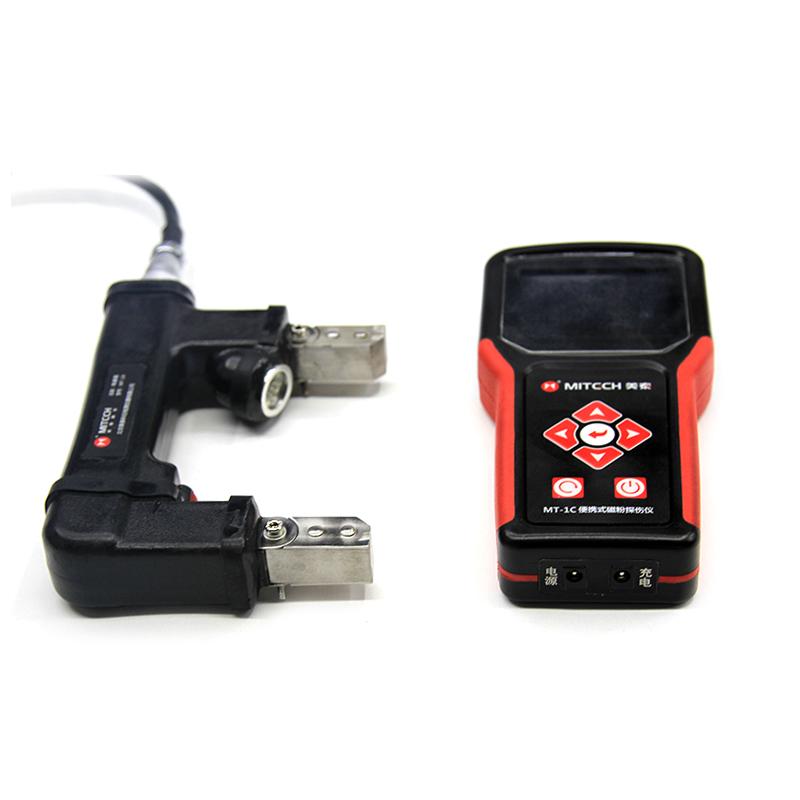

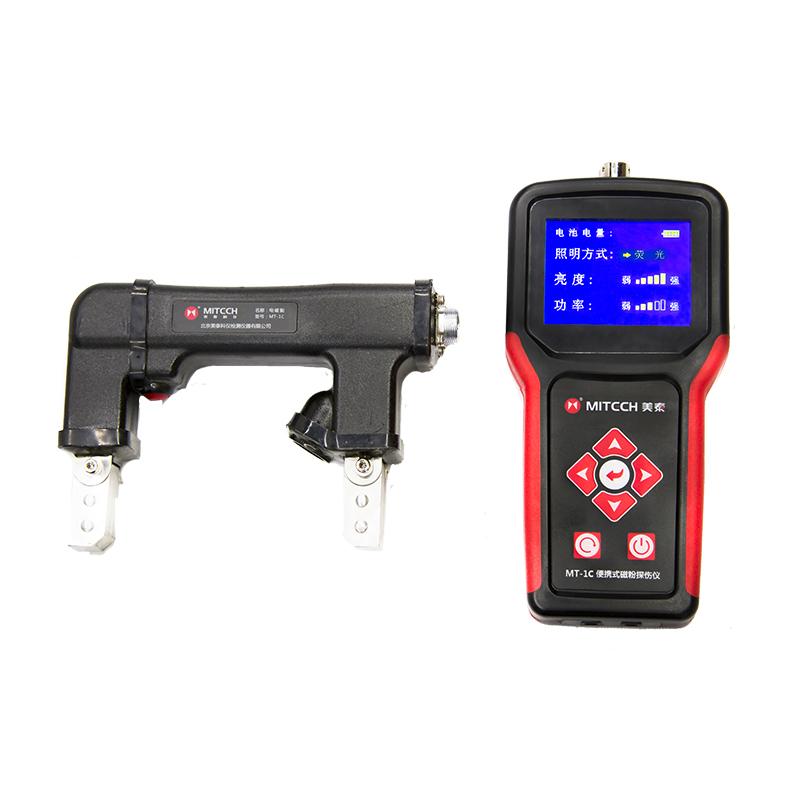

MITECH Portable Magnetic Particle Flaw Detector (White, Fluorescent) MT-1C

MT-1C

Portable Magnetic Particle Flaw Detector (White, Fluorescence)

18V/6400mAh lithium battery, continuous work > 4 hours, 3.5-inch smart color screen display status, fluorescent/white light dual-use lighting (illumination > 1000lx), electromagnetic yoke pole distance 75-180mm/lifting force ≥ 45N, 0.8kg portable body (100 × 200 × 35mm)

Product Overview

MT-1C portable magnetic particle flaw Detector uses large-capacity lithium battery pack power supply, and the direct current provided by the rechargeable battery is processed by frequency conversion inverter and signal phase shift, providing magnetized power supply for the magnetic particle flaw Detector, which solves the drawbacks of the traditional magnetic particle flaw Detector relying on 220V power supply; Low power consumption, one charge can work continuously for more than 4 hours, and the battery can be charged online and offline. It is especially suitable for field flaw detection and aerial work without power supply in the field, and it realizes the innovation of magnetic particle flaw detection.

Functional use

Aircraft manufacturing, boilers and pressure vessels, electric power, oil fields, shipbuilding, steam turbine and internal combustion engine parts, coal mines, machinery, standard parts, oil pump nozzles, auto parts, bridge building, chemical industry, railways, large machinery parts, steel structure equipment and other industry products; Surface and near-surface defects caused by forging, quenching, welding, fatigue, etc., such as chain rods, crankshafts, bearings, high-strength bolts, springs, forgings, petrochemical pipe fittings, valves, blades, gears, anchor chains, welds and other workpieces with complex geometric shapes.

Operating Principle

If there are defects (cracks, folds, inclusions, etc.) on the surface of the object or near the surface, the magnetic field lines will produce magnetic leakage near these defects, and when the magnetic particle with good magnetic permeability (usually magnetic iron oxide powder) is applied to the object, the leakage magnetic field near the defect will attract the magnetic particle, accumulate to form visible magnetic particle traces, and form visible magnetic traces under suitable lighting, so as to show the position, size, shape and severity of continuity to display the defect.

Operating Conditions

Ambient temperature: operating temperature -10°C~+40°C

Storage temperature: -20°C~+70°C

Relative Humidity: ≤80%

There is no strong vibration, no strong magnetic field, no corrosive medium and no serious dust in the surrounding environment

Instrument features:

• Intelligent high-definition 3.2-inch color LCD display, which can display battery power, lighting mode, lighting brightness and output power;

• The large-capacity lithium battery pack is powered by a large capacity and can be carried on site at will, which solves the disadvantages of the traditional magnetic particle flaw Detector relying on 220V power supply, with low power consumption and small size, and the battery can be charged online or offline. It is especially suitable for field and high-altitude flaw detection;

• The brightness, illumination mode, power, and yoke spacing can be adjusted to meet the needs of flaw detection in different environments, and the setting state can be stored;

• The application of the new power mode has improved the depth of the detection defect and the sensitivity of the detection surface.

• The electromagnetic yoke adopts pulsating power supply technology, which can work continuously and uninterruptedly, and is not limited by the gap time required by the traditional electromagnetic yoke;

• It combines all the advantages of traditional magnetic particle flaw Detectors to detect near-surface defects quickly, clearly and accurately;

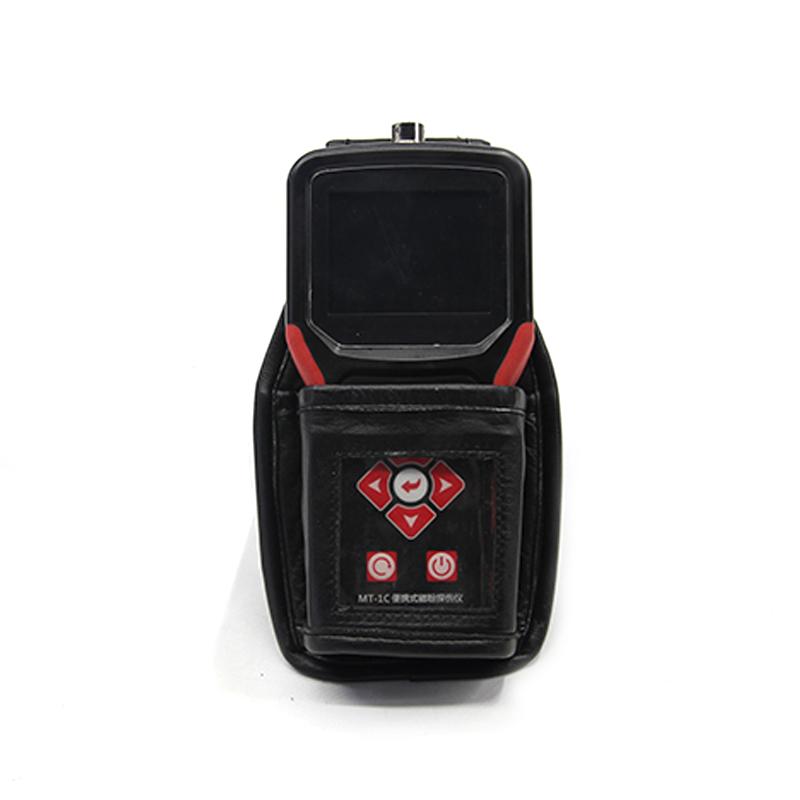

• The instrument is small and equipped with an instrument bag, and the operator can straddle the instrument diagonally around the waist, which greatly reduces the labor intensity of the flaw Detector personnel and improves work efficiency.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
