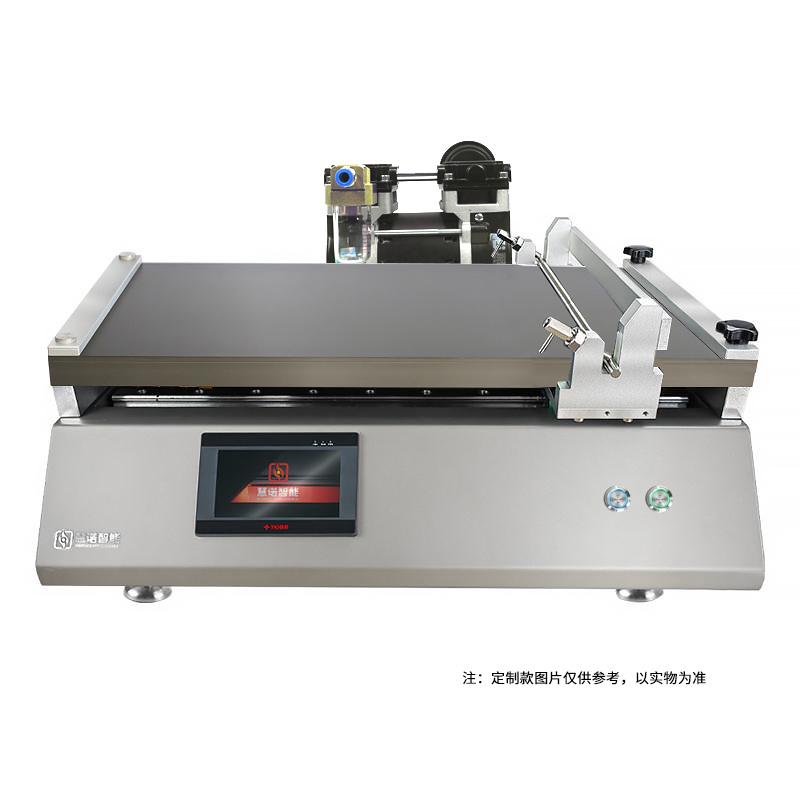

HuiNuo TM1200Pro/01 bar Vacuum chuck coater Effective area 300 * 220mm

TM1200pro/01

Automatic Film Applicator

Coating method bar Spreader, coating speed 1~ 300mm/s stepless speed regulation (can be customized), effective coating area 300 * 220mm (can be customized), meyer rod coating accuracy +/- 0.001mm, Vacuum chuck size 300 * 220mm (can be customized), drive motor servo motor

Overview

The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.

This coating machine is a line rod type automatic coating machine,With vacuum adsorption function,The newly created wire rod installation method greatly improves the coating efficiency, is easy to clean, supports speed control and coating length adjustment, and is suitable for high-precision automatic coating film in the laboratory, and film proofing in university research institutes, new materials, lithium batteries, glue, resin and other laboratories.

Product Use:

The film coating machine is suitable for coating and sample preparation of coatings, inks, paints, pastes, lithium batteries, resins, glues, polymer materials, chemicals, etc., and can be scraped on films, release papers, aluminum foils and copper foils.

Features

1) The surface is hard treated aluminum alloy table, with high hardness and wear-resistant, and the flatness of the table is tested by imported high-precision instruments.

2) Big brand differential regulator, high film thickness control accuracy

3) With heating and vacuum adsorption function

4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and has high precision

5) Touch screen control panel, easy to operate

6) The coating length and coating speed can be adjusted freely

Packing list：Host X1, manual X1, imported bar X1, certificate X1, vacuum pump X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
