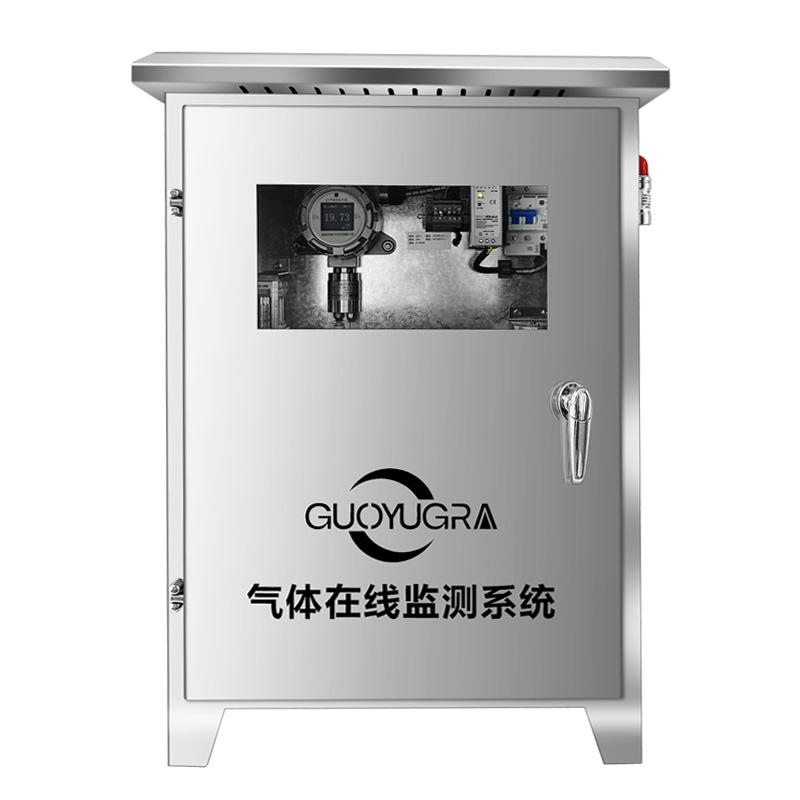

GUOYUGRA GY8800-C2CL4-G gas online monitoring system

GY8800-C2CL4-G

Gas online monitoring system

Type Industrial grade real-time online monitoring type, Operating Mode Fixed continuous online work, pump suction detection (positive pressure, negative pressure, vacuum and other environments), detection error ≤ +/- 3% F. S (full scale ≤ 3%) Higher accuracy can be customized, Repeatability ≤ +/- %, Linearity ≤ +/- 1%

Introduction

The gas online monitoring system is a gas detection product that conducts real-time online monitoring of flue gas, exhaust gas and other gases from various fixed pollution sources such as boilers, chimneys, and pipelines; It is a standardized, modular and professional volatile gas detection system integration product integrating gas sampling, gas filtration, gas cooling and dehumidification, flow control, real-time concentration display, wireless data upload, environmental protection networking, local sound and light alarm, equipment linkage and other functions; It has the characteristics of faster response, stronger anti-interference ability, more accurate measurement, and longer life; Through wireless HJ212 protocol data upload, it can be seamlessly connected to the local environmental protection monitoring platform; The cabinet adopts a professional three-proof design, which can be used directly outdoors; The system can not only be used as organized or unorganized gas emissions within the enterprise, but also provide data analysis and decision support for environmental monitoring and other departments.

The gas online monitoring system is composed of flue gas and exhaust Gas Detectors, high-precision dehumidification and dust removal filters, long-life vacuum sampling pumps, rotameters, 24V power converters and circuit protection devices, wireless transmission modules (optional), etc. Its working principle is as follows: the product is powered by 220V, and after the internal power converter becomes 24V, it directly supplies power to the flue gas exhaust Gas Detector, Vacuum Pump and wireless data module; After the Vacuum Pump working inside actively sucks the external gas into the gas pipe, it is sent to the gas chamber of the flue gas and exhaust Gas Detector for concentration detection after being cooled down by efficient dehumidification and dust removal. The detected concentration value will be displayed on the screen in real time; At the same time, there are 4-20mA, RS485, constant switching output port or wireless 212 protocol for data remote transmission; In addition, the gas online monitoring system can be used through switching signals with fans, valves, sprinkler systems and other equipment in the factory. In addition, its monitoring data can also be received in real time through special supporting software, and can realize multi-channel unified management and quantity expansion. The stored data can also be queried at any time period, curve display, data EXCEL export, etc., so that the monitoring data is clear at a glance.

The gas online monitoring system is suitable for the harsh monitoring environment of high temperature, humidity, tar and dust, and continuously monitors NO, NO2, NOX, O2, CO, CO2, HCL, HNO3, acid mist, fluoride, odorous gas, VOC organic volatiles, benzene series and other gases in the organized ambient air.

Enforce the standard

GB3836.1-2010 "Electrical Equipment for Explosive Gas Atmospheres Part I: General Requirements"

GB3836.2-2010 "Electrical Equipment for Explosive Gas Atmospheres Part II: Flameproof Type "d"

GB3836.15-2000 "Electrical Equipment for Explosive Gas Atmospheres Part 15: Electrical Installation in Hazardous Locations (Except Coal Mines)"

GBT50493-2019 "Design Standard for Detection and Alarm of Combustible Gas and Toxic Gas in Petrochemical Industry"

GB12358-2006 "General Technical Requirements for Workplace Ambient Gas Detection and Alcellors"

GBZ2.1-2007 "Occupational Exposure Limits for Hazardous Factors in the Workplace"

GB4208-2008

GB16297-1996 Comprehensive Emission Standards for Air Pollutants

GB/T16157-1996 "Determination of particulate matter in exhaust gas from stationary pollution sources and sampling method for gaseous pollutants"

HJ/T76-2017 "Technical Requirements and Testing Methods for Continuous Monitoring System for Flue Gas Emission from Stationary Pollution Sources"

Features

• Pre-treatment, high-precision and high-performance gas online monitoring system, small overall size, easy installation;

• Gas pretreatment for harsh environments such as high temperature, high humidity, and dust in complex production environments;

• The use of original imported high-performance sensors, long service life, good anti-interference performance, can monitor a variety of gases at the same time, to achieve high-performance automatic monitoring, accurate and stable monitoring data;

• Detection gas self-reflux circulation function, to achieve zero emission, safer, more environmentally friendly;

• Equipped with infrared remote control, no need to open the cover, to achieve full-featured operation;

• Standard configuration of 4-20MA, RS485, a set of relay output signal; It can be easily connected to PLC, DCS, DDC and other industrial control systems, and can also be used as a stand-alone control;

• Optional DTU, LoRa and other wireless modules to achieve data parameter collection, real-time upload of gas concentration values to the Environmental Protection Bureau or third-party platforms and other servers;

• The 7-inch industrial touch screen is adopted, and the real-time concentration and curve graph display are more intuitive and clear;

• Built-in automatic cooling system to effectively extend the service life of the equipment.


Application

Petroleum and petrochemical, chemical plants, smelters, iron and steel plants, coal plants, thermal power plants, water plants, tobacco companies, atmospheric environment monitoring, scientific research institutions, building construction, fire alarm, sewage treatment, industrial process control, boiler rooms, garbage treatment plants, underground tunnels, oil pipelines, gas stations, underground pipe network maintenance, indoor air quality testing, food processing, sterilization and disinfection, frozen warehouses, pesticides, fertilizers, insecticide production, etc.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
