Specifications

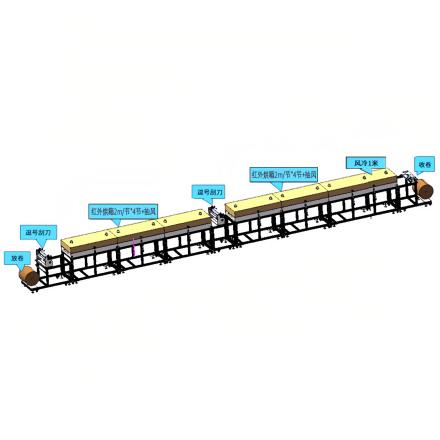

| Spreader process | Unwinding → comma scraping → infrared drying (8m oven, 2m knots * 4 → comma scraping → infrared drying oven (8m oven, 2m knots * 4) + air-cooled (1m) + winding |
| Coating Speed | 1~10m/min |
| Effective application width | 100~ 650Mm adjustable |
| Spreader thickness range | 0.005-3mm |
| maximum discharge | 700mm |
| Maximum charge | 700mm |
| Effective application width | 650mm |
| Drying Temperature range | RT+~200℃ |
| Drying channel length | 12m |
| Total Power | 45KW |
| Power supply Voltage | 380V |
| rubber roller | Heating temperature: RT +~ 200 ℃ |
| Type of coating applicator | Drawdown blade Spreader |
| Fit width | Max.500mm |
| Dimension | 17000 * 850 * 1700mm (subject to actual customization) |
| Weight | Subject to actual customization |
| trimming device | √ |
| correction system | √ |
| Traction device | √ |
Packing list
Host x1, Drawdown blade x2, dryer 8mx2, air-cooled x1, deviation correction system x1, deviation correction system x1, rewinding device x1, traction system x1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/49671/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
