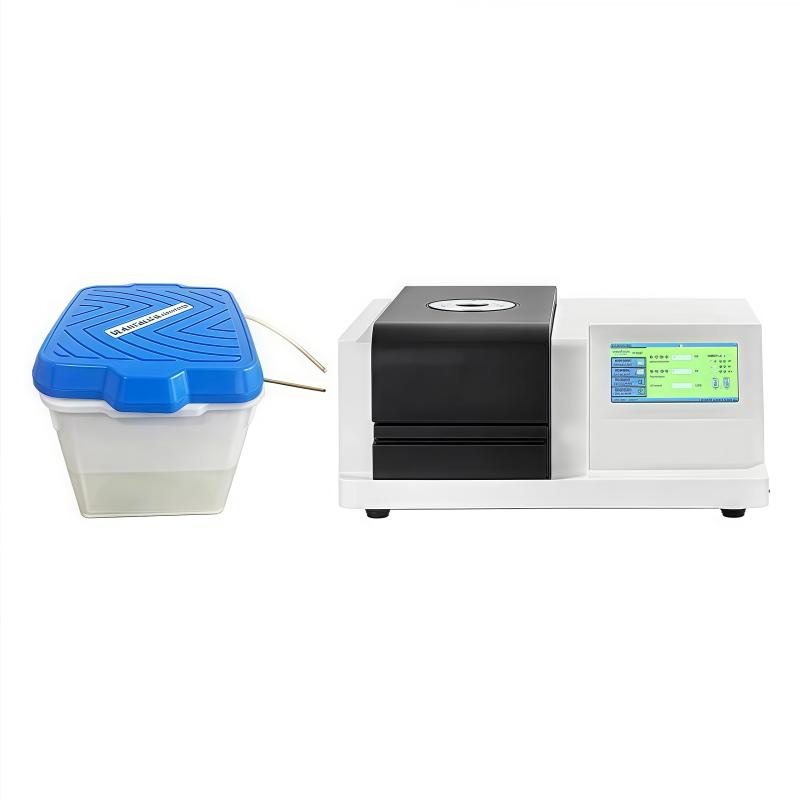

DZ-DSC300A Differential Scanning Calorimeter 0 ℃~ 600 ℃

DZ-DSC300A

Differential Scanning Calorimeter

Imported E-type Sensors, with ultra-high sensitivity (0.001mW) and temperature resolution (0.001 ℃), test range 0 ℃ -600 ℃. Three-way atmosphere automatic switching (nitrogen/oxygen/protective gas)

Product Introduction

DZ-DSC300A sensor is made of imported material E-couple, with high accuracy, high sensitivity, good repeatability, shielding protection of signal acquisition circuit, strong anti-interference, high baseline stability and repeatability.

DZ-DSC300A differential scanning calorimeter can be used to test glass transition temperature, phase transition temperature, melting point, enthalpy value, curing temperature and product stability, oxidation induction period, etc. It can be competent for the research of pipes, polymers, chemicals, food and many other fields, and the products serve universities, enterprises, and third-party measurement units.

Technical features:

1. Industrial-grade 7-inch touch screen with rich display information

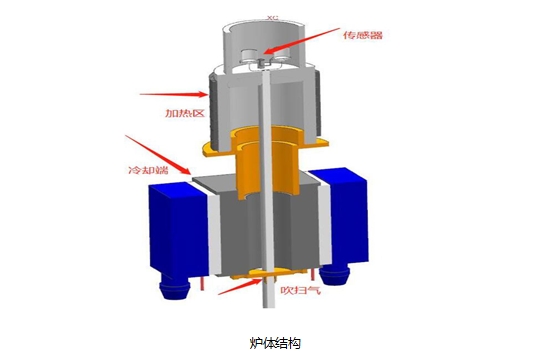

2. Brand new furnace structure, better baseline and higher precision. The heating adopts indirect conduction mode, which has high uniformity and stability, reduces pulse radiation, and is better than the traditional heating mode.

3. USB communication interface, strong versatility, reliable and uninterrupted communication, support self-recovery connection function.

4. Automatically switch between two channels of atmosphere flow, fast switching speed and short stability time. At the same time, a shielding gas input is added.

5. The software is simple and easy to operate.

6. Ultra-high sensitivity, accuracy, 0.001MW, 0.001°C

7. Exquisite technical indicators, superior performance, cost-effective, wide application and quality inspection units, a wide range of applications, to meet the testing needs of various industries.

Function introduction

DZ-DSC300A can perform glass transition temperature, phase transition temperature, melting point, enthalpy value, curing temperature and product stability,

Oxidation induction period, curing degree, gelatinization, crystallization and specific heat capacity tests.

Meets standards

• GB/T 33466.1-2016 Rigid polyvinyl chloride pipes -- Differential scanning calorimetry (DSC) Part 1: Measurement of processing temperature

• GB/T 40271-2021 Test methods for textile fiber identification -- Differential scanning calorimetry

• GB/T 41928-2022 GB/T 41928-2022 Plastics -- Epoxy resins -- Differential scanning calorimetry (DSC) determination

• GB/T 19466.1-2004 Plastics – General principles for differential scanning calorimetry (DSC).

• GB/T 19466.4-2016 Plastics – Differential scanning calorimetry (DSC) – Part 4 - Determination of specific heat capacity

• GB/T 19466.5-2022 Plastics – Differential scanning calorimetry (DSC) – Part 5: Determination of characteristic reaction curves temperature, time, reaction enthalpy and conversion rate

• GB/T 19466.2-2004 Plastics – Differential scanning calorimetry (DSC) – Part 2: Determination of glass transition temperature

• GB/T 19466.3-2004 Plastics – Differential scanning calorimetry (DSC) – Part 3: Determination of melting and crystallization temperature and enthalpy

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
