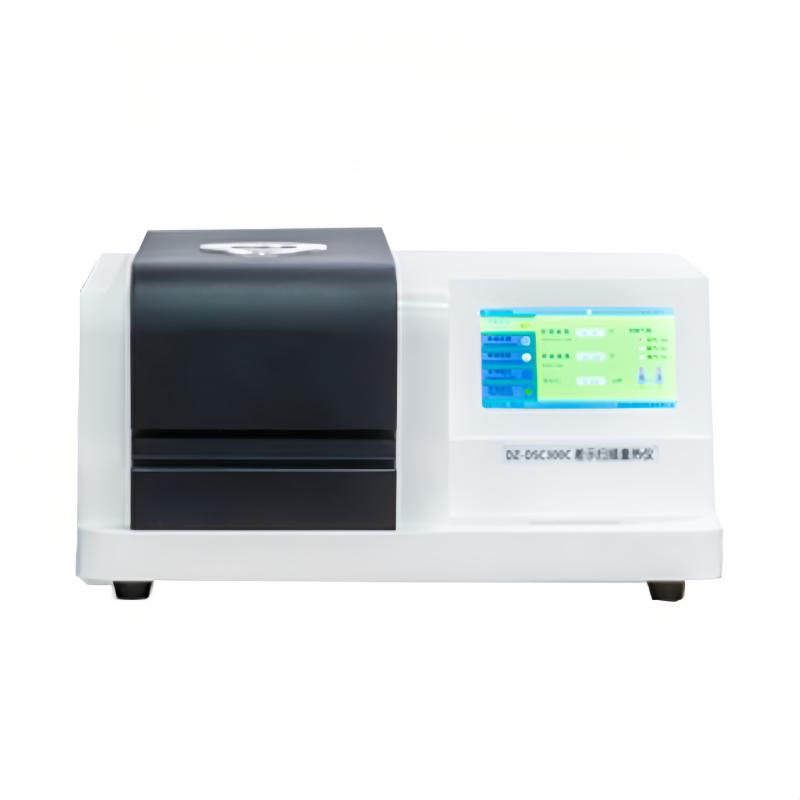

DZ-DSC300C Differential Scanning Calorimeter -40 ℃~ 600 ℃
SE
DZ-DSC300C
DaZhan equipment DZ-DSC300C Differential Scanning CalorimeterSPEC
DaZhan equipment DZ-DSC300C Differential Scanning CalorimeterDetails
DaZhan equipment DZ-DSC300C Differential Scanning CalorimeterPacking list
- SKU
- NB049694
- temperature range
- -40℃~ 600℃
- Temperature Resolution
- 0.001℃
- Temperature Accuracy
- ±0.01℃
- Heating rate
- 0.1～100℃/min
- Cooling rate
- 0.1~ 40 ℃/min, semiconductor refrigeration
- Thermostatic time
- custom settings
- Linear dispersion scanning
- Heating scan, thermostatic scan, cooling scan
- Temperature control method
- Electronic temperature control, PID control combined with PWM pulse width modulation, adjust output through dynamic algorithm, adaptive control, adapt to different Operating Environments, better linear control
- DSC range
- 0~ +/- 600mW, can be expanded to different ranges
- DSC resolution
- 0.01uW
- DSC Accuracy
- 0.001mW
- Power Supply
- AC220V/50Hz or custom
- Atmosphere control gas
- Three ways intake, one way purge gas, two ways reaction gas
- gas flow rate
- 0-200mL/min (other ranges can be expanded)
- gas pressure
- ≤ 1MPa (other ranges can be expanded)
- furnace body
- Anticorrosive coating
- Miscellaneous function
- With fault self-check function, parameter input error promotion function, overload protection function
Product Introduction
DSC300C is the highest precision difference indicator launched by the company, and the sensor is made of imported E-couple, which has high sensitivity. Signal acquisition circuit shielding protection, strong anti-interference, high baseline stability.
The differential scanning calorimeter is a touch screen type, which can be used for glass transition temperature test, phase transition test, melting and enthalpy value test, product stability, curing, specific heat capacity, oxidation induction period test and other tests. Wide range of applications
Technical features:
1. Industrial-grade 7-inch touch screen, display rich information.

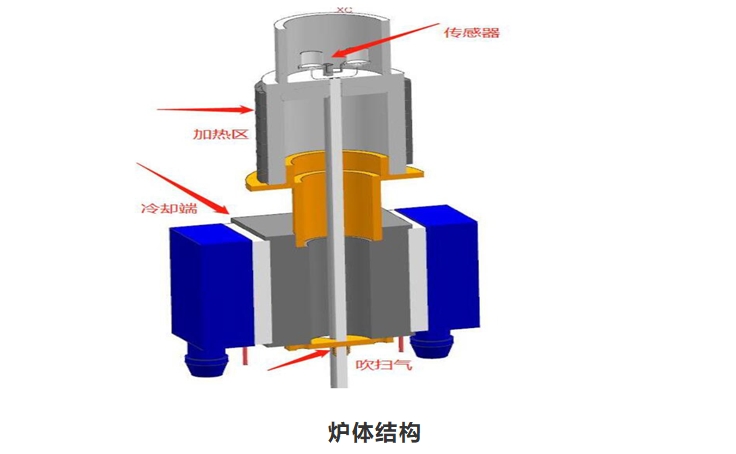

2. Brand new metal furnace structure, better baseline and higher precision. The heating adopts the indirect conduction method, which has high uniformity and stability, reduces pulse radiation, and is better than the traditional heating mode.
3. USB communication interface, strong versatility, reliable and uninterrupted communication, support self-recovery connection function.
4. Automatically switch between two channels of atmosphere flow, fast switching speed and short stability time. At the same time, a shielding gas input is added.
5. The software is simple and easy to operate.
Meets standards
GB/T 33466.1-2016 Rigid polyvinyl chloride pipes -- Differential scanning calorimetry (DSC) Part 1: Measurement of processing temperature
GB/T 40271-2021 Test methods for textile fiber identification -- Differential scanning calorimetry
GB/T 41928-2022 GB/T 41928-2022 Plastics -- Epoxy resins -- Differential scanning calorimetry (DSC) determination
GB/T 19466.1-2004 Plastics – General principles for differential scanning calorimetry (DSC).
GB/T 19466.4-2016 Plastics – Differential scanning calorimetry (DSC) – Part 4 - Determination of specific heat capacity
GB/T 19466.5-2022 Plastics – Differential scanning calorimetry (DSC) – Part 5: Determination of characteristic reaction curves temperature, time, reaction enthalpy and conversion rate
GB/T 19466.2-2004 Plastics – Differential scanning calorimetry (DSC) – Part 2: Determination of glass transition temperature
GB/T 19466.3-2004 Plastics – Differential scanning calorimetry (DSC) – Part 3: Determination of melting and crystallization temperature and enthalpy
GB/T 19466.6-2009 GB/T 29611-2013 Raw rubber -- Determination of glass transition temperature
