Specifications
| motor | Servo motor, protection class IP55 |
| Coating Method | Spreader with drawdown blade |
| Spreader speed | 5~ 180Mm/s stepless speed regulation |
| Substrate fixing method | fixture |
| Coating table material | 316 stainless steel (food grade) |
| Spreader platform size | 330*620mm |
| Coating size | 297mm*420mm |
| Display | 7-Inch color LCD touch screen |
| Host Power Supply | AC 220V50HZ |
| power | 2500 |
| Drawdown blade film Film thickness | 0~5Mm (split and disassembly) |
| Drawdown blade material | 316 stainless steel material |
| Drawdown blade Spreader width | 297mm |
| Drawdown blade Accuracy | ±0.01mm |

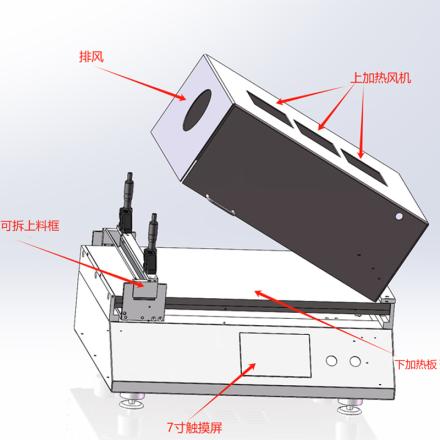

| Heating system | Bottom substrate heating: RT +~ 180 ℃, temperature control Accuracy +/- 1 ℃ (PID intelligent temperature control) Upper heating: 3 220V hot air fans, temperature 80 ℃ +/- 20 ℃ (linked with bottom substrate temperature control) |
| Dimensions | About 620mm (length) × 500mm (width) × 300mm (height) (including the air cover, for reference only, the actual situation shall prevail) |
| Weight | About 45kg (the main material is stainless steel, the Weight is adjusted with the configuration) |
Packing list
Host X1, manual X1, fixture X1, drawdown blade x1, certificate X1
After-sales instructions
Warranty days: 730 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/49765/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
