FANGRUI instrument NDJ-5T + DC0506W temperature control rotational viscometer refrigeration heating dual-use
NDJ-5T+DC0506W
FangRui NDJ-5T+DC0506W Rotational viscometer setSPEC
FangRui NDJ-5T+DC0506W Rotational viscometer setDetails
FangRui NDJ-5T+DC0506W Rotational viscometer setPacking list
- SKU
- NB049794
- Display
- 5-Inch color touchscreen
- Viscosity range
- 1~100000mPa·s
- Rotor specification
- 1#、 2#、3#、4#
- Rotor speed
- 6/12/30/60rpm
- reproducibility
- ±0.5%
- Measurement Accuracy
- ±1%F.S
- Power supply Voltage
- Wide Voltage operation (110V/60Hz or 220V/50Hz)
- Dimension
- 300*300*450mm
- Weight
- 4kg
- sample size
- 300~400ml
- Display shear/shear rate
- Standard
- Timer
- Standard
- Linear dispersion
- Real-time display of viscosity Linear dispersion
- kinematic viscosity
- Display after entering the density of the sample
- temperature sensor
- Standard temperature sensor interface (optional temperature sensor is required)
- Automatic scanning function
- Automatically scan and recommend the combination of rotor and Rotation speed
- Measurement range
- Automatic display of the selected rotor with Rotation speed in combination with measurable viscosity range
- Save measurement results
- Up to 30 sets can be stored (including rotor, Rotation speed, temperature, time, etc.)
- Save measurement results
- Save up to 30 sets of data (including viscosity, temperature, rotor, Rotation speed, shear rate, shear stress, time, density, kinematic viscosity, etc.)
- printer interface
- Data, Linear dispersion can be printed (standard printing interface, optional printer is required)
- Temperature range
- -5℃~100℃
- Temperature Accuracy
- 0.01℃
- opening
- Round hole 75mm
- Adapted beaker
- 400Ml high beaker
Product Introduction
The NDJ-5T touchscreen Digital Rotational Viscometer is well integrated with touchscreen technology, using a sleek and modern high technology to measure viscosity quickly, accurately and conveniently. Powerful, far from being comparable to previous LCD viscometers.
The self-built 30 sets of test programs help users quickly and accurately obtain the viscosity and related data of the sample. The large 5-inch color touch screen can comprehensively and vividly display various parameters and Operating Conditions. It has the obvious advantages of many measurement parameters, rich display content, convenient operation, intuitive reading, high measurement accuracy, stable speed, strong anti-interference performance, and wide working Voltage. It can completely replace the same type of imported instruments, and follow the new scientific and technological trend of domestic viscometers.
The NDJ-5T touchscreen Digital Rotational Viscometer can determine the absolute viscosity of Newtonian-type liquids or the apparent viscosity of non-Newtonian-type liquids.
Features:
(1) Adopt ARM technology and built-in Linux system. The operation interface is simple and clear, and the viscosity test can be carried out quickly and easily through the creation of test programs and data analysis;
(2) The viscosity measurement value is accurate, and each range is automatically calibrated by computer, with high accuracy and small error;
(3) Rich display content: in addition to viscosity, there are temperature, the percentage of the measured value in the full-scale value (graphic display), the range overflow alarm, automatic scanning, the maximum measurement range under the current rotor speed combination, date, time, etc. And it can display the kinematic viscosity with a known density, which significantly meets the different measurement requirements of users;
(4) Complete functions, timed measurement, self-built 30 sets of test programs, access to 30 sets of measurement data, real-time display of viscosity curves, printing data and curves, etc.;
(5) Pre-level level, intuitive and convenient level adjustment;
(6) Optional temperature probe, special thermostatic bath for viscometer, thermostatic cup, printer, standard viscosity sample (standard silicone oil), etc.;
(7) Chinese and English operating systems.
Application industry
NDJ-5T Digital Rotational Viscometer is widely used in various fluids that need to measure viscosity and fluids under high temperature melting. Including paints, coatings, cosmetics, inks, pulp, food, oil, starch, solvent-based adhesives, latex, biochemical products, etc., as well as industries that require high-temperature melting, such as asphalt, paraffin, hot melt adhesives, etc.
Introduction to the temperature control tank
The special thermostatic bath for refrigeration and heating dual-purpose viscometer adopts compressor refrigeration, with a maximum temperature of 100°C, a temperature range of -5°C~100°C, and a temperature accuracy of 0.01°C.
The machine has a 75mm round hole, which can be put into a 40ml beaker, and the measured sample is poured into the beaker, which is convenient to control the sample temperature simply and quickly.

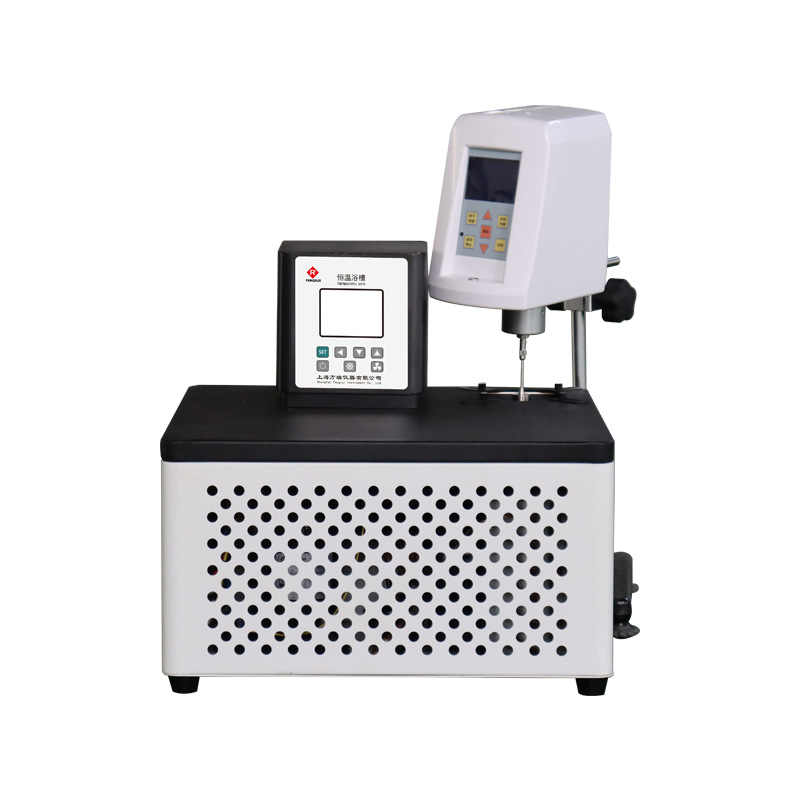

Product display diagram
