Defelsko C Standard 200C1-E Ultrasonic Thickness Gauge Coating thickness measurement of concrete, fiberglass, etc

C Standard 200C1-E

Ultrasonic Thickness Gauge

Overview

The Defelsko C Standard 200C1-E Ultrasonic Thickness Gauge is an ultrasonic coating Thickness Gauge for measuring the surface coating of materials, which is the Defelsko standard ultrasonic Thickness Gauge for measuring the coating thickness of concrete, fiberglass, etc. Defelsko positector200CUltrasonic Thickness Gauge is a special measuring instrument for thick coatings, the measured film thickness range can reach 50~3800 microns, using a probe with good wear resistance, the sensitivity of the sensor is very high, and the measurement is fast and accurate.

Key features of ultrasonic coating Thickness Gauges:

durable

Resistant to solvents, acids, oils, water and dust - all-weather protection

C Standard 200C1-E Ultrasonic Thickness GaugeThe rubber sheath with belt buckle provides shock absorption and protection

The ultrasonic Thickness Gauge is guaranteed for two years on the main unit and the transducer

Simple

Ready-to-use – no calibration adjustment is required for the vast majority of tests

One-handed operation menu

The two-color indicator light still performs well in noisy environments

The RESET restart feature allows for a quick factory reset

precise

Ultrasonic Thickness Gauges are traceable to NIST calibration proofs

Sensitive sensors provide fast, accurate readings

Proven non-destructive ultrasonic thickness gauging technology meets ASTM D6132

and ISO 2808 standards

Multi-purpose

The PosiTector mainframe is extremely versatile, with PosiTector 200, 6000, SPG, DPM, and UTG probes all available and easy to replace. In this way, an ultrasonic coating Thickness Gauge can be transformed into a surface profiler, a dew point meter or an ultrasonic wall Thickness Gauge.

Mil/micron units can be freely switched to multiple languages

The high-contrast backlit display makes it easy to operate the inverted display function in bright or dim environments, making it easy to flip the readings and operate during measurements

Use alkaline batteries or rechargeable batteries (built-in charger)

Powerful

Ultrasonic coating Thickness Gauges continuously display/update averages, standard deviations, min/max thicknesses, and number of readings

Screenshots - Record and store screen images for easy archiving and browsing

C Standard 200C1-E Ultrasonic Thickness GaugeQuickly connect to your computer via the USB port for continuous power supply. USB cable is included

PosiSoft USB Driver - Use a regular PC/Mac browser or explorer to access stored readings and charts without the need for software

Each stored data is marked with a date and time

Update your software over the Internet to get your gauge in the air

Connect PosiSoft.net

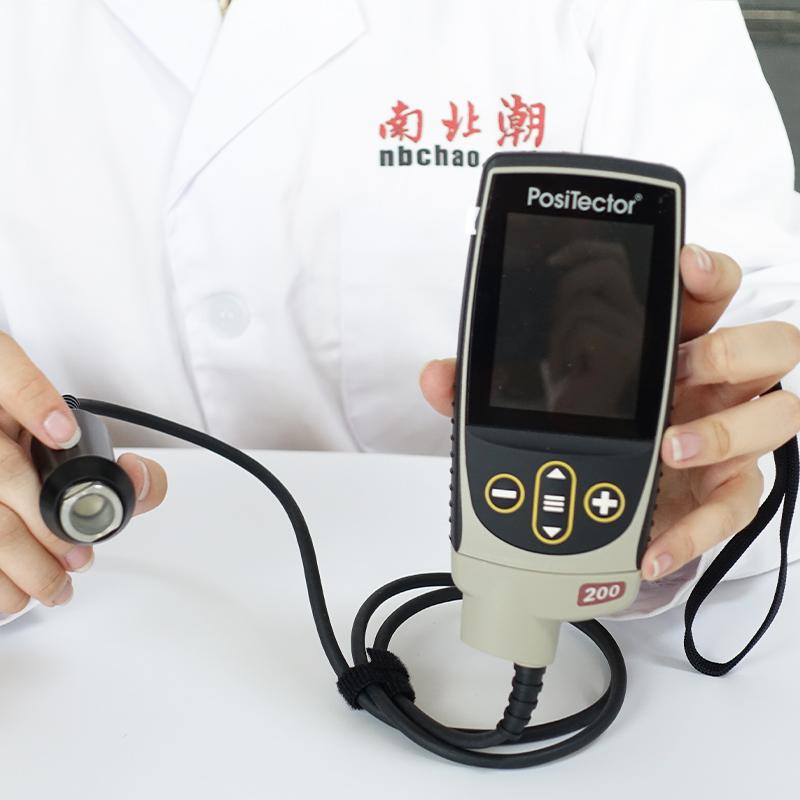

Live shot

Ultrasonic coating Thickness Gauge

PosiSoft®... A free solution for browsing, analyzing, and reporting

PosiSoft USB Drive

Connect to your PC/Mac via USB cable to read and print stored readings, charts, pictures, annotations and screenshots. No additional software or internet connection is required

PosiSoft.net

A web-based application that provides centralized management of secure PosiTector readings.

You can take readings from all networked instruments

PosiSoft Software

Desktop software to download, browse, and print test data.

PosiSoft Mobile

Through devices that can use WiFi such as tablets,

smartphones and laptops to take readings,

Charts, screenshots, and update notes.

(This feature is only available for premium models)

Select the instrument model with the appropriate measuring range

Standard                               Advanced

The B-type probe measures wood, plastic, etc       The C-probe measures concrete, fiberglass, etc

polymer coating on the material                coating on the material

Features of the Gauge Standard/Advanced Model

Standard model

Includes all of the aforementioned features plus...

Measure the total thickness of the coating system

Semi-projection technology monochrome display for improved visualization in sunlight

Stores 250 readings - can be viewed or downloaded

Premium model

Includes all of the aforementioned features plus...

Measure the total thickness of a coating system or up to 3 coatings in a multi-coat system, and output graphical data for detailed coating analysis

High-contrast color LCD display

Stores 100,000 readings and 1,000 sets of readings

Instant help, real-time charts, dialogs, and more

Batch Annotation - Add and modify batch names via the universal keyboard on the screen

Wireless technology, synchronized with PosiSoft.net in real time, enables software updates and expands its functionality by connecting with other mobile devices

The ultrasonic coating Thickness Gauge is connected to a computer and printer through USB or Bluetooth wireless technology to achieve data transmission

Chart mode with screenshot function

Ultrasonic coating Thickness Gauges output graphical data that facilitates detailed coating analysis

Thickness Gauge model measuring range

Packing list：host x1, probe x1, standard foil x1, coupling agent x1, rubber protective cover with waist clip x1, No. 7 battery x3, nylon portable soft bag x1, English manual x1, certificate x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
