JINGKELIAN QXP 0-50S ISO Fineness of Ground Gauge Fineness gauge 0~50μm/5μm

SE
Double-channel, range 0~50μm, scale unit μm, scraper material stainless steel, scraper size 175mm * 65mm * 13mm, groove size 140 * 12.5mm, drawdown blade material stainless steel, can be used to determine the fineness of pigments, fillers and impurities in Coatings, in microns.
$183.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO OI
Similar products

JingKeLian QXP 0-50S ISO double-channel Fineness of Ground GaugeSPEC

JingKeLian QXP 0-50S ISO double-channel Fineness of Ground GaugeDetails

JingKeLian QXP 0-50S ISO double-channel Fineness of Ground GaugePacking list

SKU
NB004985
Scraper type
double-channel
Number of grooves
2
range
0 ~ 50µm
Scale unit
mm
Scraper material
stainless steel
Scraper size
175mm*65mm*13mm
Groove size
140mm*12.5mm
Scraper material
stainless steel
Scraper size
90*40*6mm
Applicable standard
GB/T6753.1-86、ISO1524-83
slope
1:3000
Graduation
5μm
Flat flatness on scraper
0.003mm
Scraper two knife edge plane flatness
0.002mm
Roughness of plane surface on scraper
Ra≤0.2
Chute Surface Roughness
Ra≤0.5
Scraper two edge finish
Ra≤0.2
QXP 0-50S
ISO double-channel Fineness of Ground Gauge
Double-channel, range 0~50μm, scale unit μm, scraper material stainless steel, scraper size 175mm * 65mm * 13mm, groove size 140 * 12.5mm, drawdown blade material stainless steel, can be used to determine the fineness of pigments, fillers and impurities in Coatings, in microns.

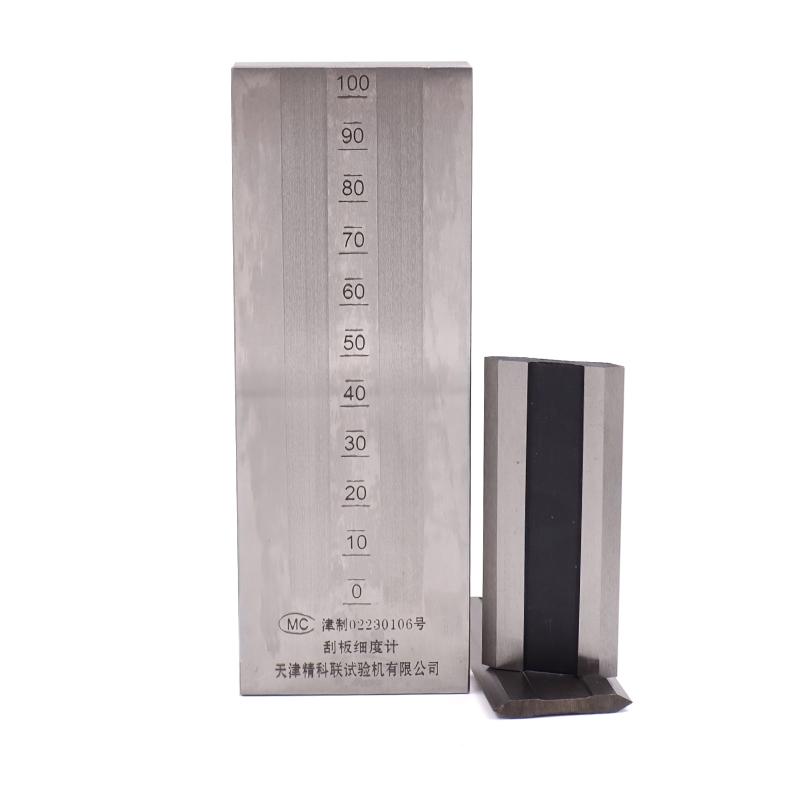

JINGKELIAN QXP 0-50S ISO Fineness of Ground Gauge Fineness gauge 0~50μm/5μm Picture

Introduction

The Fineness Meter is designed according to the standard paint inspection method promulgated by the Ministry of Chemical Industry, the Fineness Meter measurement method GB/T6753.1-86 ISO1524-83 standard, and can be used to test the particle size of pigments, fillers and impurities in paints and paint pastes. Fineness, expressed in microns.

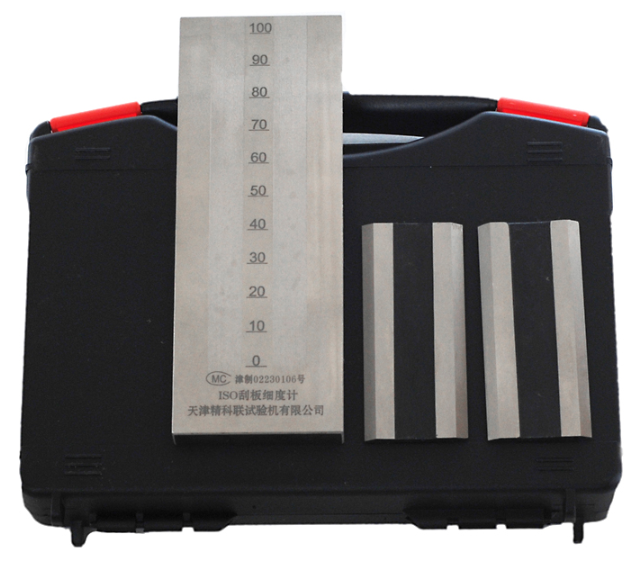

Details of JinKeLian QXP 0-50S ISO Fineness of Grind Gauge 1

FAQ
QIs this 2 paths scraper Fineness Meter equipped with two scrapers?
A Hello, yes.
QI want to do a test on the GB/T13217.3 standard, is this ISO Fineness gauge okay?
A Sure
QCan the QXP50S double-channel Fineness gauge test materials around 38 microns?
A Yes, ISO scraper fineness Measurement can scrape material fineness below 0~ 50μm.
