JINGKELIAN QXD (0-50um Stainless Steel) Fineness of Ground Gauge 0~50μm/5μm

SE
Single-channe, range 0~50μm, scale unit μm, Graduation 5μm, scraper material stainless steel, scraper size 155 * 50 * 12mm, groove size 13 * 120mm, drawdown blade material stainless steel, used to determine the fineness of pigments, fillers and impurities in Coating, in microns.
$133.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO OI
Similar products

JingKeLian QXD 0-50 Fineness of Ground GaugeSPEC

JingKeLian QXD 0-50 Fineness of Ground GaugeDetails

JingKeLian QXD 0-50 Fineness of Ground GaugePacking list

SKU
NB004986
Scraper type
Single-channe
Number of grooves
1
range
0 ~ 50µm
Scale unit
mm
Graduation
5μm
Scraper material
stainless steel
Scraper size
155*50*12mm
Groove size
13*120mm
Scraper material
stainless steel
Scraper size
68×40×6.5mm
Applicable standard
GB1724-79
Surface finish on scraper
10
Chute bottom surface finish
8
Scraper two edge finish
8
Scraper two knife edge plane flatness
0.002mm
Flat flatness on scraper
0.003mm
Bottom plane flatness of chute
0.003mm
QXD 0-50
Fineness of Ground Gauge
Single-channe, range 0~50μm, scale unit μm, Graduation 5μm, scraper material stainless steel, scraper size 155 * 50 * 12mm, groove size 13 * 120mm, drawdown blade material stainless steel, used to determine the fineness of pigments, fillers and impurities in Coating, in microns.

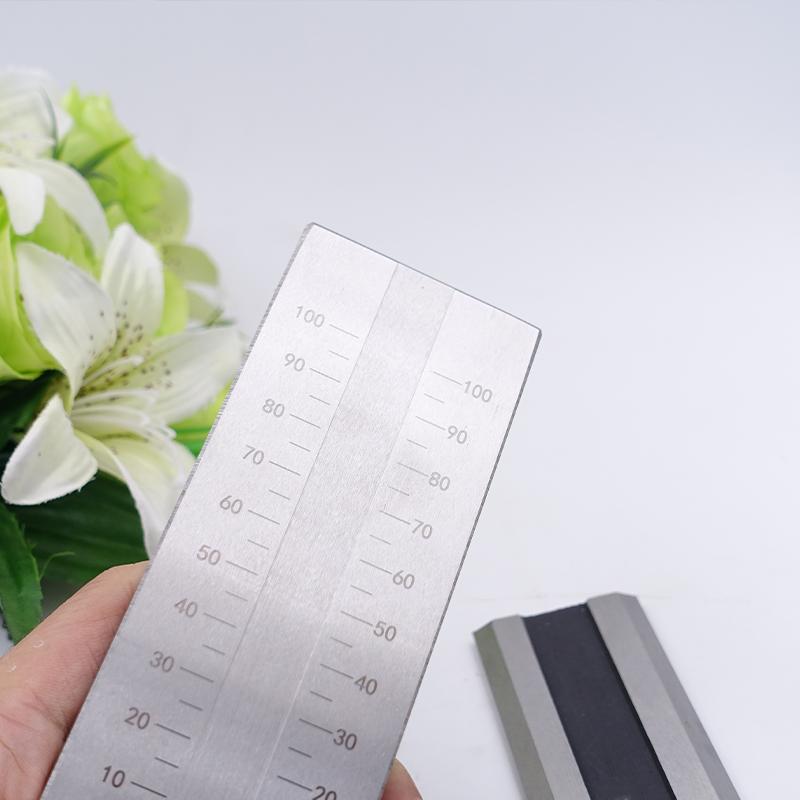

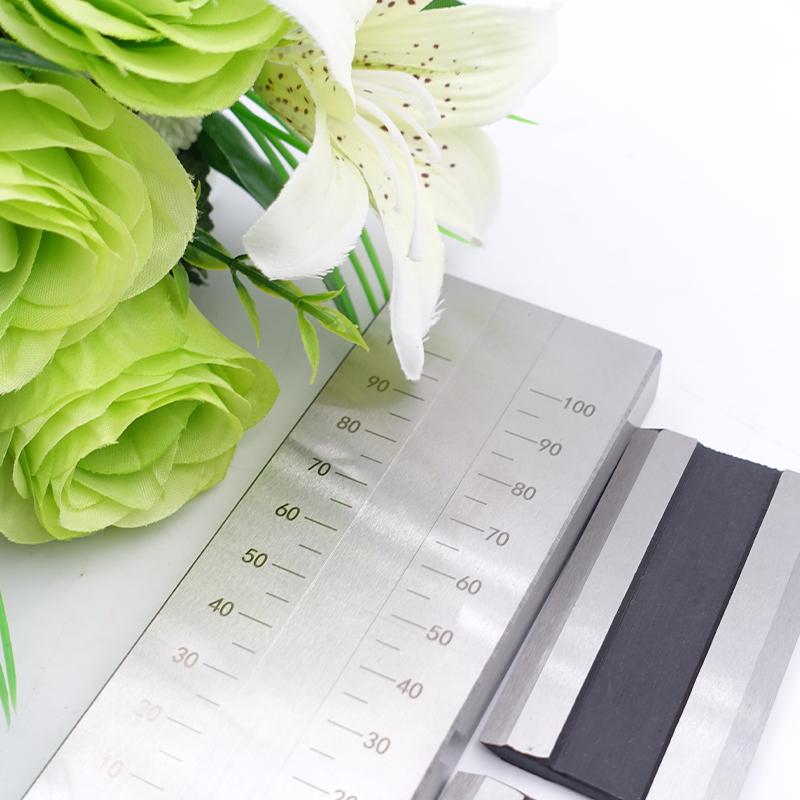

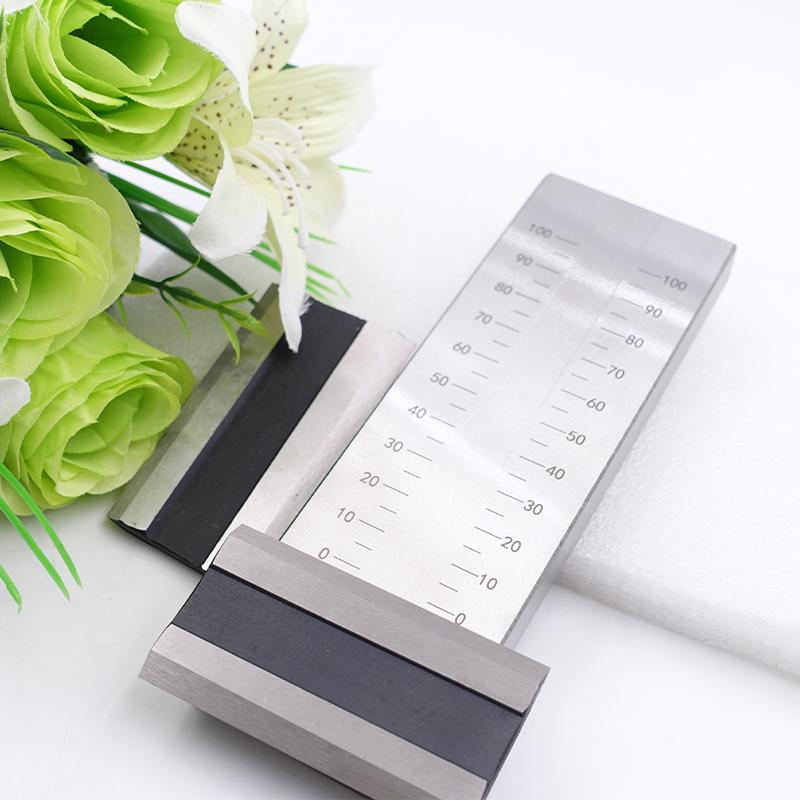

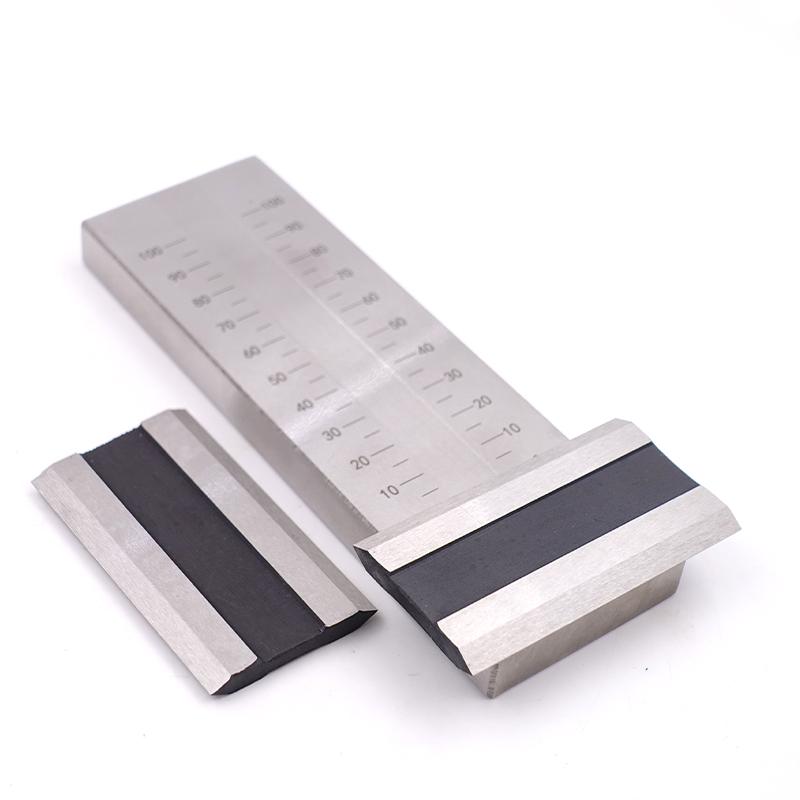

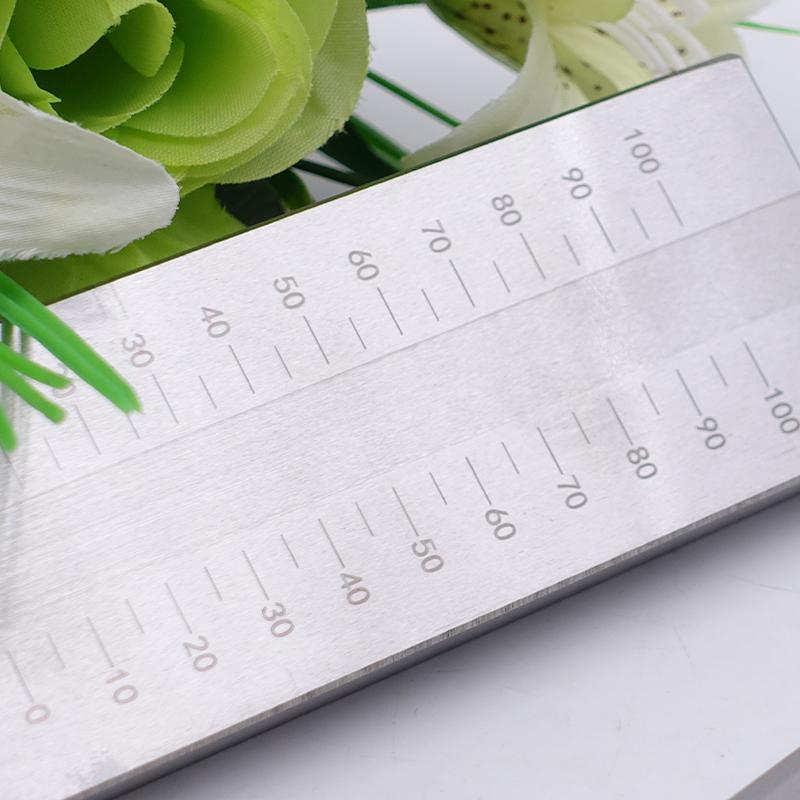

JINGKELIAN QXD (0-50um Stainless Steel) Fineness of Ground Gauge 0~50μm/5μm Picture

Introduction

The Fineness Meter is designed according to the standard paint inspection method promulgated by the Ministry of Chemical Industry: Fineness Meter measurement method GB1724-79, which can be used to test the fineness of pigments, fillers and impurities in paints and paint pastes, expressed in microns .

Uses: Determination of particle fineness of fuel filling and impurities in paints, varnishes and inks

FAQ
QHow big is the groove of this Fineness meter from Seiko?
A Hello, the groove size is 13x120mm.
QDo you have the Fineness gauge required in the GB/T13217.3 standard?
A This QXD 0-50 (stainless steel) Fineness gauge will do.
QCan the QXD50 single-channe Fineness gauge test materials around 38 microns?
A Yes, the scraper fineness Measurement can scrape the material fineness below 0~ 50μm.
