JINGKELIAN QXD (0-100um Stainless Steel) Fineness of Ground Gauge 0~100μm/5μm

SE
Single-channe, range 0~100μm, scale unit μm, Graduation 5μm, scraper material stainless steel, used to determine the fineness of pigments, fillers and impurities in Coatings, in microns.
$133.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO OI
Similar products

JingKeLian QXD 0-100 Fineness of Ground GaugeSPEC

JingKeLian QXD 0-100 Fineness of Ground GaugeDetails

JingKeLian QXD 0-100 Fineness of Ground GaugePacking list

SKU
NB004988
Scraper type
Single-channe
Number of grooves
1
range
0 ~ 100µm
Scale unit
mm
Graduation
5μm
Scraper material
stainless steel
Scraper size
155*50*12mm
Groove size
13*120mm
Scraper material
stainless steel
Scraper size
68×40×6.5mm
Applicable standard
GB1724-79
Surface finish on scraper
10
Chute bottom surface finish
8
Scraper two edge finish
8
Scraper two knife edge plane flatness
0.002mm
Flat flatness on scraper
0.003mm
Bottom plane flatness of chute
0.003mm
QXD 0-100
Fineness of Ground Gauge
Single-channe, range 0~100μm, scale unit μm, Graduation 5μm, scraper material stainless steel, used to determine the fineness of pigments, fillers and impurities in Coatings, in microns.

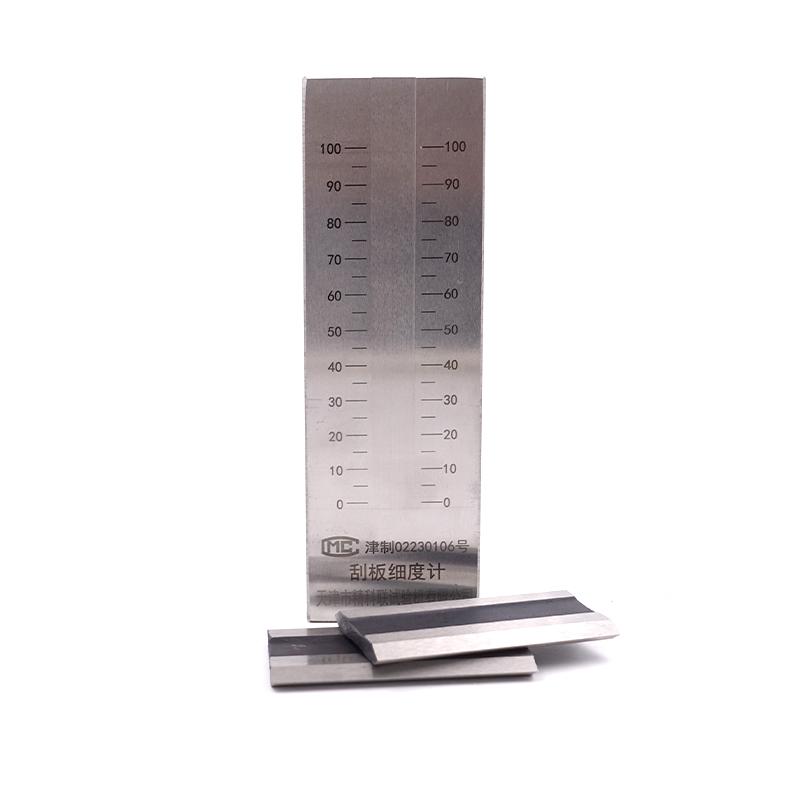

JINGKELIAN QXD (0-100um Stainless Steel) Fineness of Ground Gauge 0~100μm/5μm Picture

Introduction

The Fineness Meter is designed according to the standard paint inspection method promulgated by the Ministry of Chemical Industry: Fineness Meter measurement method GB1724-79, which can be used to test the fineness of pigments, fillers and impurities in paints and paint pastes, expressed in microns .

Uses: Determination of particle fineness of fuel filling and impurities in paints, varnishes and inks

FAQ
QWhat material is this QXD Fineness gauge made of?
A Hello, this material is stainless steel.
QI want to measure the cleanliness of emulsion paint. Is this Fineness Meter suitable?
A The number of particles in the emulsion paint above the Fineness meter reading is suitable for indicating the cleanliness of the emulsion paint and is therefore appropriate.
QWhat specifications of Fineness gauge do primers generally use?
A Fineness requirements for primers are generally not higher than 50μm/60μm, and a Fineness gauge with a range of 0 to 100 can be used, either single-channe or double-channel.
QI want to do a test on the GB/T14616 standard. Is this Fineness gauge okay?
A Sure
QCan the QXD100 single-channe Fineness gauge test slurries around 75 microns?
A Yes, the scraper fineness Measurement can scrape the material fineness below 0~ 100μm.
