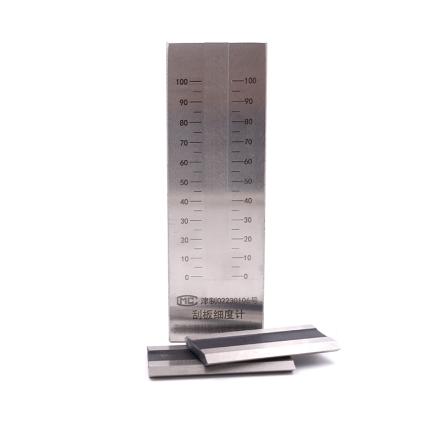

Specifications
| Scraper type | Single-channe |
| Number of grooves | 1 |
| range | 0 ~ 150μ m |
| Scale unit | mm |
| Graduation | 5μm |
| Scraper material | stainless steel |
| Scraper size | 155*50*12mm |
| Groove size | 13*120mm |
| Scraper material | stainless steel |
| Scraper size | 68×40×6.5mm |
| Applicable standard | GB1724-79 |
| Surface finish on scraper | 10 |
| Chute bottom surface finish | 8 |
| Scraper two edge finish | 8 |
| Scraper two knife edge plane flatness | 0.002mm |
| Flat flatness on scraper | 0.003mm |
| Bottom plane flatness of chute | 0.003mm |
Packing list
Scraper x1, scraper x2
