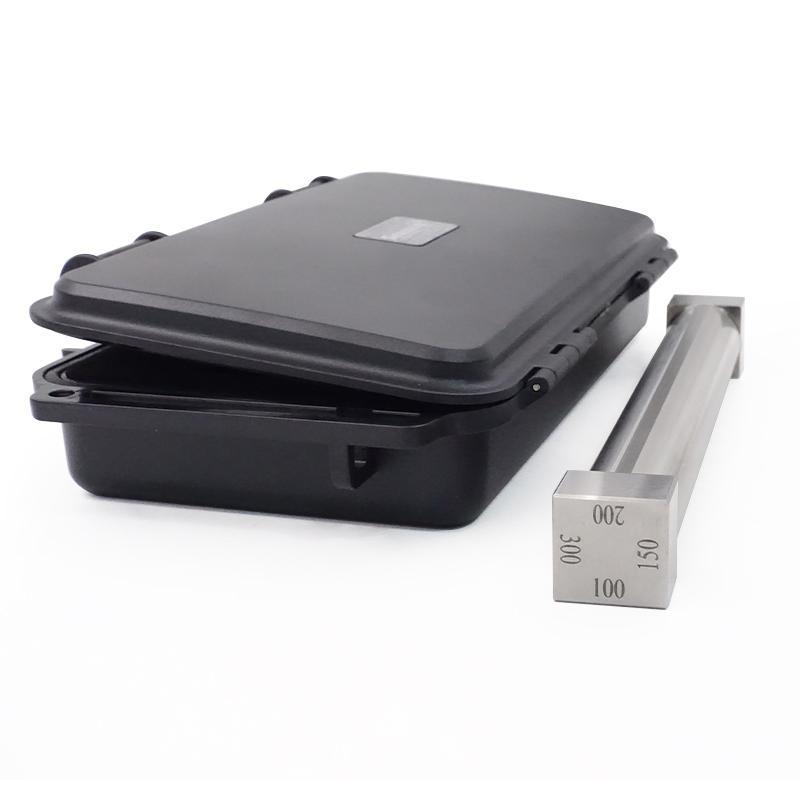

Wet Film Applicator SZQ-80 400/600/800/1000a 4-sided Applicator
SZQ-80 400/600/800/1000um
HuiNuo SZQ-80 400/600/800/1000um 4-sided ApplicatorSPEC
HuiNuo SZQ-80 400/600/800/1000um 4-sided ApplicatorDetails
HuiNuo SZQ-80 400/600/800/1000um 4-sided ApplicatorPacking list
- SKU
- NB049893
- type
- 4-sided
- WFT
- 400/600/800/1000um
- application width
- 80mm
- Accuracy
- ±2μm
- material
- 9Cr18Mo stainless steel
- Total length
- 100mm
Product Introduction
SZQ-80 175/200/250/300um is a four-sided Film Applicator with a film thickness175/200/250/300umWith a coating width of 80 mm, a Total length of 100 mm, and a coating film accuracy of ± 2 μm, it is a standard four-sided preparer.

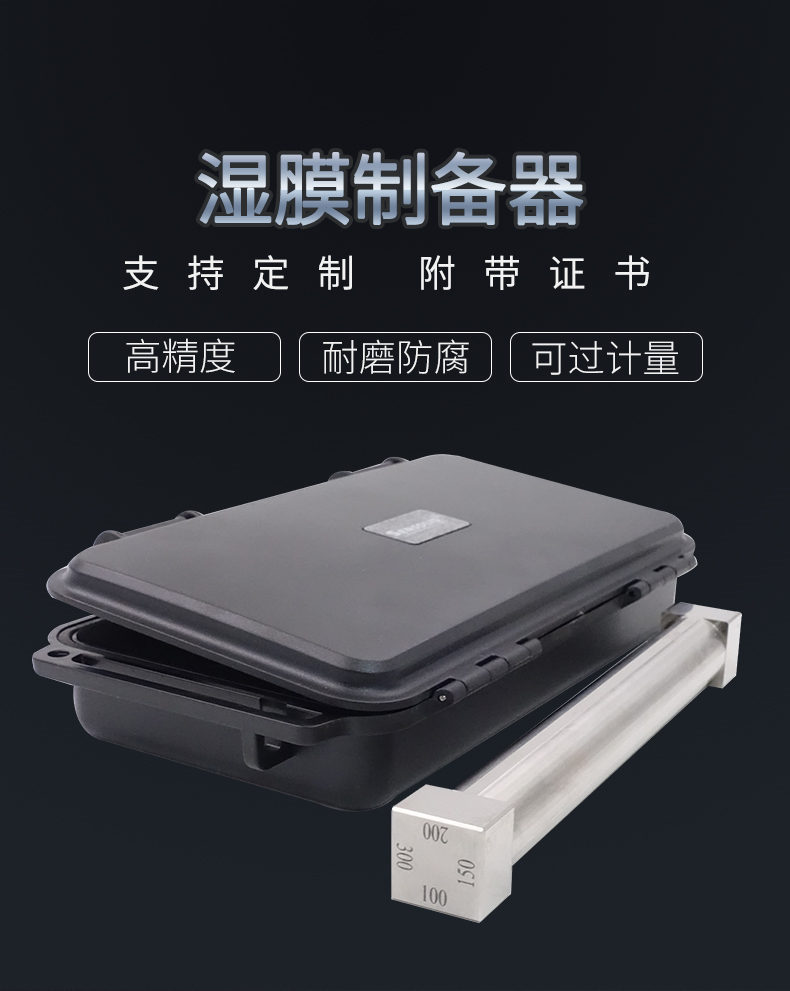

The wet film preparer is a manual laboratory coater, with different coating width specifications to choose from, made of high-carbon chromium wear-resistant and anti-corrosion stainless steel, and the preparer uses imported three-coordinate detection to ensure the accuracy of the coating film before leaving the factory. SZQ series preparers are available in a variety of shapes such as I-shaped, frame-type, square, etc., and can be divided into single-sided, double-sided, four-sided, and eight-sided preparers according to the thickness of the coating film. The wet film preparer is suitable for making films such as paints, glues, coatings, inks, new chemical materials, etc., and can be equipped with a film coating machine for automatic film scraping. Nanbeichao provides preparator specification customization services.
Features:

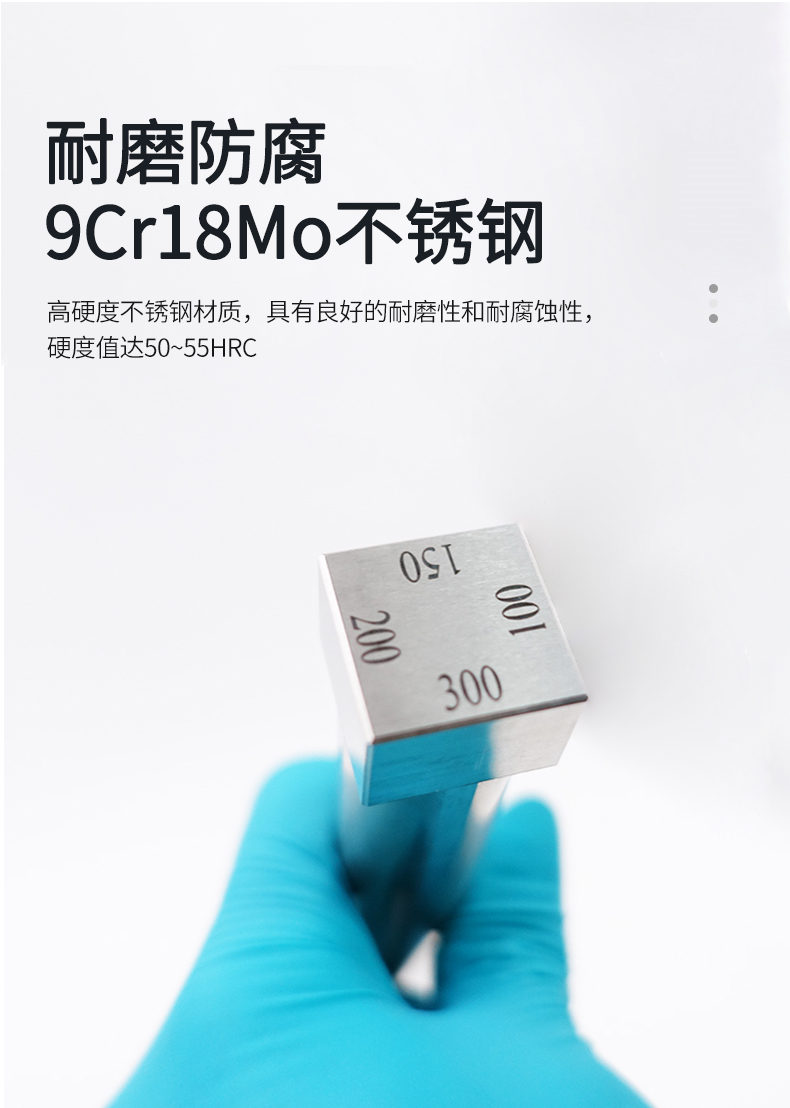

1. 9Cr18Mo high hardness stainless steel material, with good wear resistance and corrosion resistance, hardness value of 50~55HRC.
2. The coating film accuracy ± 2μm.

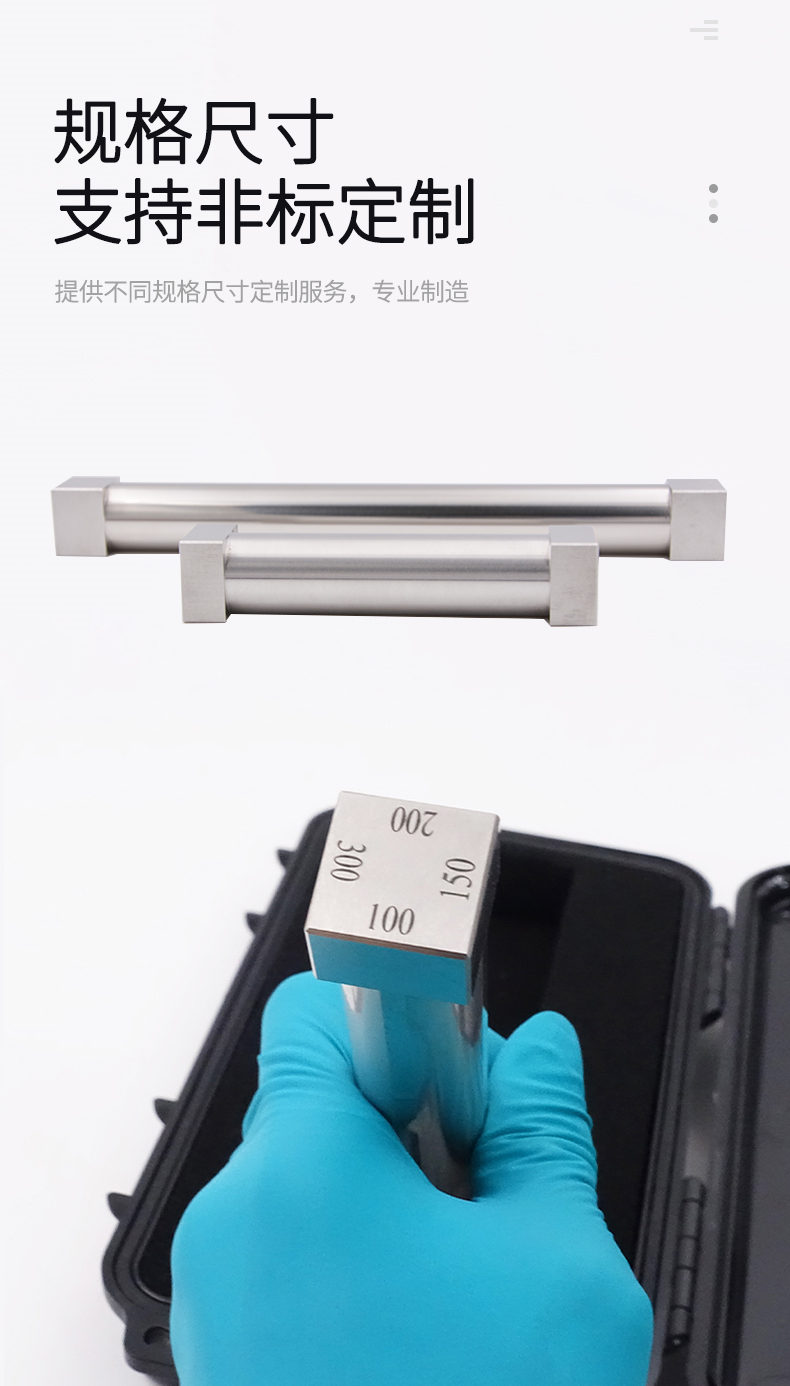

3. The surface is smooth and clean, the styles are diverse, the application range is wide, and customized specifications are supported

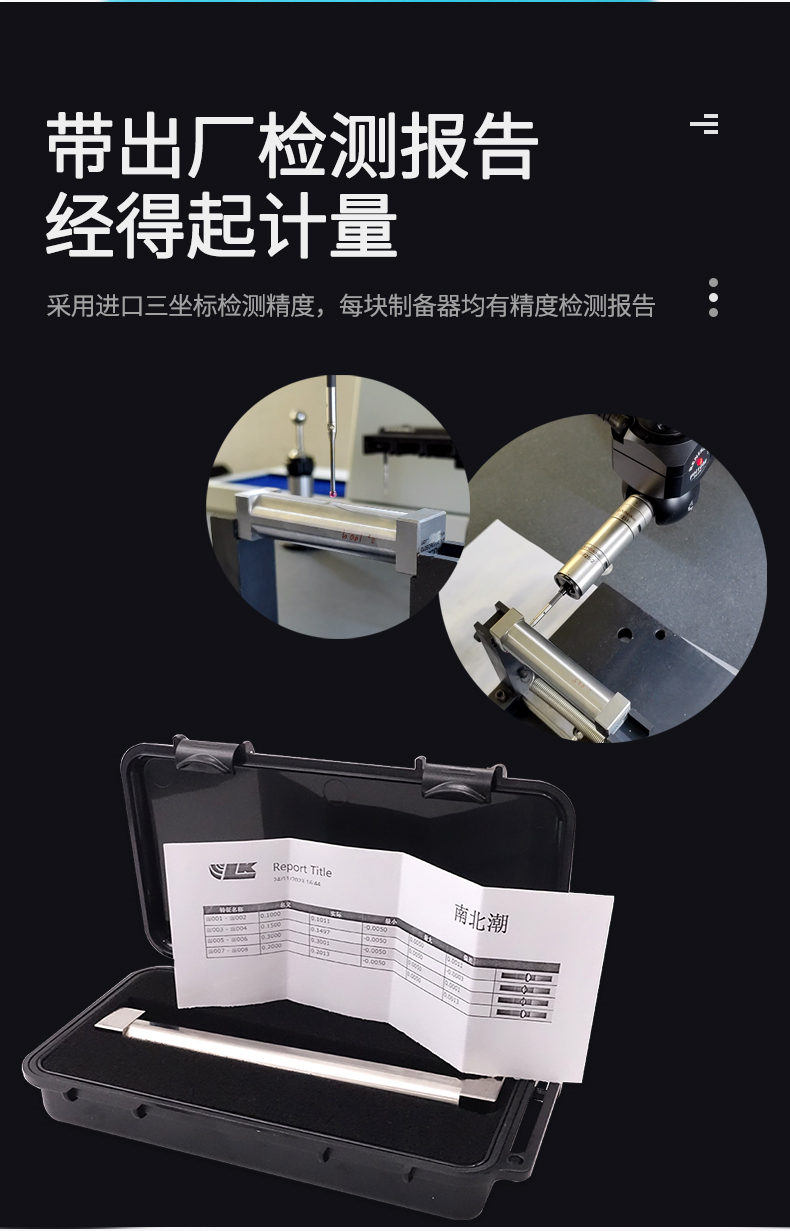

4. Adopt imported three-coordinate detection accuracy, with factory test report, which can stand up to measurement
Parameter table of the preparator series
| name | Specification mm | Wet film thickness μm |
| Single-sided preparer | The Total length is 80, and the coating width is 50 and 75 | 50、75、100、125、150、175、200 |
| Double-sided preparer | The Total length is 100, and the coating width is 80 | 25、50、75、100、150、175、200、300、400 |
| Frame preparer | The Total length is 90, and the coating width is 80 | 30、50、60、90、120、150、200 |
| Octaveral preparer | The Total length is 90, and the coating width is 68 | 50、75、100、125、150、175、200 |
| Octaveral preparer | The Total length is 100, and the coating width is 80 | |
| Square preparer | 25x25, coating width 16 | 37、50、75、100 |
| Square preparer | 50x50, coating width 41 | 50、100 |
| Standard four-sided preparer | The Total length is 100, and the coating width is 80 | All specifications and sizes, support non-standard customization |
| Extended four-sided preparer | The Total length is 190, and the coating width is 160 |
