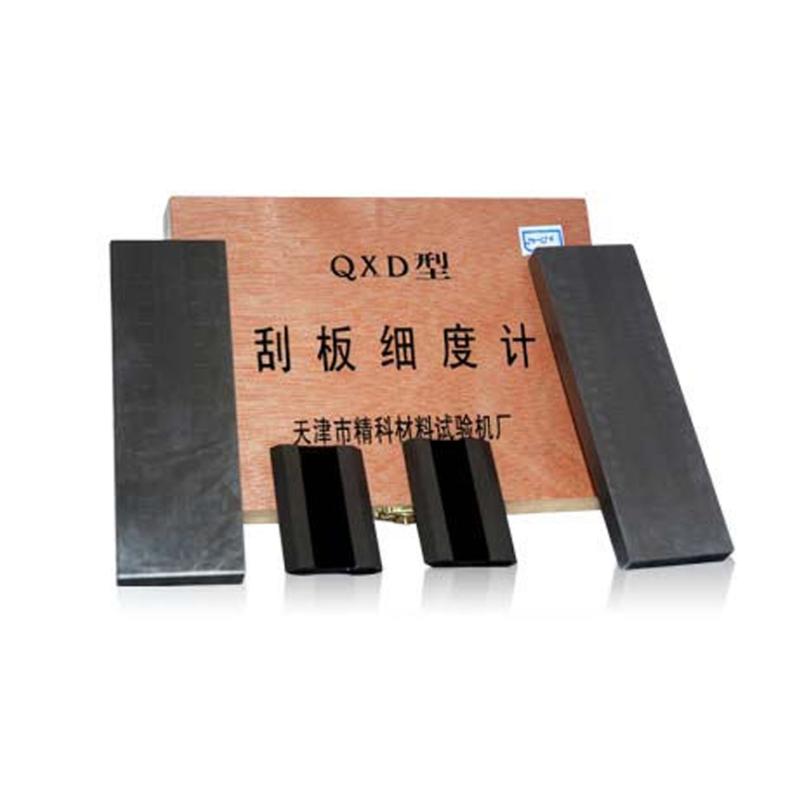

JINGKELIAN QXD (0-25um cr12 molybdenum vanadium) Grindometer Fineness gauge 0~25μm/2.5μm
JINGKELIAN QXD0-25um Grindometer is made of molybdenum vanadium, in line with GB1724 standard, is a single-channe Fineness Meter, QXD0-25um Graduation of 2.5 microns, chute size of 13 × 120mm.
QXD 0-25 (cr12 molybdenum vanadium)
Similar products
-
JINGKELIAN QXP 0-25 single-channe Fineness of Ground Gauge Fineness gauge 0-25μm/2.5μm$ 158.00SE -
TRUIT TR 1201/025 single-channe Fineness gauge 0~25μm$ 165.00SE -
JINGKELIAN QXP 0-25μm ISO single-channe Fineness of Ground Gauge with Third Party Measurement Certificate$ 220.00SE -
TQC VF2105 single-channe grinding Fineness of Grinding Gauge 0~25μm with calibrated certificate$ 1044.00SE -
Pushen QXD-25um single-channe Fineness gauge 0-25μm$ 161.00SE
JingKeLian QXD 0-25 (cr12 molybdenum vanadium) Fineness of Ground GaugeSPEC
JingKeLian QXD 0-25 (cr12 molybdenum vanadium) Fineness of Ground GaugeDetails
JingKeLian QXD 0-25 (cr12 molybdenum vanadium) Fineness of Ground GaugePacking list
- SKU
- NB004990
- Scraper type
- Single-channe
- Number of grooves
- 1
- range
- 0~25μm
- Scale unit
- μm
- Graduation
- 2.5μm
- scraper material
- Molybdenum Vanadium
- Scraper size
- 155*50*12mm
- Groove size
- 13*120mm
- Drawdown blade size
- 68*40*6.5mm
- Applicable standards
- GB1724-79
- Surface finish on scraper
- 10
- Chute bottom surface finish
- 8
- Drawdown blade two knife edge finish
- 8
- Drawdown blade two knife edge plane flatness
- 0.002mm
- Flat flatness on scraper
- 0.003mm
- Plane flatness of chute bottom
- 0.003mm
QXD 0-25 (cr12 molybdenum vanadium)
Fineness of Ground Gauge
Introduction
This Fineness Meter is designed according to the standard coating inspection method issued by the Ministry of Chemical Industry: Fineness meter determination method GB1724-79. It can be used to test the fineness of pigments, fillers and impurities in paints and paint slurries, expressed in microns. .
Purpose: Determine the particle size of fuel filling and impurities in paints, paint slurries and inks
Product picture display
FAQ
QDoes this scraper Fineness Meter come with two scraper blades?
A
Hello, yes.
QFineness gauge can be applied to GB/T13217.3?
A
OK
QCan the QXD25 Fineness gauge be used to scrape pigments up to 19 microns?
A
Yes, the scraper fineness Measurement can scrape 0~ 25μm or less material fineness.
Standard
- 1GB/T 17473.2-2008《Test methods of presious metals pastes used for microelectronics - Determination of fineness》
- 2HG/T 5776-2020《Water-based coatings for surface of rubber sealing products》
- 3HG/T 5370-2018《Waterborne coatings for bicycles》
- 4HG/T 5175-2017《Water-based decorative coating for glass and ceramic products》
- 5QB/T 2025-2013《Offset tin-printing ink》
- 6ASTM D1316-2020《Standard Test Method for Fineness of Grind of Printing Inks By the NPIRI Grindometer》
- 7ASTM D333-2021《Standard Guide for Clear and Pigmented Lacquers》
- 8GB/T 13217.3-2008《Test method for fineness of grind of liquid ink》
- 9GB/T 13492-1992《Various color automotive finishes》
- 10GB/T 17459-1998《Ductile cast iron pipe asphalt coating》
