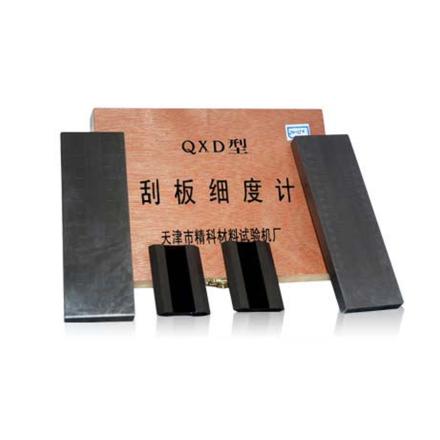

Brand：JingKeLian
Model：QXD 0-50 (cr12 molybdenum vanadium)
Name：Fineness of Ground Gauge
Specifications
| Scraper type | Single-channe |
| Number of grooves | 1 |
| range | 0~50μm |
| Scale unit | μm |
| Graduation | 5.0μm |
| scraper material | CR12 Molybdenum Vanadium |
| Scraper size | 155*50*12mm |
| Groove size | 13*120mm |
| Drawdown blade size | 68*40*6.5mm |
| Applicable standards | GB1724-79 |
| Surface finish on scraper | 10 |
| Chute bottom surface finish | 8 |
| Drawdown blade two knife edge finish | 8 |
| Drawdown blade two knife edge plane flatness | 0.002mm |
| Flat flatness on scraper | 0.003mm |
| Plane flatness of chute bottom | 0.003mm |
Packing list
Scraper x1, doctor blade x2
After-sales instructions
None
