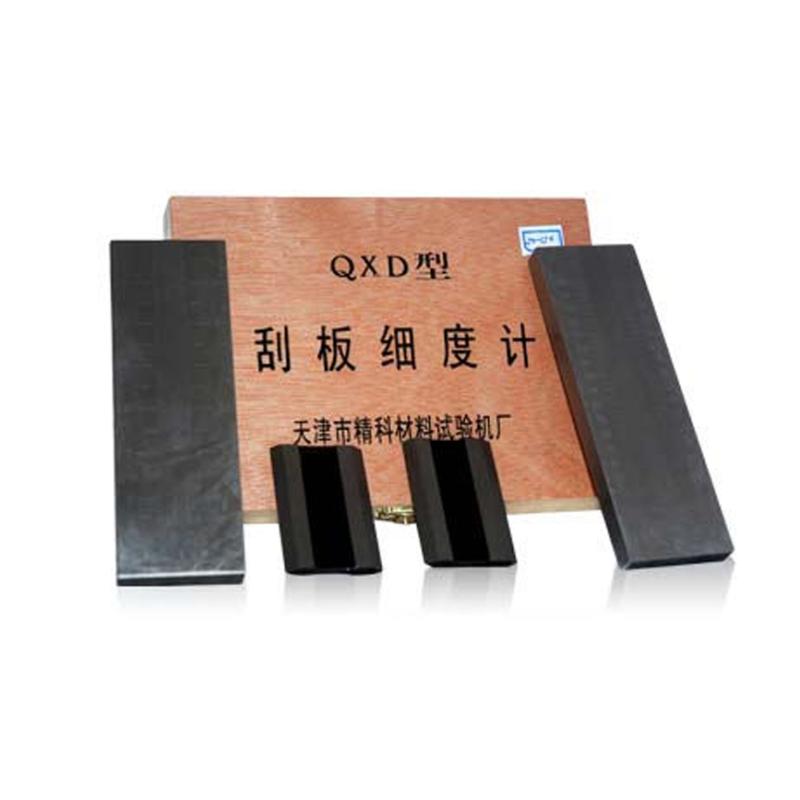

JINGKELIAN QXD 0-100 Grindometer cr12 Molybdenum Vanadium Fineness gauge 0~100μm/5μm

JINGKELIAN QXD 0-100 Fineness of Grinding Gauge is made of cr12 molybdenum vanadium material, with a range of 0~100 microns and a Graduation of 5.0 microns. QXD 0-100 is suitable for the fineness detection of impurity particles such as Coatings, pigments, and paint slurries.
Certificate
Contact
Details SPEC OI
Similar products

JingKeLian QXD 0-100 (cr12 molybdenum vanadium) Fineness of Ground GaugeSPEC

JingKeLian QXD 0-100 (cr12 molybdenum vanadium) Fineness of Ground GaugeDetails

JingKeLian QXD 0-100 (cr12 molybdenum vanadium) Fineness of Ground GaugePacking list

SKU
NB004992
Scraper type
Single-channe
Number of grooves
1
range
0~100μm
Scale unit
μm
Graduation
5.0μm
scraper material
CR12 Molybdenum Vanadium
Scraper size
155*50*12mm
Groove size
13*120mm
Drawdown blade size
68*40*6.5mm
Applicable standards
GB1724-79
Surface finish on scraper
10
Chute bottom surface finish
8
Drawdown blade two knife edge finish
8
Drawdown blade two knife edge plane flatness
0.002mm
Flat flatness on scraper
0.003mm
Plane flatness of chute bottom
0.003mm
QXD 0-100 (cr12 molybdenum vanadium)
Fineness of Ground Gauge
JINGKELIAN QXD 0-100 Grindometer cr12 Molybdenum Vanadium Fineness gauge 0~100μm/5μm Picture

Introduction

This Fineness Meter is designed according to the standard coating inspection method issued by the Ministry of Chemical Industry: Fineness meter determination method GB1724-79. It can be used to test the fineness of pigments, fillers and impurities in paints and paint slurries, expressed in microns. .

Purpose: Determine the particle size of fuel filling and impurities in paints, paint slurries and inks

Product picture display

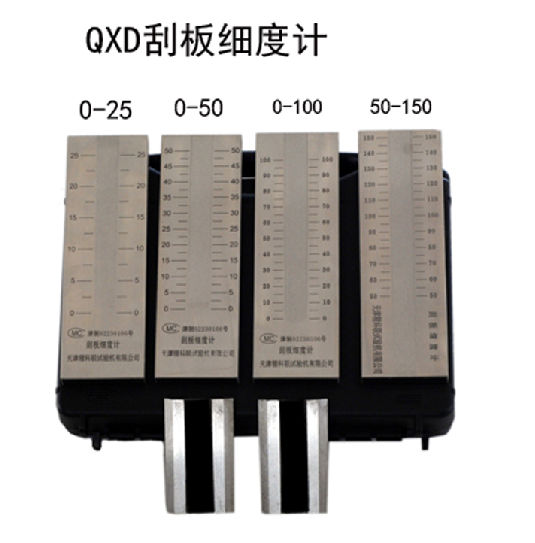

JinKeLian QXD 0-100 (cr12 molybdenum vanadium) scraper Fineness Meter details picture 1

FAQ
QWhat solvent will be used for cleaning the general scraper Fineness meter? Is it okay to clean with alcohol?
A Hello, it is OK to clean with alcohol, and Miscellaneous solvents without corrosive substances are also OK.
QI want to measure the cleanliness of emulsion paint. Is this Fineness Meter suitable?
A The number of particles in the emulsion paint above the Fineness meter reading is suitable for indicating the cleanliness of the emulsion paint and is therefore appropriate.
QWhat specifications of Fineness gauge do primers generally use?
A Fineness requirements for primers are generally not higher than 50μm/60μm, and a Fineness gauge with a range of 0 to 100 can be used, either single-channe or double-channel.
QFineness gauge can be applied to GB/T13217.3?
A OK
QCan the QXD100 single-channe Fineness gauge measure the size of 75 μm?
A Yes, the scraper fineness Measurement can scrape 0~ 100μm or less material fineness.
