JINGKELIAN QXD 50-150 Grindometer cr12 Molybdenum Vanadium Fineness gauge 50-150μm/10μm

JINGKELIAN QXD 50-150 Grindometer material is cr12 molybdenum vanadium, is a single-channe Fineness gauge, Graduation is 10 microns, QXD 50-150 conforms to GB1724 standard, drawdown blade size 68 × 40 × 6.5mm, chute 13 × 120mm.
Certificate
Contact
Details SPEC OI
Similar products

JingKeLian QXD 50-150 (cr12 molybdenum vanadium) Fineness of Ground GaugeSPEC

JingKeLian QXD 50-150 (cr12 molybdenum vanadium) Fineness of Ground GaugeDetails

JingKeLian QXD 50-150 (cr12 molybdenum vanadium) Fineness of Ground GaugePacking list

SKU
NB004993
Scraper type
Single-channe
Number of grooves
1
range
50~150μm
Scale unit
μm
Graduation
10μm
scraper material
CR12 Molybdenum Vanadium
Scraper size
155*50*12mm
Groove size
13*120mm
Drawdown blade size
68*40*6.5mm
Applicable standards
GB1724-79
Surface finish on scraper
10
Chute bottom surface finish
8
Drawdown blade two knife edge finish
8
Drawdown blade two knife edge plane flatness
0.002mm
Flat flatness on scraper
0.003mm
Plane flatness of chute bottom
0.003mm
QXD 50-150 (cr12 molybdenum vanadium)
Fineness of Ground Gauge

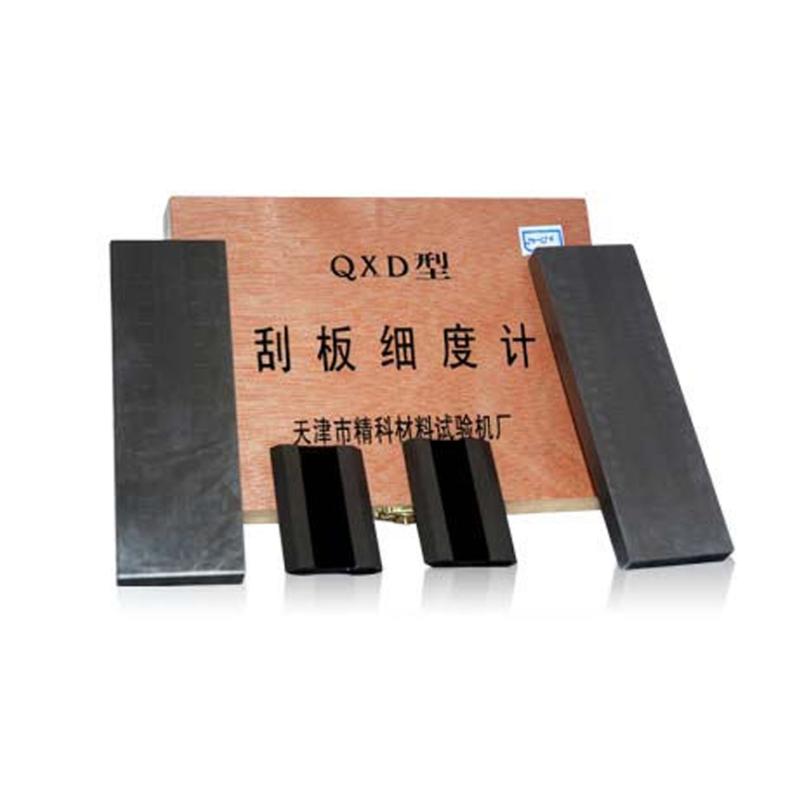

JINGKELIAN QXD 50-150 Grindometer cr12 Molybdenum Vanadium Fineness gauge 50-150μm/10μm Picture

Introduction

This Fineness Meter is designed according to the standard coating inspection method issued by the Ministry of Chemical Industry: Fineness meter determination method GB1724-79. It can be used to test the fineness of pigments, fillers and impurities in paints and paint slurries, expressed in microns. .

Purpose: Determine the particle size of fuel filling and impurities in paints, paint slurries and inks

Product picture display

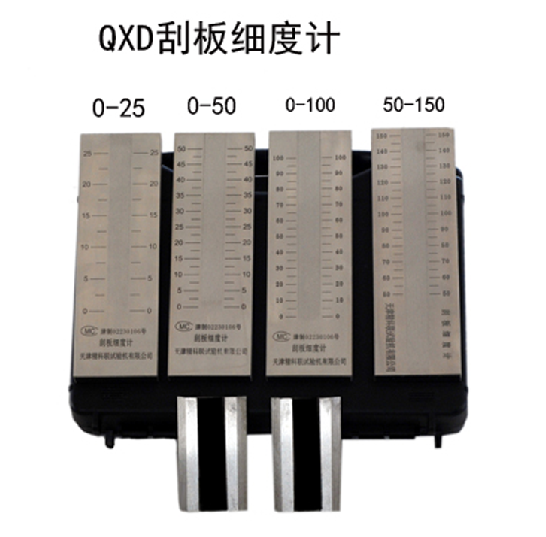

JinKeLian QXD 50-150 (cr12 molybdenum vanadium) scraper Fineness Meter details picture 1

FAQ
QWhat is the range of this Fineness gauge?
A Hello, the range is 50~ 150μm.
QDoes the Fineness gauge meet the specifications of GB/T17459?
A Model QXD 50-150 (cr12 molybdenum vanadium) Fineness gauge
QCan the JINGKELIAN QXD5150 Fineness gauge detect paint up to 90 microns?
A In line with the scraper fineness Measurement can scrape the sample fineness below 50-150 μ m.
