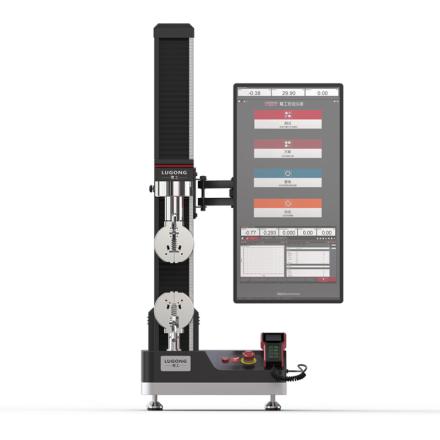

LUGONG LG-58SC-1 Microcomputer-controlled electronic universal testing machine Specifications
Search
Brand：LUGONG
Model：LG-58SC-1
Name：Microcomputer-controlled electronic universal testing machine
Specifications
| maximum test force | 1kN |
| Accuracy class | Level 0.5 |
| Measurement range | 0.4%～100%F.S |
| Test error of indication | +/- 0.5% of the indication |
| Test force resolution | 500,000 code, the whole process is not divided into gears, and the whole process resolution remains unchanged |
| effective test width | 400mm |
| Cross beam travel (without fixtures installed) | 700mm |
| Displacement error of indication | +/- 0.5% of the indication |
| Displacement resolution | 0.04μm |
| Measurement range | 0.4%～100%F.S； |
| Deformation indication relative error | +/- 0.5% of the indication |
| Stress control rate range | 0.005～5%FS/s |
| Stress control rate Accuracy | When the rate is < 0.05% FS/s, it is within +/- 1% of the set value, and when the rate is ≥ 0.05% FS/s, it is within +/- 0.5% of the set value |
| Strain control rate range | 0.005～5%FS/s |
| Strain control rate Accuracy | When the rate is < 0.05% FS/s, it is within +/- 1% of the set value, and when the rate is ≥ 0.05% FS/s, it is within +/- 0.5% of the set value |
| Displacement control rate range | 0.001～500mm/min |
| Displacement control rate Accuracy | +/- 0.5% of the set value |
| Host size (width × depth × height) | 470*470*1220mm |
| Power Supply | Single Phase, 220V +/- 10%, 50Hz; Power 1kW |
| Host Weight | About 65kg |
