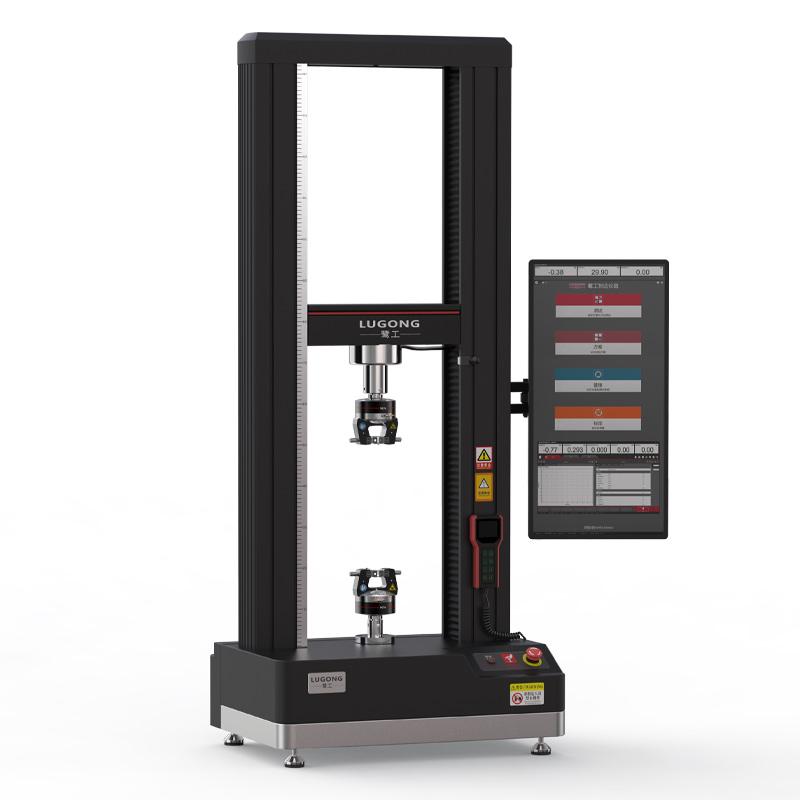

LG-58TM-10 Microcomputer-controlled electronic universal testing machine, material testing machine 10kN
LG-58TM-10
LUGONG LG-58TM-10 Microcomputer-controlled electronic universal testing machineSPEC
LUGONG LG-58TM-10 Microcomputer-controlled electronic universal testing machineDetails
LUGONG LG-58TM-10 Microcomputer-controlled electronic universal testing machinePacking list
- SKU
- NB049998
- maximum test force
- 10kN
- Accuracy class
- Level 0.5
- Measurement range
- 0.4%～100%F.S
- Test error of indication
- +/- 0.5% of the indication
- Test force resolution
- 500,000 code, the whole process is not divided into gears, and the whole process resolution remains unchanged
- effective test width
- 400mm
- Cross beam travel (without fixtures installed)
- 1150mm
- Displacement error of indication
- +/- 0.5% of the indication
- Displacement resolution
- 0.04μm
- Measurement range
- 0.4%～100%F.S；
- Deformation indication relative error
- +/- 0.5% of the indication
- Stress control rate range
- 0.005～5%FS/s
- Stress control rate Accuracy
- When the rate is < 0.05% FS/s, it is within +/- 1% of the set value, and when the rate is ≥ 0.05% FS/s, it is within +/- 0.5% of the set value
- Strain control rate range
- 0.005～5%FS/s
- Strain control rate Accuracy
- When the rate is < 0.05% FS/s, it is within +/- 1% of the set value, and when the rate is ≥ 0.05% FS/s, it is within +/- 0.5% of the set value
- Displacement control rate range
- 0.001～500mm/min
- Displacement control rate Accuracy
- +/- 0.5% of the set value
- Host size (width × depth × height)
- 750*540*1750mm
- Power Supply
- Single Phase, 220V +/- 10%, 50Hz; Power 1kW
- Host Weight
- About 170kg
Product Use:
Metallic materials; Aerospace; powder metallurgy; manufacturing of magnetic materials and ceramics; rubber plastics; Metrological quality inspection; Commodity inspection arbitration; technical supervision department; Colleges and universities; scientific research laboratories; Basic Materials Laboratory; metallurgical iron and steel; mechanical engineering; electrical and electronics; automobile production; textile chemical fiber; wires and cables; packaging materials and food; instrumentation; medical devices; petrochemical industry; civil nuclear energy; energy batteries; base materials; special materials and other fields.
Meet the criteria
This machine is manufactured in accordance with GB/T2611-2022 test and general technical conditions and GB/T 16491-2022/standard of "Electronic Universal Testing Machine";
Compatible with hundreds of fixtures and fixtures, meeting ASTM, ISO, GB and other related standards;
This machine is verified and accepted according to GB/T12160 and GB/T16825;
