RDS 7 #3/8 "Mayer Rods WFT 16.0μm Length 400mm

SE
Wire-wound, wet film thickness 16.0μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel, Wire diameter 0.18mm.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 7# 3/8" Applicator rod 3/8 "SPEC

RDS 7# 3/8" Applicator rod 3/8 "Details

RDS 7# 3/8" Applicator rod 3/8 "Packing list

SKU
NB000005
Production process
wire-wound
WFT
16.0μm
diameter
9.52mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
Wire diameter
0.18mm
7# 3/8"
Applicator rod 3/8 "
Wire-wound, wet film thickness 16.0μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel, Wire diameter 0.18mm.

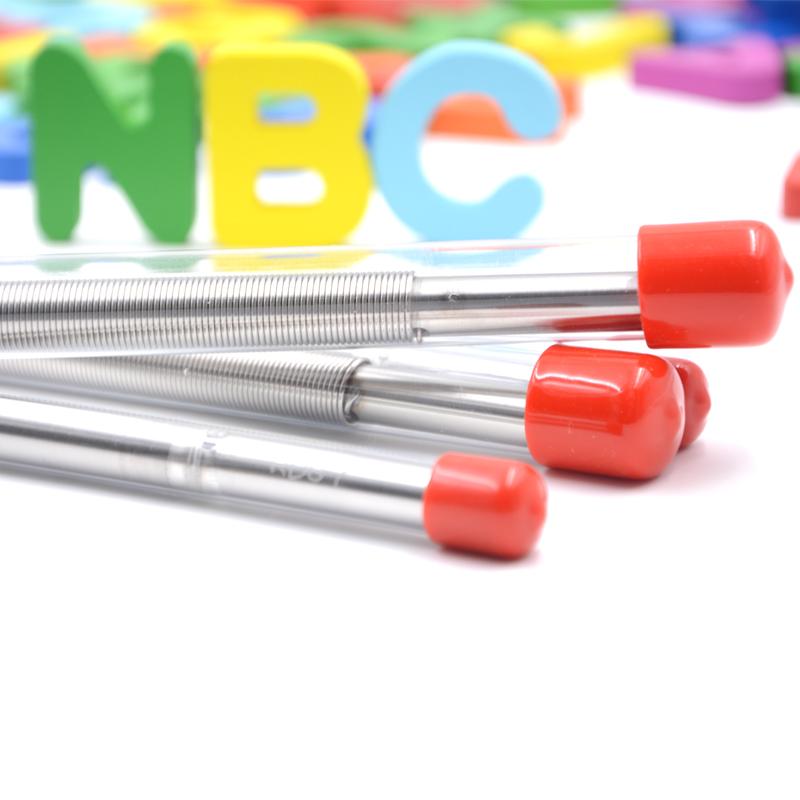

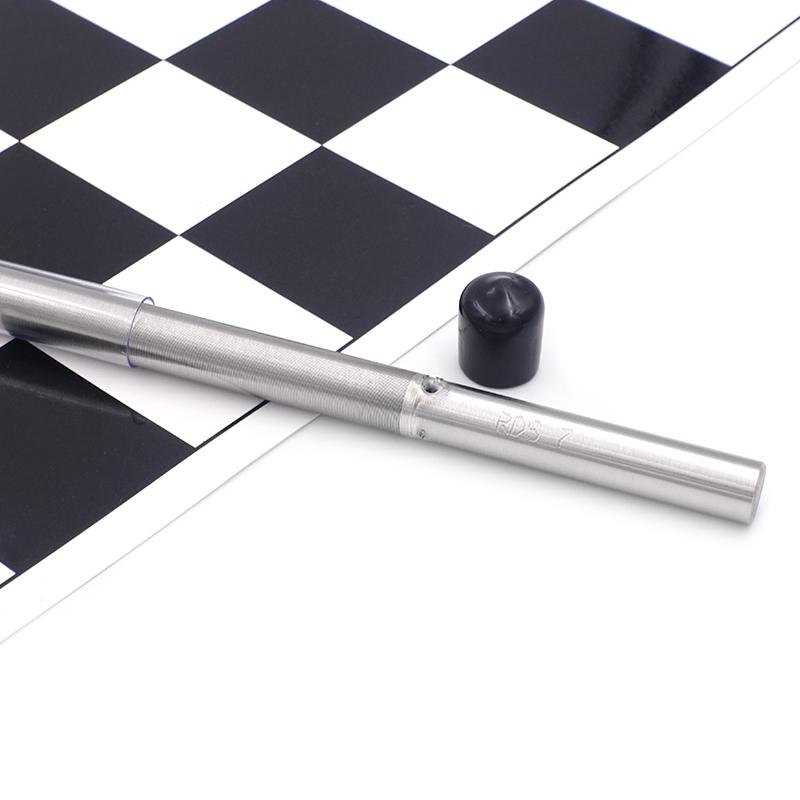

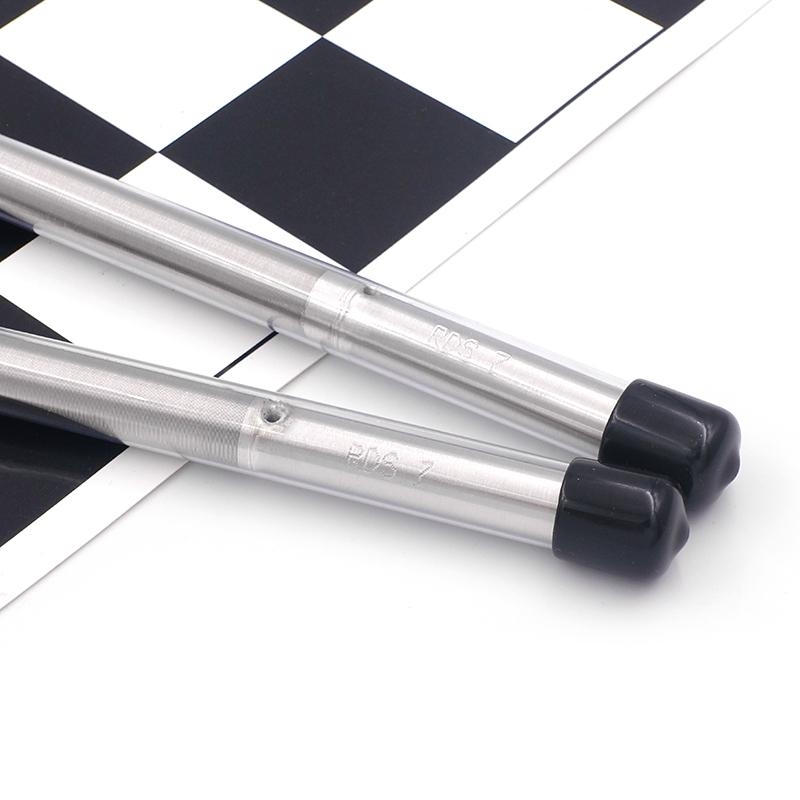

RDS 7 #3/8 "Mayer Rods WFT 16.0μm Length 400mm Picture

RDS coating Rods Figure 1

RDS coating Rods Figure 2

RDS coating Rods Figure 3

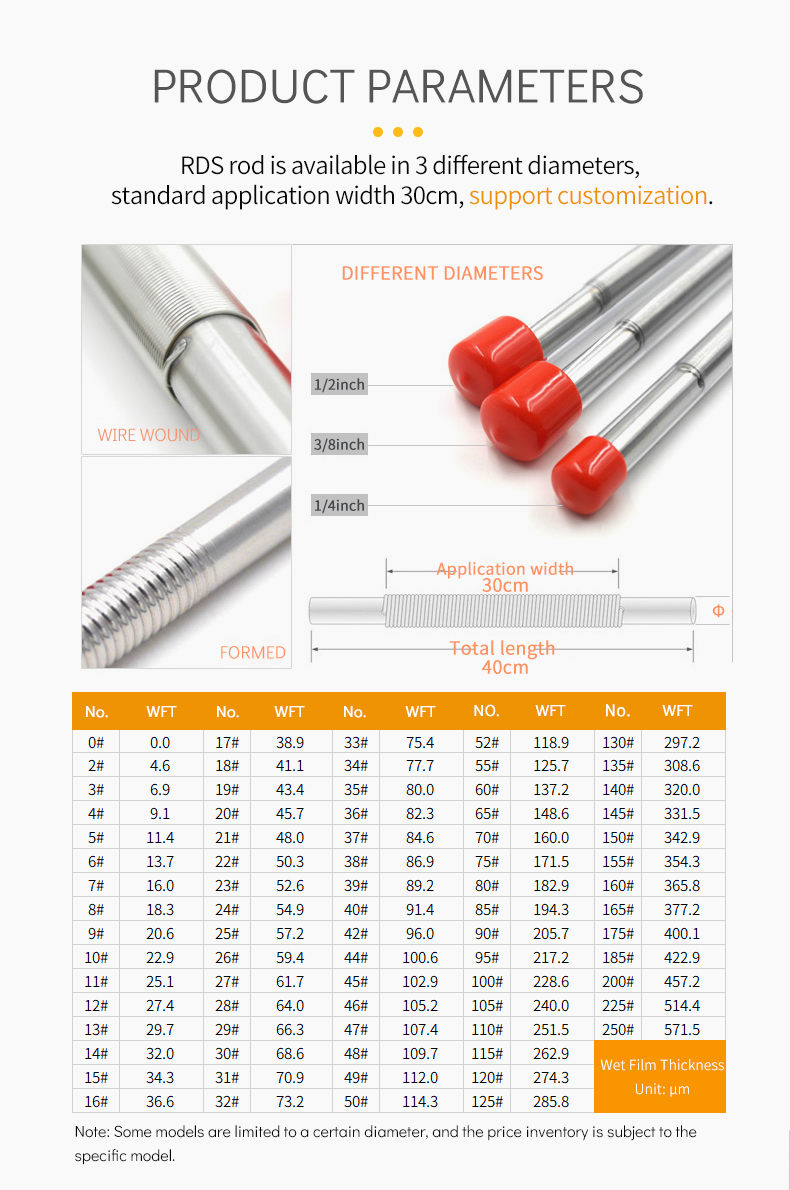

RDS coating Rods Figure 4

RDS coating Rods Figure 5

RDS coating Rods Figure 6

RDS coating Rods Figure 7

RDS coating Rods Figure 8

RDS coating Rods Figure 9

RDS coating Rods Figure 10



FAQ
QIs there a 15 micron RDS bar?
A RDS7 rod is 16 microns, nothing is exactly 15 microns.
QCan coatings white codine, what number of RDS coating rod is used for Gloss oil?
A No. 7 can be considered. Of course, it needs to be considered according to the purpose of your Moulding.
QWire bar conversion rate 20% solid content, wet-film 16 microns, Dry-Film budget is 3.2 microns, actually 2.2 microns.
A The conversion rate of the experimental rod can also be understood as the accuracy of the wire rod; Imported bar accuracy +/- 1μm, according to 20% solid content, wet-film 16 μm, theoretical Dry-Film is 3.2 μm, and the actual Dry-Film thickness is 3.2 μm +/- 1μm; The conversion rate is about 70%.
QCan PVA be applied to PET film as solvent?
A Can be applied, support trial. PET film is recommended with Film Applicator
QI would like to ask if there is a Spreader with a moisture content between 15-20g, and which model of RDS should I use? 35-40% dry weight is about 6g.
A 40% solid content, wet film thickness 16 microns If you press 35% solid content, use wet film thickness 18 microns Just 7 and 8.
QI would like to ask if there is a Spreader with a moisture content between 15-20g, and which model of RDS should I use?
A Hello, 40% solid content, wet film thickness 16 microns, if you press 35% solid content, use wet film thickness 18 microns, on No. 7 and No. 8.
QSpreader wet film thickness of less than 20um coating bar?
A Hello, the American RDS2~ 7 film Film thickness is less than 20μm.
QRDS Mayer Rods film Film thickness 16 microns which bar number?
A Hello, it's stick number 7.
QCan RDS rod be used for thermal transfer sample preparation?
A Hello, it's OK.
QDoes the 7 #Coating Mayer Rods have a matching handle?
A Hello, there is no matching handle. RDS Mayer Rods do not need a matching handle. There are hand grips at both ends to hold.
