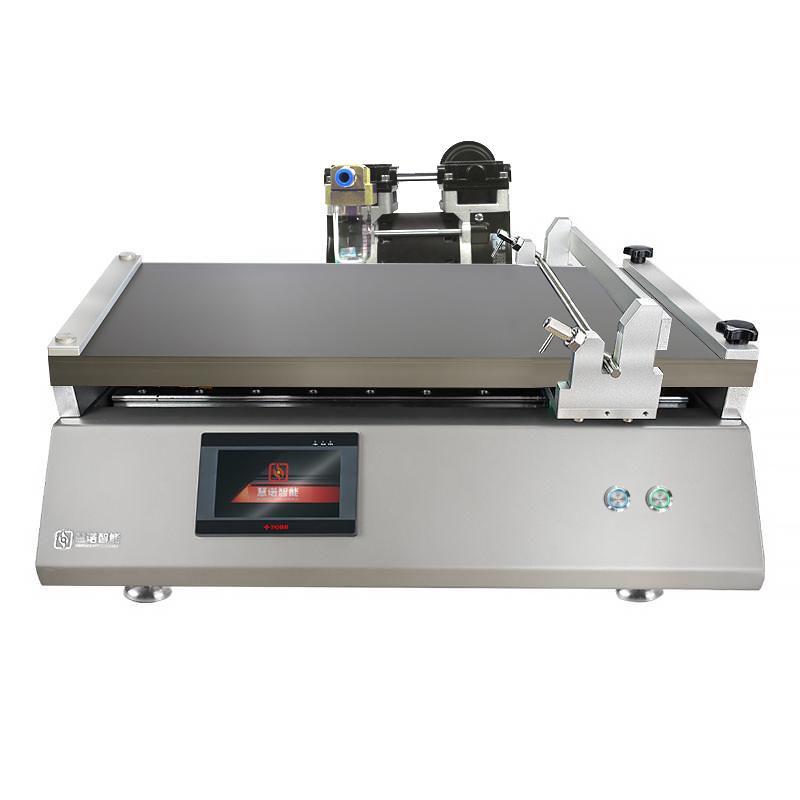

Huinuo TM1300pro/02 wire rod heating vacuum adsorption coating machine, coating instrument, effective area 60 * 40cm
SE
TM1300pro/02
HuiNuo TM1300pro/02 Automatic coating machineSPEC
HuiNuo TM1300pro/02 Automatic coating machineDetails
HuiNuo TM1300pro/02 Automatic coating machinePacking list
- SKU
- NB050091
- Coating method
- Wire rod coating
- coating rate

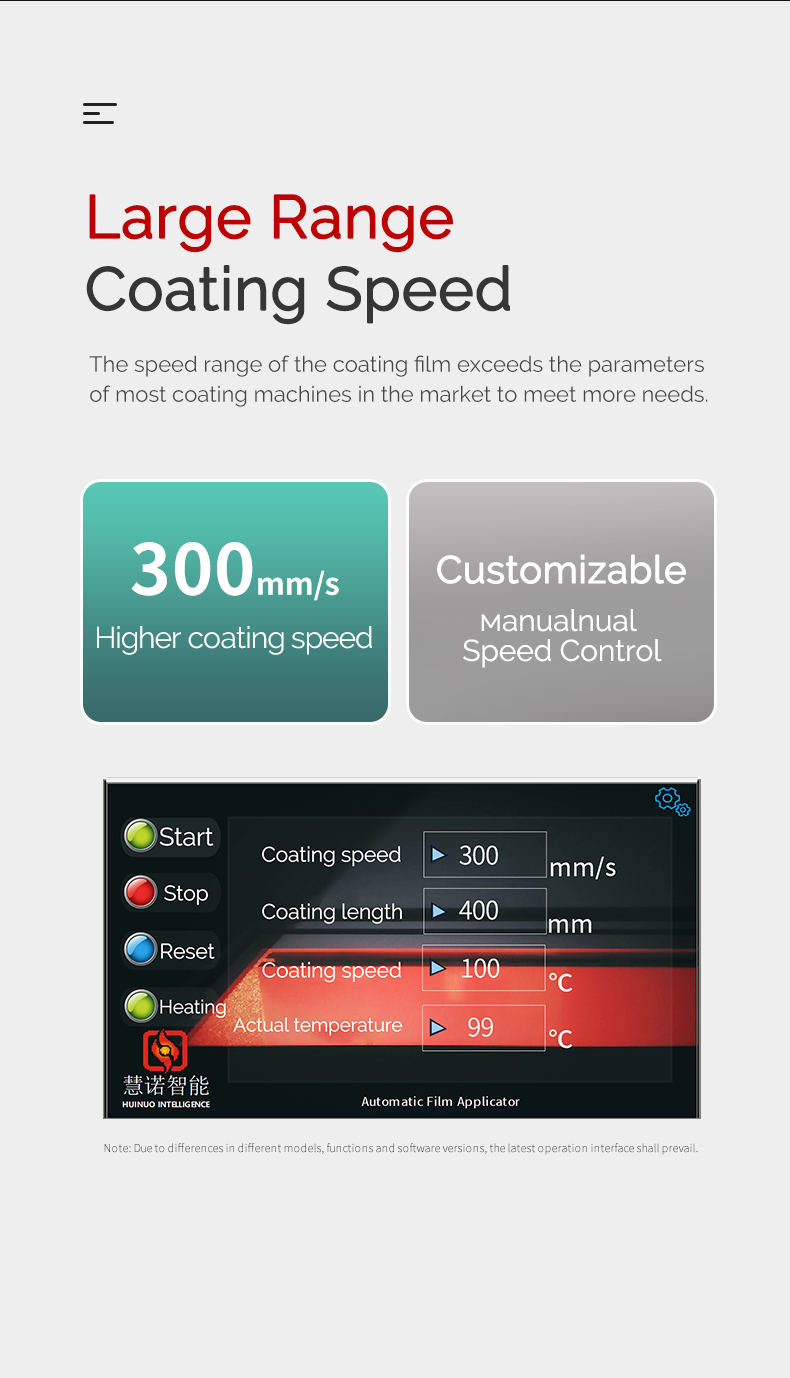

- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate fixing method

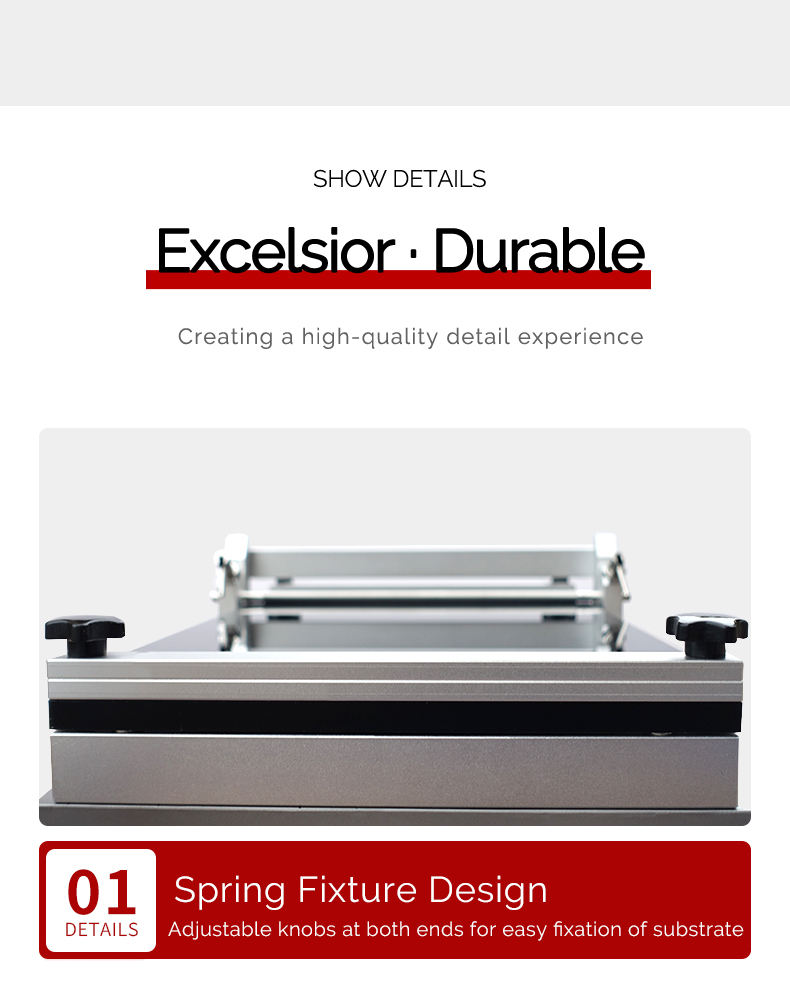

- Vacuum adsorption + fixture
- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 840*430mm
- Effective coating area
- 600 * 400Mm (can be customized)
- Wire bar coating thickness range
- Different rod numbers have different thicknesses, with high-precision imported wire rods
- Wire rod coating Accuracy
- ±0.001mm
- Vacuum Area
- 680 * 360Mm (can be customized)
- vacuum aperture
- Φ0.8mm
- Vacuum hole spacing
- 20*20mm
- Pumping Speed
- 5.4m3/h
- Ultimate Vacuum
- 50KPa
- Vacuum pump power
- 180W
- Vacuum pump Weight
- 7.1kg
- Heating method
- Mica sheet heating (optional graphene heating, faster thermal conductivity)
- Heating temperature range
- RT +~ 180 ℃ (can be customized)
- temperature uniformity
- ±1℃

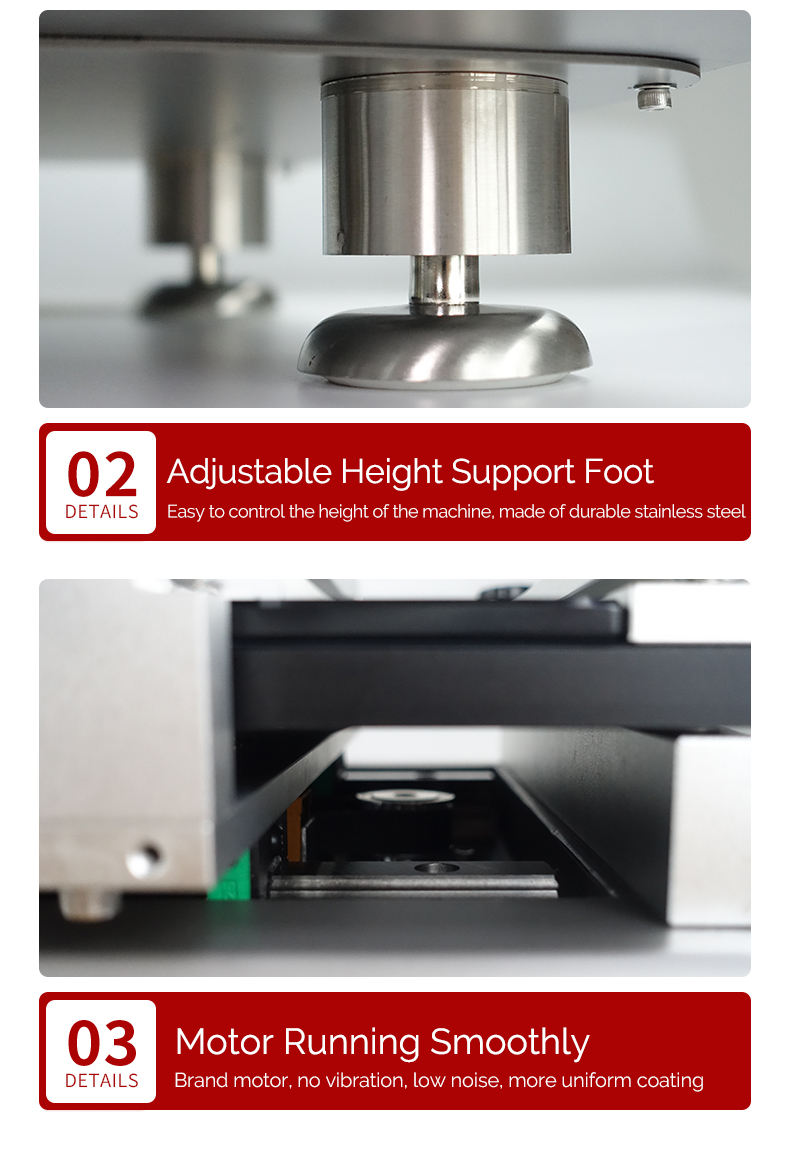

- Drive motor
- Servo motor
- operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 220V/50HZ (can be customized 110V/60HZ)
- power
- 2000W

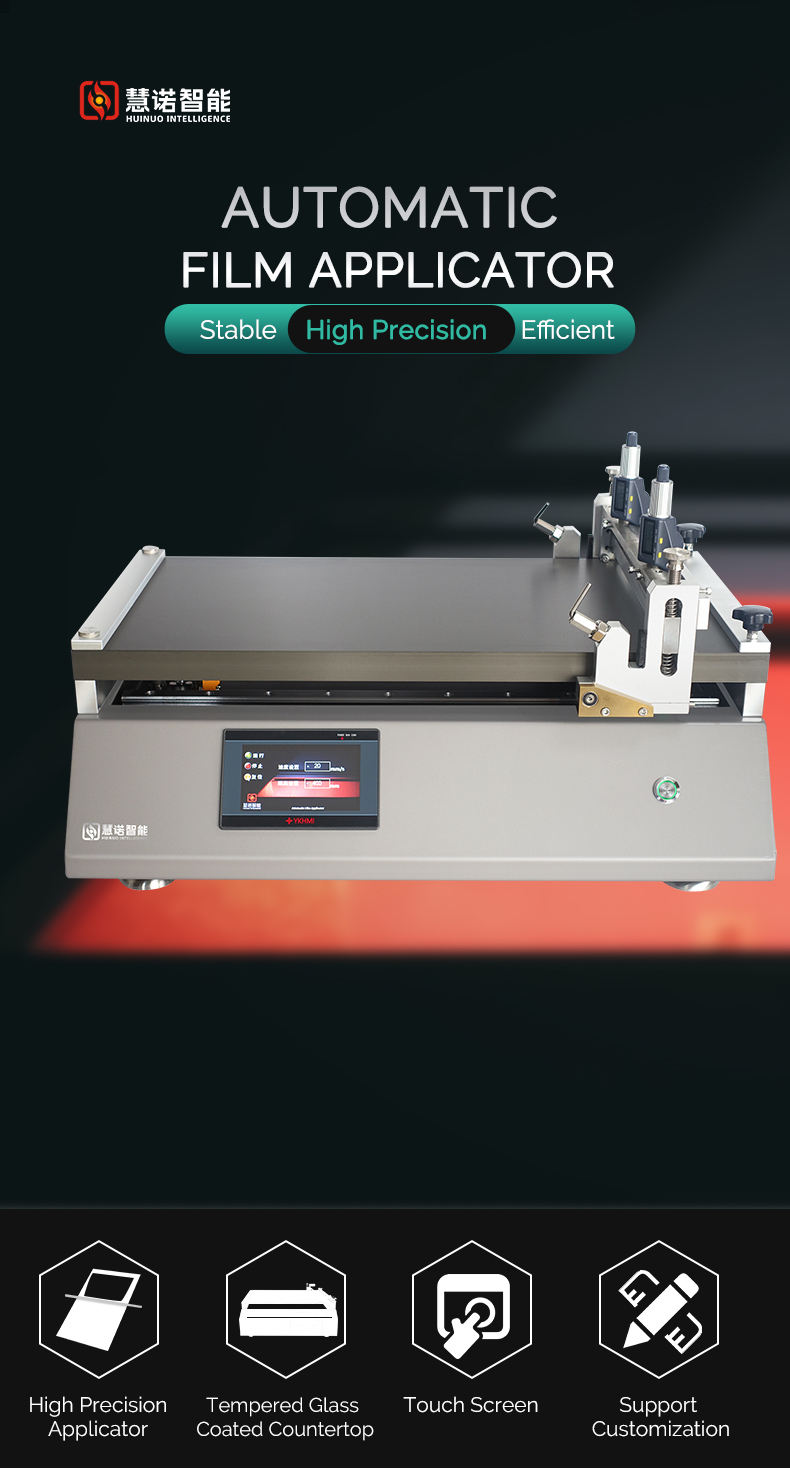

Product Overview:
Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.

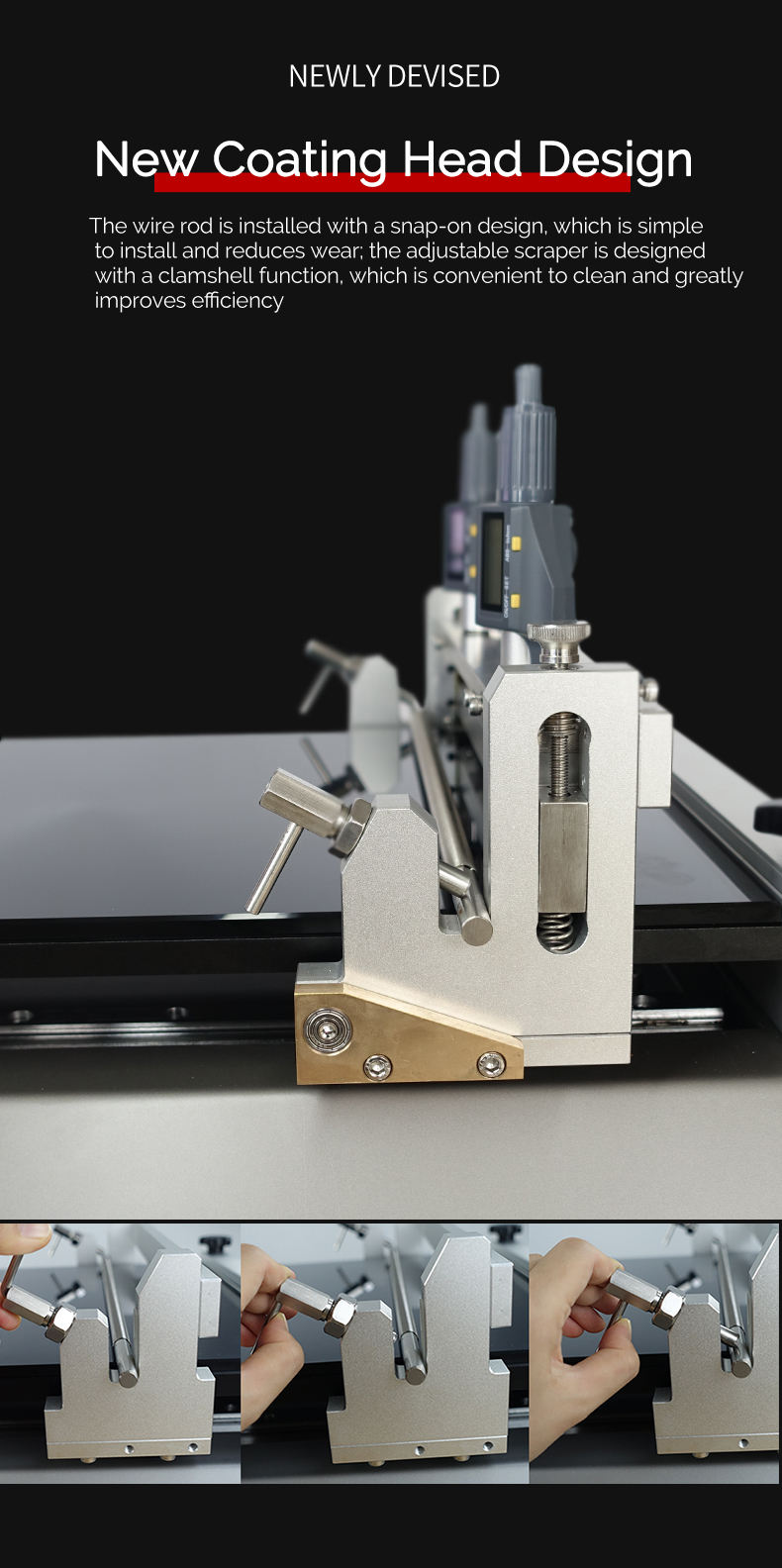

This coating machine is a high-precision wire rod coating machine using servo motor.With heating and vacuum adsorption,The new wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, support speed control and coating length adjustment, suitable for high-precision automatic coating of film in the laboratory, and carry out film proofing in university research institutes, new materials, lithium batteries, glue, resin and other laboratories.
Product Use:
The film coating machine is suitable for coating and sample coating of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabrics.
Features

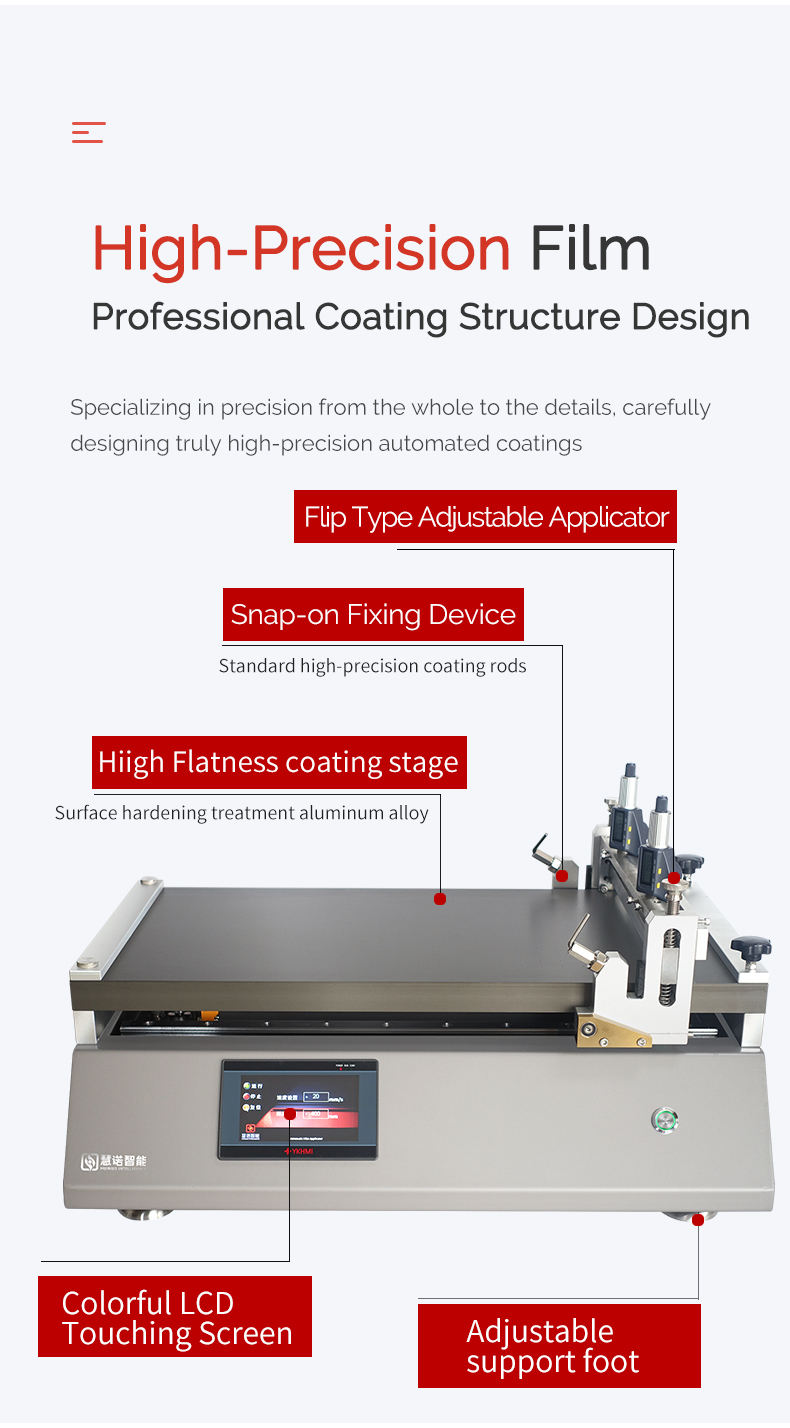

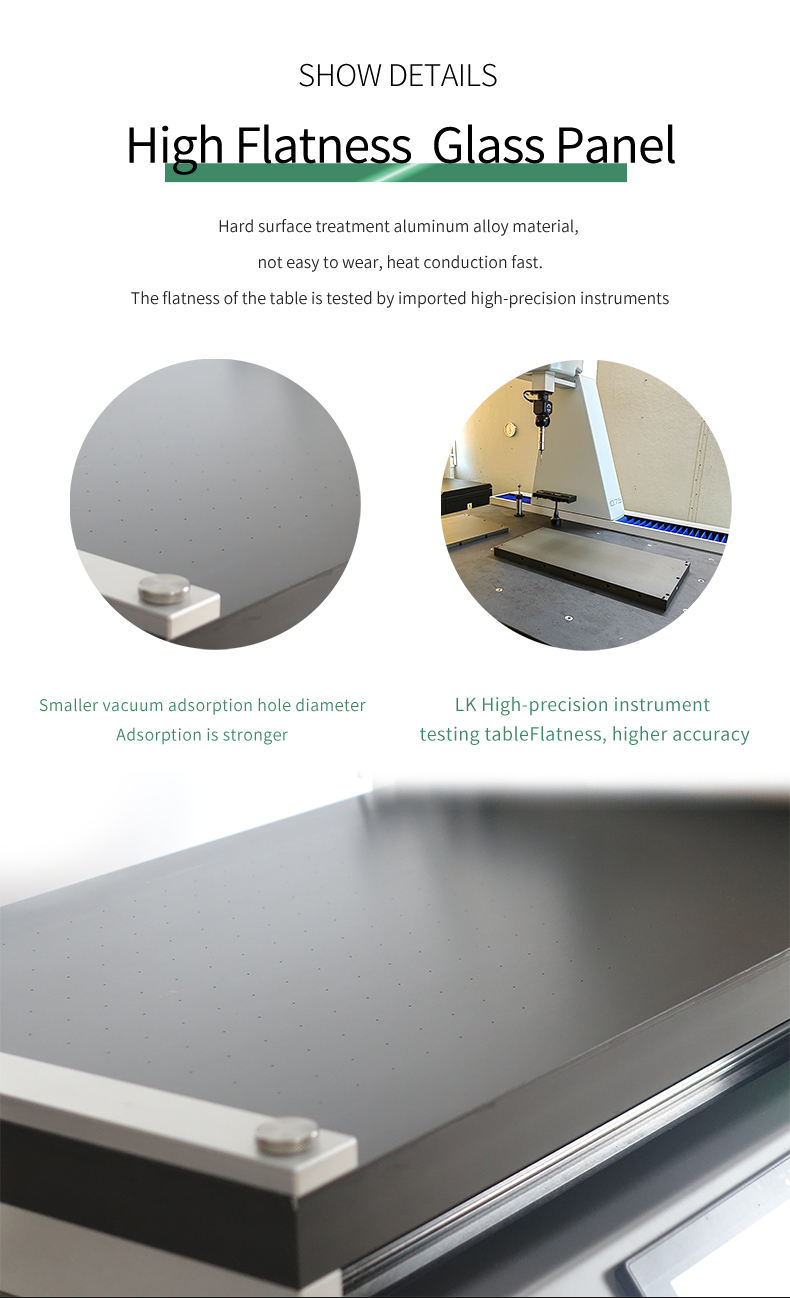

1) Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments.
2) Big brand differential adjuster, high film thickness control accuracy
3) With heating and vacuum adsorption functions
4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and high accuracy
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
7) Servo motor is adopted, stable operation, and higher coating accuracy
