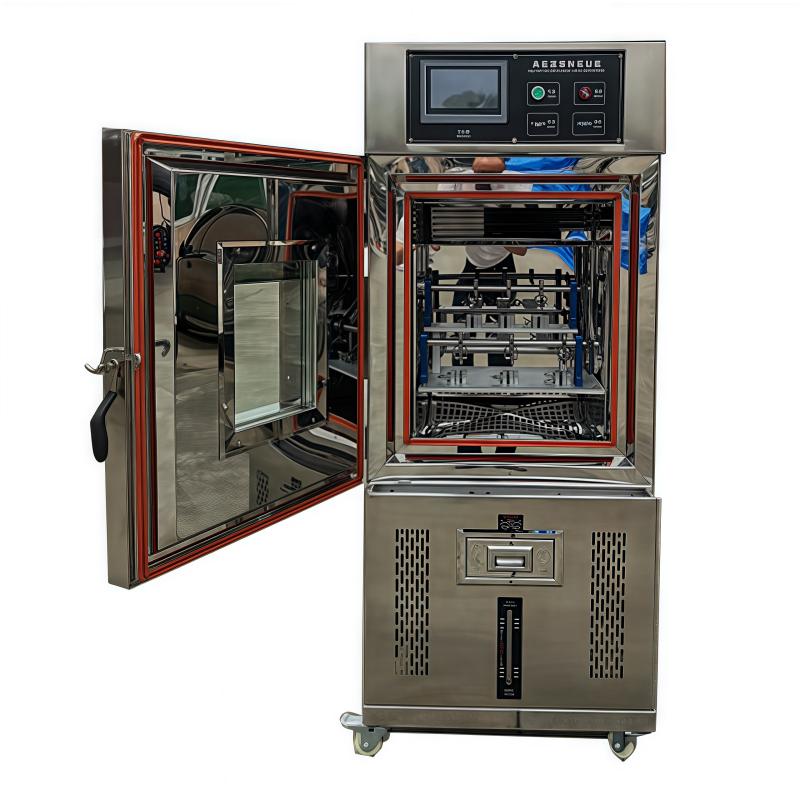

Factory Direct NBC-DW-5029 vertical low temperature folding Tester
Temperature range -40 ℃ + 150 ℃, control accuracy ± 0.3 ℃, temperature uniformity ± 2 ℃, refrigerant R404 environmentally friendly refrigerant, compressor original fully enclosed, compressor start delay 5min, counter LCD, 0~999,999
$5978.00/set
PromotionLoading...
Coupon
Model：
NBC-DW-5029
Factory
Factory NBC-DW-5029 Vertical low temperature folding TesterSPEC
Factory NBC-DW-5029 Vertical low temperature folding TesterDetails
Factory NBC-DW-5029 Vertical low temperature folding TesterPacking list
- SKU
- NB050094
- Inner & Outer Chamber Material
- Stainless steel #304
- Controller
- Guangzhou Youyi
- Temperature range
- -40℃+150℃
- control Accuracy
- ±0.3℃
- temperature uniformity
- ±2℃
- Cooling rate
- It takes about 60 minutes at room temperature to -40 ° C
- Refrigerant
- R404 environmentally friendly refrigerant
- compressor
- Original fully enclosed
- Compressor start delay
- 5min
- power consumption
- (4-6)KW
- Thermal Insulation
- Hard foam and glass wool
- Counter
- LCD,0~999,999
- window
- (210×35×270)mm
- Window view
- P1 power, 5W
- motor
- Belt-less multi-imported gear reduction motor
- Protection device
- Thermal protection shutdown, leakage protection shutdown, over-temperature protection, overload protection and other functions
- Optional inner box action
- Installed finished shoes are resistant to bending, outsole is resistant to twisting, and leather is flexible and fixture.
- Inner box size
- (500 × 500 × 600) mm is mainly based on the actual size (6 sets of leather folding resistance)
- Power Supply
- AC220V 50Hzor1 AC220V 50HZ
- Volume
- (110 × 105 × 160) cm is mainly based on the actual size
- Weight
- 420kg
NBC-DW-5029
Vertical low temperature folding Tester
Temperature range -40 ℃ + 150 ℃, control accuracy ± 0.3 ℃, temperature uniformity ± 2 ℃, refrigerant R404 environmentally friendly refrigerant, compressor original fully enclosed, compressor start delay 5min, counter LCD, 0~999,999
Product Description:
This machine is used to test the cold resistance of finished shoes, rubber, plastic, soles, synthetic leather, etc. to understand the adaptation of materials or finished products to low temperature climate or cold regions, this machine is made of stainless steel and can be equipped with various resistant fixtures to meet different requirements.
According to the standard
ASTM-D1790，D1593,1052，JIS-K6545，HB-T2877，CNS-7705，ISO 20344，GB/T20991-2007
FAQ
QI want to test the cold resistance of the sole, which instrument should I choose?
A
Recommended NBC-DW-5029 vertical low temperature folding test machine, it is specially designed for sole, rubber and other materials, the temperature can be as low as -40 ℃, can simulate the cold environment test material folding performance, in line with footwear testing standards.
QCan this instrument measure the resistance of leather? Is additional configuration required?
A
Yes! The instrument supports optional leather flex-resistant jigs. You just need to inform your needs and we will install it for you. It adopts stainless steel structure, is compatible with a variety of jigs, and is suitable for cold-resistant flex testing of leather, synthetic leather and other materials.
