Huinuo TM3000pro/16 wire rod scraper coating machine, effective area 80 * 80cm servo motor
SE
TM3000pro/16
HuiNuo TM3000pro/16 Automatic coating machineSPEC
HuiNuo TM3000pro/16 Automatic coating machineDetails
HuiNuo TM3000pro/16 Automatic coating machinePacking list
- SKU
- NB050102
- Coating method
- Wire rod + scraper
- coating rate

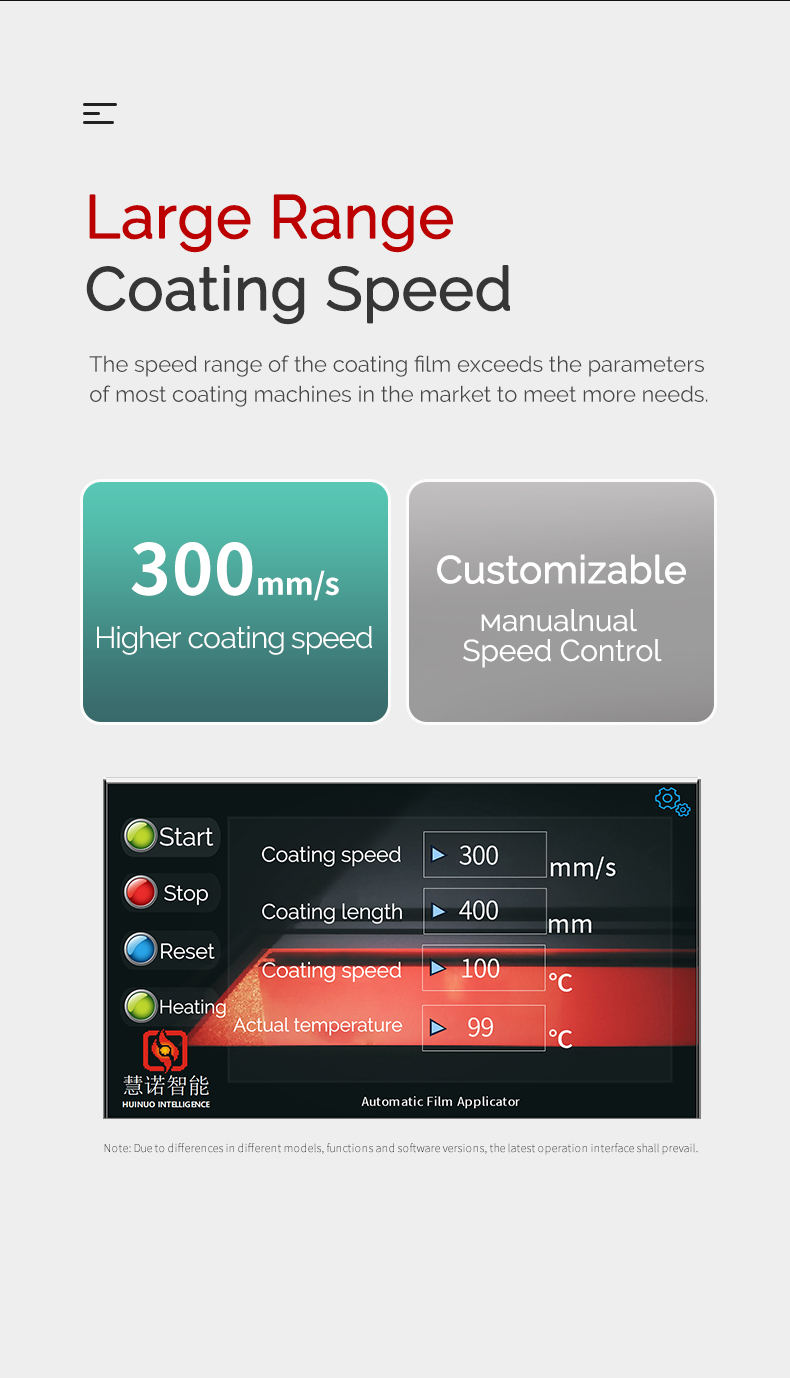

- 1~ 300Mm/s stepless speed regulation (can be customized)

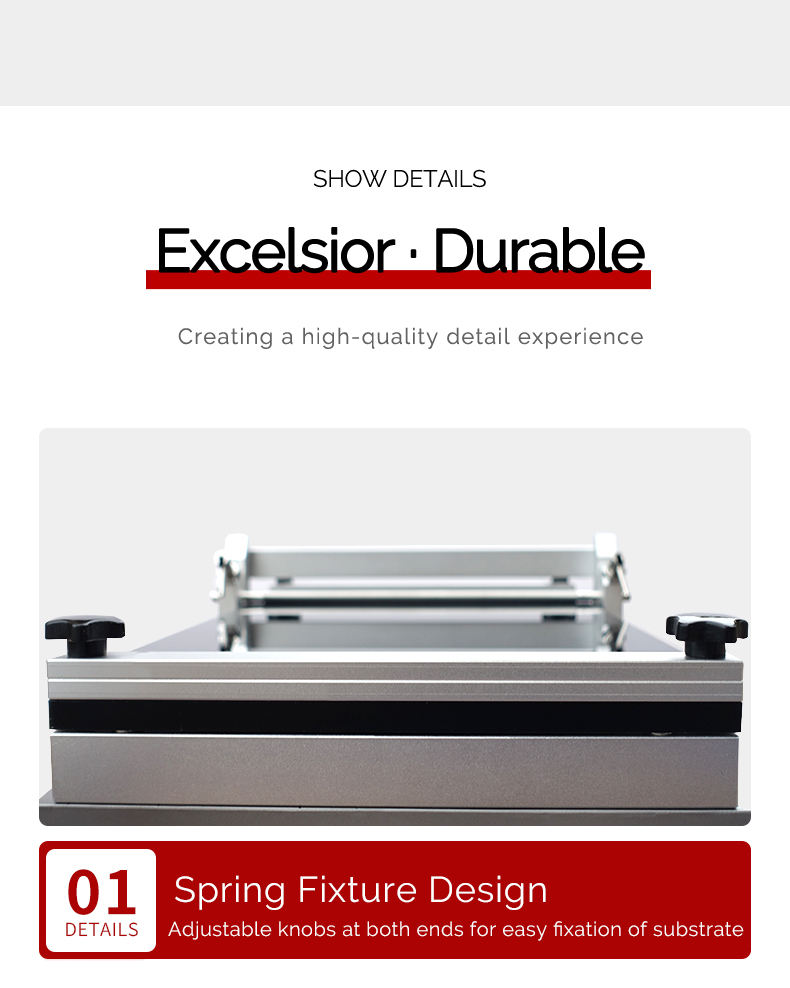

- Substrate fixing method
- fixture

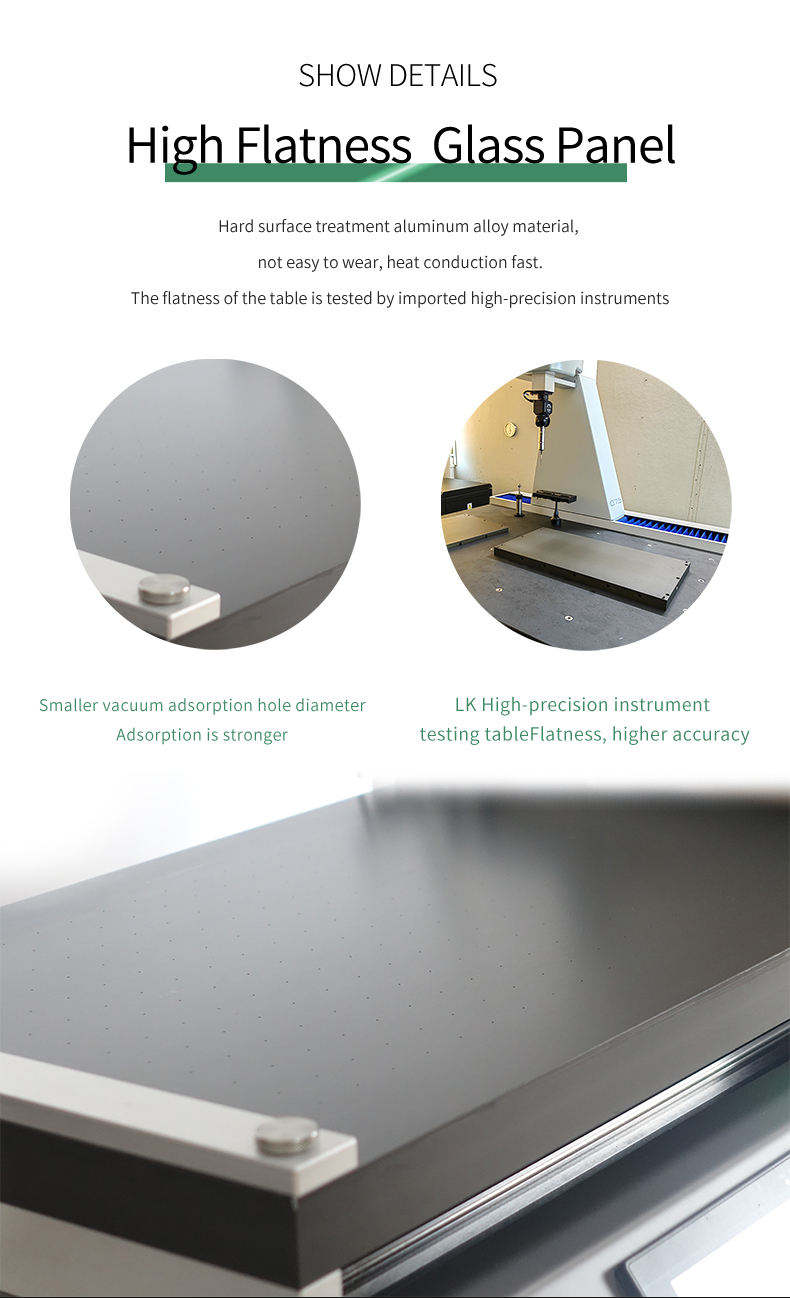

- Coating table material
- Hard aluminum alloy plate (optional glass plate)
- Coating table size
- 1040*830mm
- Effective coating area
- 800 * 800Mm (can be customized)
- Wire bar coating thickness range
- Different rod numbers have different thicknesses, with high-precision imported wire rods
- Wire rod Accuracy
- ±0.001mm
- Scraper coating thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Scraper material
- Die steel
- Scraper coating width
- 800mm
- Scraper coating Accuracy
- ±0.003mm
- Drive motor
- Servo motor
- power
- 400w
- operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 100V~220V/50~60HZ
- external Dimensions
- 1060 * 940 * 430Mm (subject to the actual product)
- optional feature
- Heating, vacuum adsorption
Product Overview:

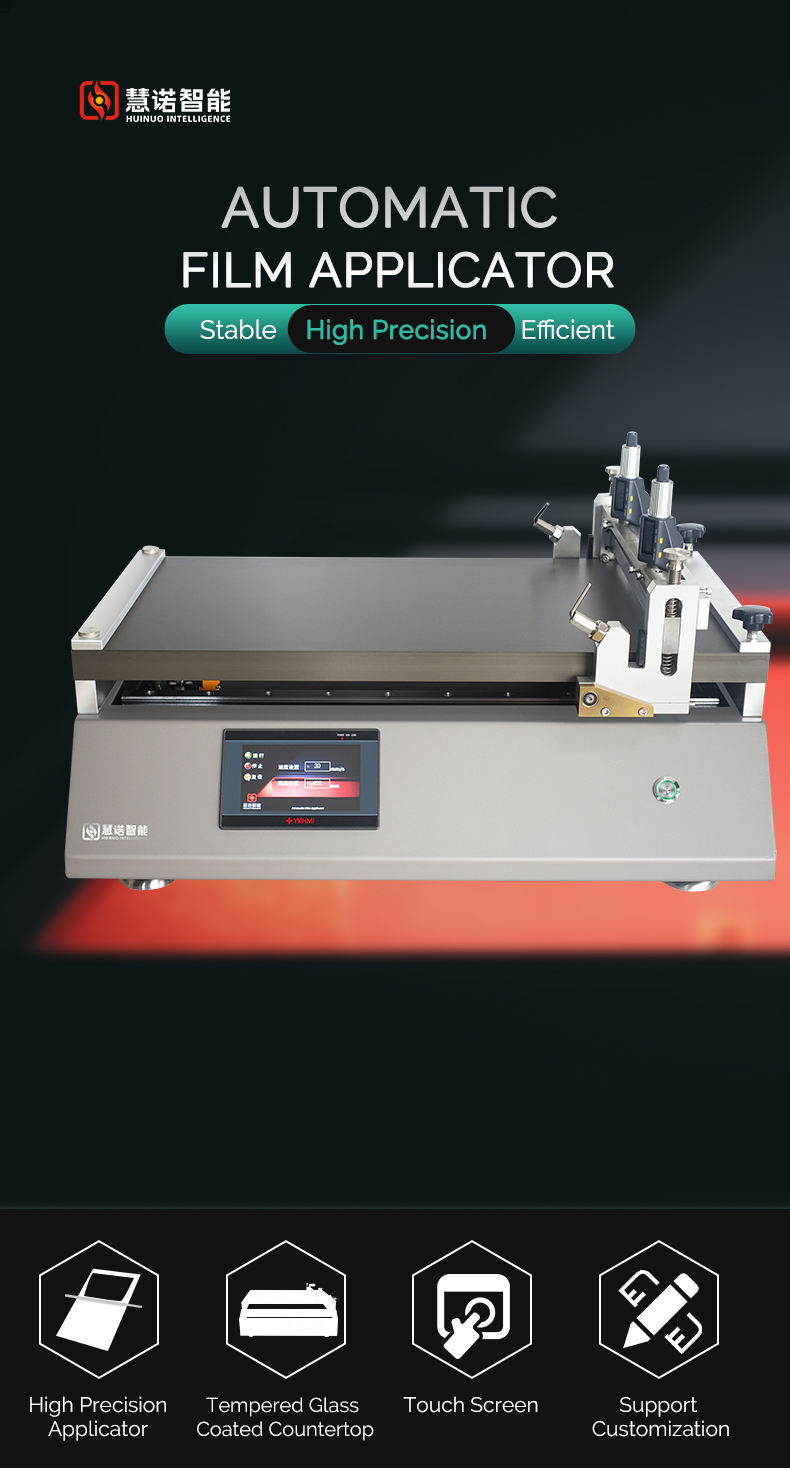

Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.
This coating machine is a wire rod scraper coating machine, with two functions of wire rod coating and scraper coating, the new wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for high-precision automatic coating of film in the laboratory, in university research institutes, new materials, lithium batteries, glue, resin and other laboratories for film proofing.
Product Use:

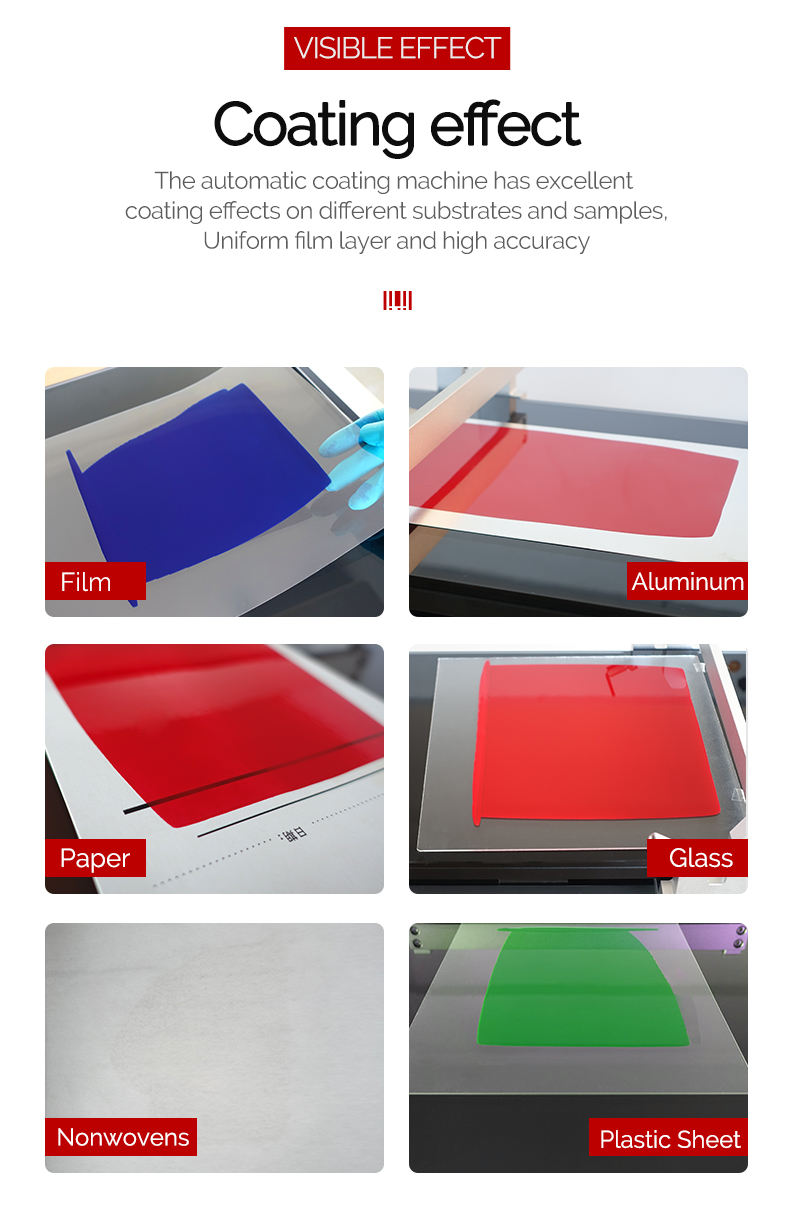

The film coating machine is suitable for coating and sample coating of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabrics.

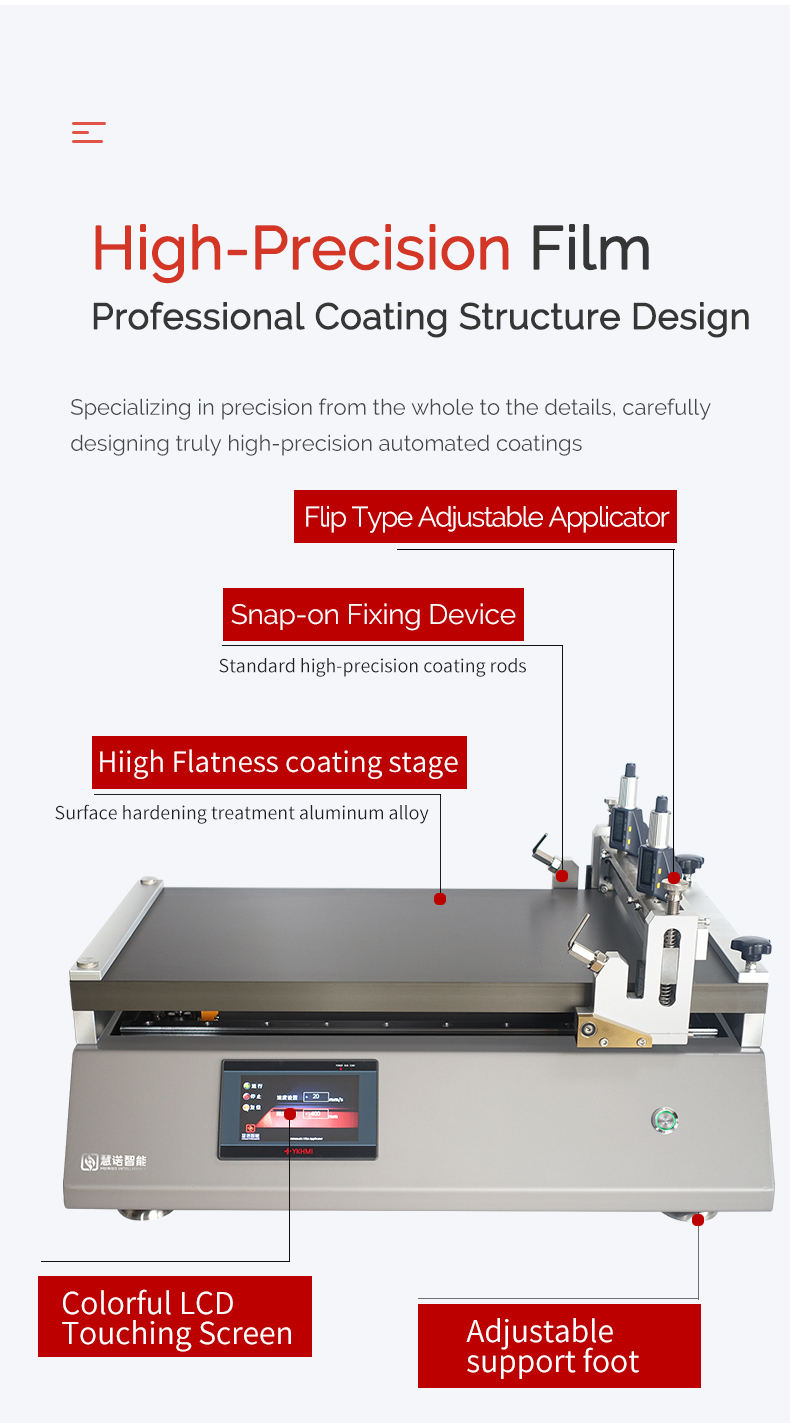

Features
1) The glass countertop is a 3C certified national standard genuine fully tempered glass plate, gold crystal original sheet, heat resistant to 600°C, scratch resistant
2) Big brand differential adjuster, high film thickness control accuracy

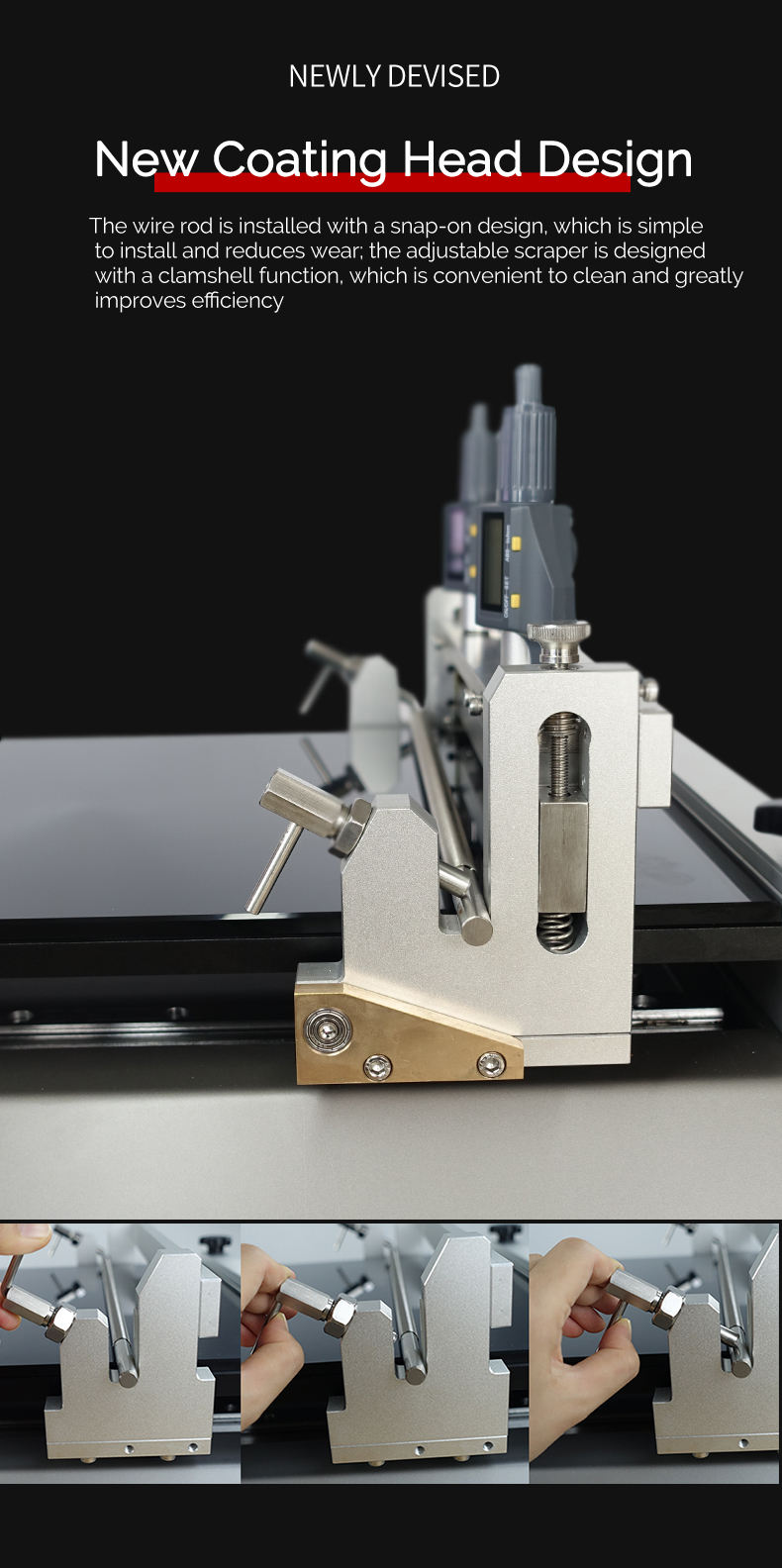

3) Clamshell scraper coating head, easy to clean
4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and high accuracy
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
