Yonghao vacuum 2XZ-0.5 direct-coupled rotary vane Vacuum Pump, low noise and anti-oil return

With low noise design and precision machining, the noise is only 62dBA; equipped with special gas ballast valve to prevent pump oil from mixing and prolong service life. Pumping speed 0.5L/S, ultimate pressure ≤ 6x10-1Pa.

$260.00/set

PromotionLoading...

Coupon

Model：

2XZ-0.5

Certificate

YongHao vacuum

Contact

Details SPEC Con

YongHao vacuum 2XZ-0.5 Direct-coupled rotary vane Vacuum PumpSPEC

YongHao vacuum 2XZ-0.5 Direct-coupled rotary vane Vacuum PumpDetails

YongHao vacuum 2XZ-0.5 Direct-coupled rotary vane Vacuum PumpPacking list

SKU: NB050153

pumping speed: 0.5(1.8)L/S(m3/h)

Ultimate pressure gas ballast: ≤6x 10-1(0.006mbar)(pa)

Ultimate pressure gas town: ≤6 (0.06mbar) (pa)

Rotation speed 50Hz: 1400(r/min)

Rotation speed 60Hz: 1700(r/min)

Operating Voltage: 220V

Motor Power: 0.18Kw

Outer diameter of air inlet: G3/8( Ф12)(mm) KF-16

noise value: 62dB(A)

oil Capacity: 0.6L

Dimension: 440x130x250mm

Gross Weight/Net Weight: 17/16(KG)

accessories: Shockproof vacuum/digital meter with pointer (to be purchased separately)

2XZ-0.5

Direct-coupled rotary vane Vacuum Pump

Product Overview:

This series of pumps is the basic equipment used to pump gas from sealed containers. It can be used alone, or it can be used for booster pumps, diffusion pumps, molecular pump pre-pumps, maintenance pumps, bowl pumps for pre-pumps, vacuum drying, freeze drying, vacuum degassing, vacuum packaging, vacuum adsorption, vacuum forming, coating, food packaging, printing, sputtering, vacuum casting, instruments, instrument support, refrigerators, air conditioning lines and laboratories and other vacuum operations and supporting use.

Features

◆Low noise is achieved through thorough low-noise design and precise processing

◆Specially designed gas ballast valve is prepared to prevent pump oil mixing and extend the use time of pump oil

◆Designed with international similar products, small size, light weight, low noise, and easy start

◆It is equipped with an automatic double anti-oil return safety device, which does not return oil

◆It can be equipped with small diameter adapters, KF interfaces, and flange interfaces.

Product Use:

Freeze dryer, rotary evaporator, vacuum dryer
Centrifugal concentrator, glove box, tube furnace, double row tube
Extraction, coating, and sputtering equipment
A variety of high vacuum backing pumps

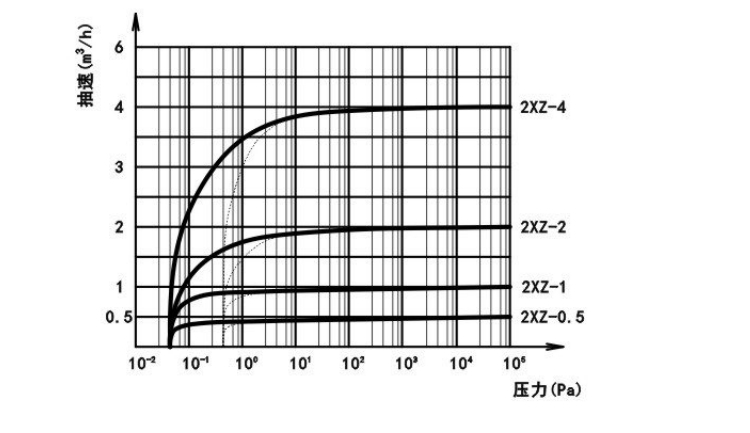

Pumping rate curve

Yonghao Vacuum 2XZ-0.5 Direct Connection Rotary Vane Vacuum Pump Details Figure 1
